X Y
Deduct

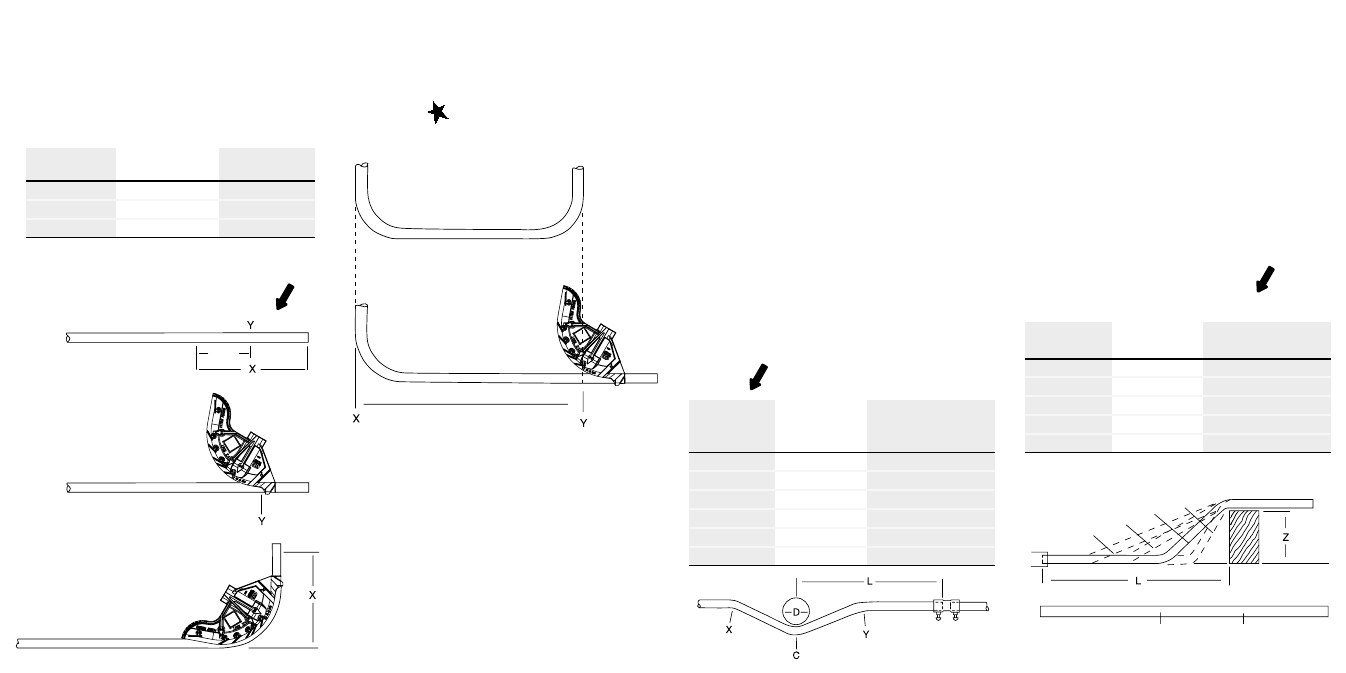

90° OR STUB BENDS:
BENDING ON THE FLOOR:
1. Measure stub height (x)
2. Subtract amount shown in chart from
stub height. Deduct amount is also
noted on bender (example: subtract 5"
for a
1 ⁄ 2 " bender)
3. Mark conduit at final deduct location.
4. Line up mark on conduit with arrow
on bender. Make the bend.
BACK TO BACK BENDS:
1. Measure and mark distance on the
conduit from a fixed point (x) to the
back of the 90° bend (Y).
2. Align the mark (Y) on the conduit with
the star on the bender and make
the bend.
SADDLE BENDS:
This bend is used to avoid an obstruction,
such as a pipe. The most common bend is a
45° center bend and two 22
1 ⁄
2
° outer bends.
Another method of making a saddle bend is
a 60° center bend and two 30°.
1. Measure the height/diameter (D) of the
object to be crossed over.
2. Measure the distance (L) to the object to
be crossed over and add 3 ⁄ 16 " to the
length for each inch of the object height.
3. Mark this distance (C) on the conduit.
It is the center point.
4. Make the outer bend marks (X and Y) at a
distance of 2 1 ⁄ 2 " x the object size. Mark
each from the center mark.
5. Align the center mark (C) with the “notch”
on the bender and make a 45° bend.
6. Align the outer marks (X and Y) with the
arrow and make a 22 1 ⁄ 2 ° bend.
Move Center Make Outside Mark
Obstruction Mark Ahead From Center Mark
Height Distance Distance
1" 3 ⁄ 16 " 2 1 ⁄ 2 "
2" 3 ⁄ 8 " 5"
3" 9 ⁄ 16 " 7 1 ⁄ 2 "
4" 3 ⁄ 4 " 10"
5" 15 ⁄ 16 " 12 1 ⁄ 2 "
6" 1 1 ⁄ 8 " 15"
Conduit EMT RIGID/IMC
Size Deduct Amt. Deduct
1 ⁄ 2 " 5" 3 3 ⁄ 4 "
3 ⁄ 4 " 6" 7"
1" 8" 38 1 ⁄ 2 "
OFFSET BENDS:
Offset bends are most commonly used to
feed into a panel box or to go around an
obstruction. The most common offset angle
is 30° due to the angle multiplier = 2.
1. Measure the height of offset (Z).
2. Measure the distance to obstruction (L)
and add shrink amount (chart below) for
each inch of offset. Mark the distance on
the conduit (X).
3. Using the offset height (Z) times angle
multiplier (chart below) subtract this
amount from the 1st mark and mark this
on the conduit (X).
4. Align the marks with the arrow and
make your bends.
Angle Constant Shrinkage / Inch
of Bend Multiplier of Offset Depth
10" 6.0" 1 ⁄ 16 "
21 1 ⁄ 2 " 2.6" 3 ⁄ 16 "
30" 2.0" 1 ⁄ 4 "
45" 1.4" 3 ⁄ 8 "
60" 1.2" 1 ⁄ 2 "
L + Shrinkage
22 1 ⁄ 2 °
30°
45° 60°
