4 Mounting
4.1 Mounting instructions
If the electronics module is defective, it can be replaced by the
user.
In Ex applications, only an instrument and an electronics
module with appropriate Ex approval may be used.
4.2 Mounting preparations
In general, all oscillators of series SW60 can be interchanged.
If you want to use an oscillator with a different signal output,
you can download the corresponding operating instructions
manual from our homepage under Downloads.
4.3 Mounting steps
Proceed as follows to exchange the electronics module:
1 Switch off power supply
2 Unscrew the housing cover
3 Lift the opening levers of the terminals with a screwdriver
4 Pull the connection cables out of the terminals
5 Loosen the two screws with a screw driver (Torx size T10
or slot 4)
2
1

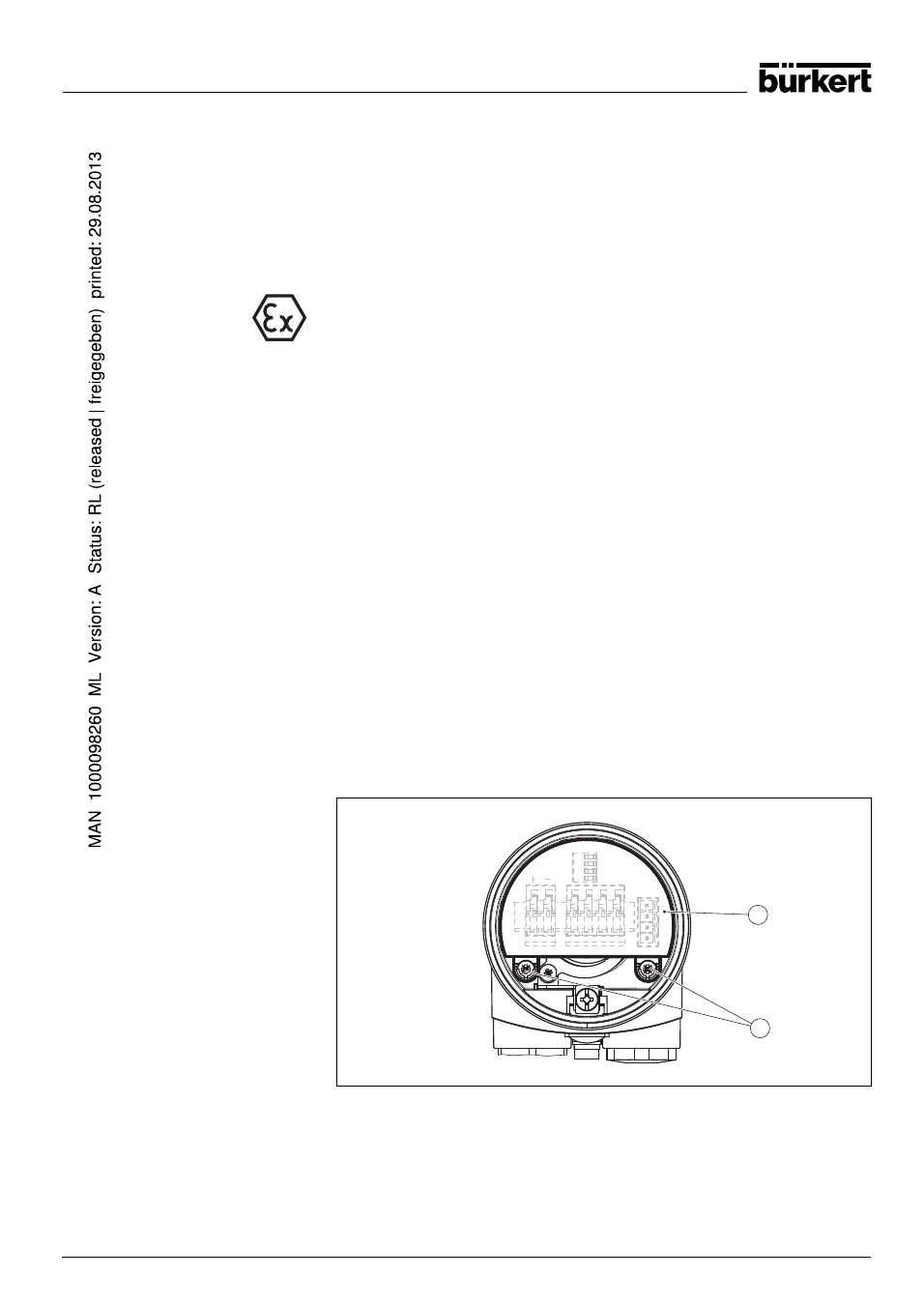

Fig. 1: Loosen the screws
1 Electronics module
2 Screws (2 pcs.)
6 Remove the old oscillator
Mounting steps
6 Electronics module - LEVEL SWITCH 8111, 8112
