SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL
4
ESENS_FULLBORE_05.doc

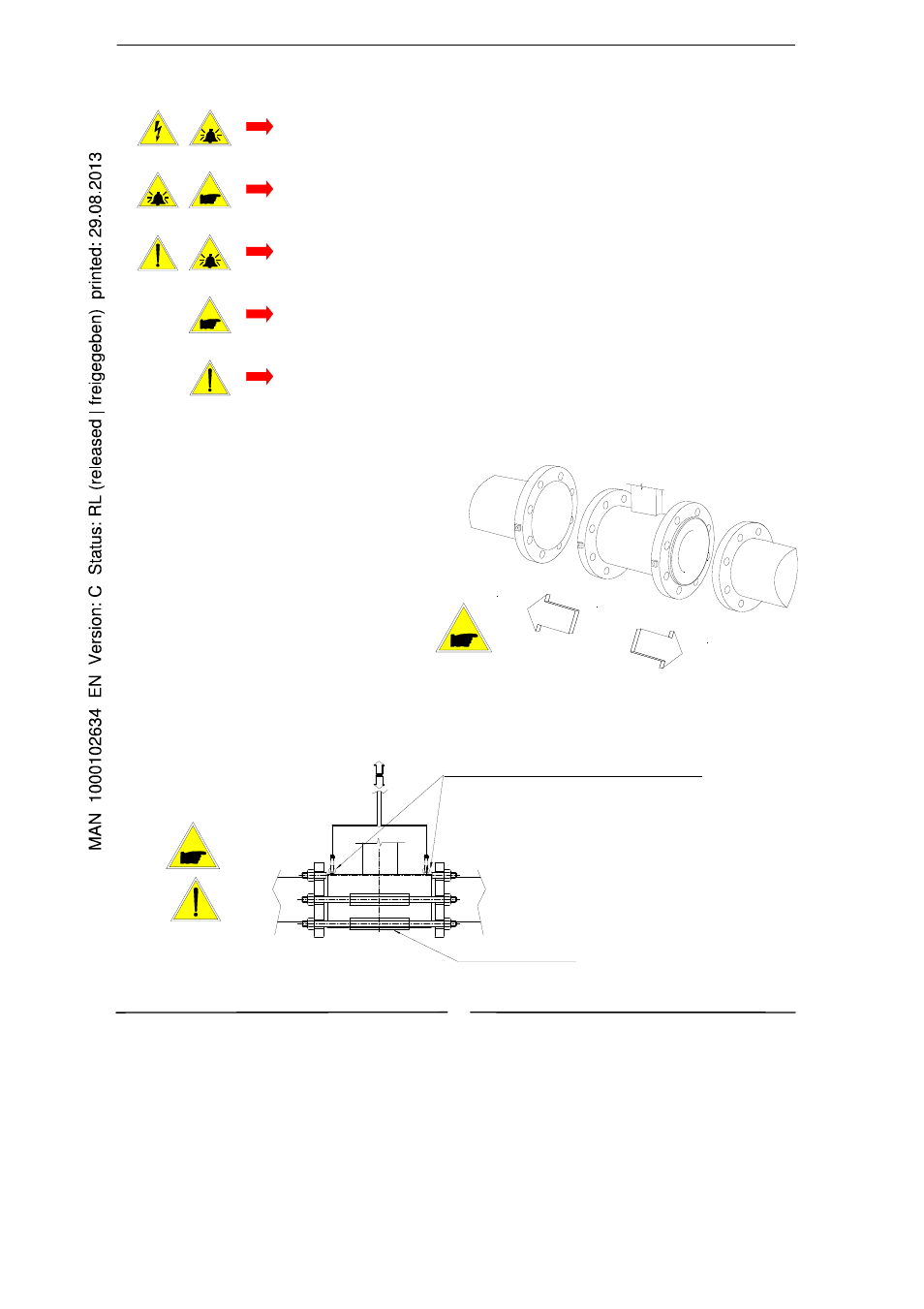

SAFETY
Before installing the sensor check the
direction of the liquid in the piping.
The sign of the flow rate is positive,
when the flow direction is from – to +
as printed on the tag plate.
If the device is mounted in the reverse
normal flow direction, the sign of the
flow rate can be corrected by changing
the sign of the coefficient KA.
GENERAL INFORMATION ON THE SENSORS INSTALLATION
Before using the instrument, always make a secure
connection to the ground
Avoid any attempt to repair the instrument. If the instrument
is not functioning properly, please call the nearest assistance
service
Pay maximum attention during the operations
ATTENTION !!!
DANGER !!!
o
Flow direction
o
Installation (Method recommended for ALL THE SENSOR WITH EYEBOLT)
?
-
+
The eye-bolt are measured to sustain
exclusively the weight of the meter
Centring cylinders
N.B.: For sensor S054 we recommend the use of centring cylinders
