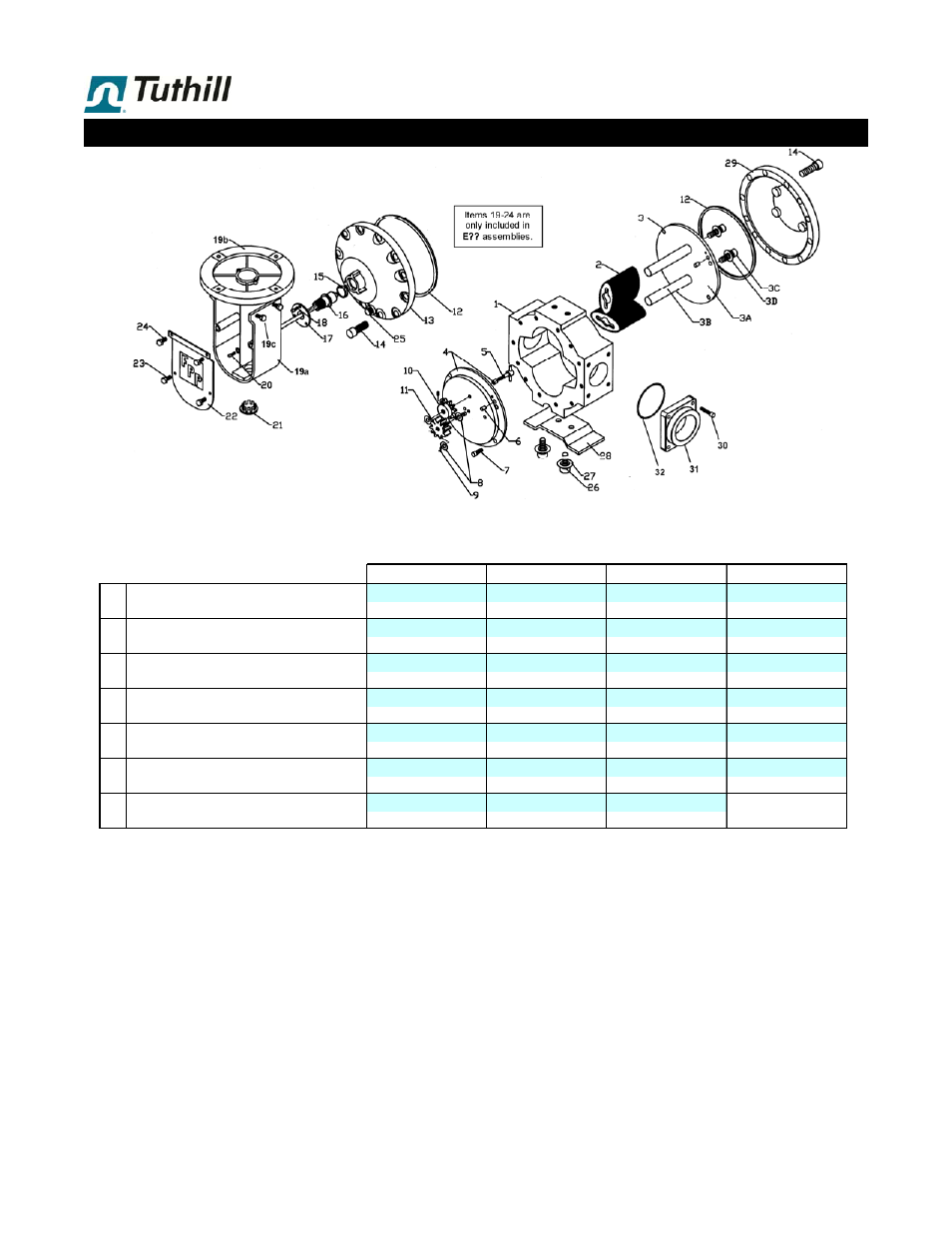

TS Series - Exploded View, Electronic
1 . 13
Torque & Tool Chart
D ES C R IP T IO N
TS10C TS15C TS20C TS30C
Dust cover screw Tool 1/4" nut driver 1/4" nut driver 1/4" nut driver 1/4" nut driver
Hand tight Hand tight Hand tight Hand tight
Retainer plate screw Tool Impact Battery Tool Impact Battery Tool Impact Battery Tool Impact Battery Tool
8/32 19.8in-lbs 8/32 19.8in-lbs 8/32 19.8in-lbs 8/32 19.8in-lbs
Cover screw Tool 1/4" Allen 1/4" Allen 5/16" Allen 5/16" Allen
5/16-18 132in-lbs 5/16-18 132in-lbs 3/8-16 236in-lbs 3/8-16 236in-lbs
Post/Bearing plate screw Tool 5/32" Allen 5/32" Allen 5/32" Allen 5/32" Allen
10/32 31.7in-lbs 10/32 31.7in-lbs 10/32 31.7in-lbs 10/32 31.7in-lbs
Pedestal screw Tool Build-in pedestal Impact Battery Tool Impact Battery Tool Impact Battery Tool
N/A 1/4-20 75.2in-lbs 3/8-16 236in-lbs 3/8-16 236in-lbs
Cover drain plug Tool 1/4" Allen 1/4" Allen 1/4" Allen 1/4" Allen
Hand tight Hand tight Hand tight Hand tight
Companion flange screw Tool 5/16" Allen 1/4" Allen 5/16" Allen
3/8 236in-lbs 5/16-18 132in-lbs 3/8 236in-lbs
18
IT EM
Torque specification
23
24
26
Torque specification
14
Torque specification
Torque specification
7
25
Torque specification
N/A
30
