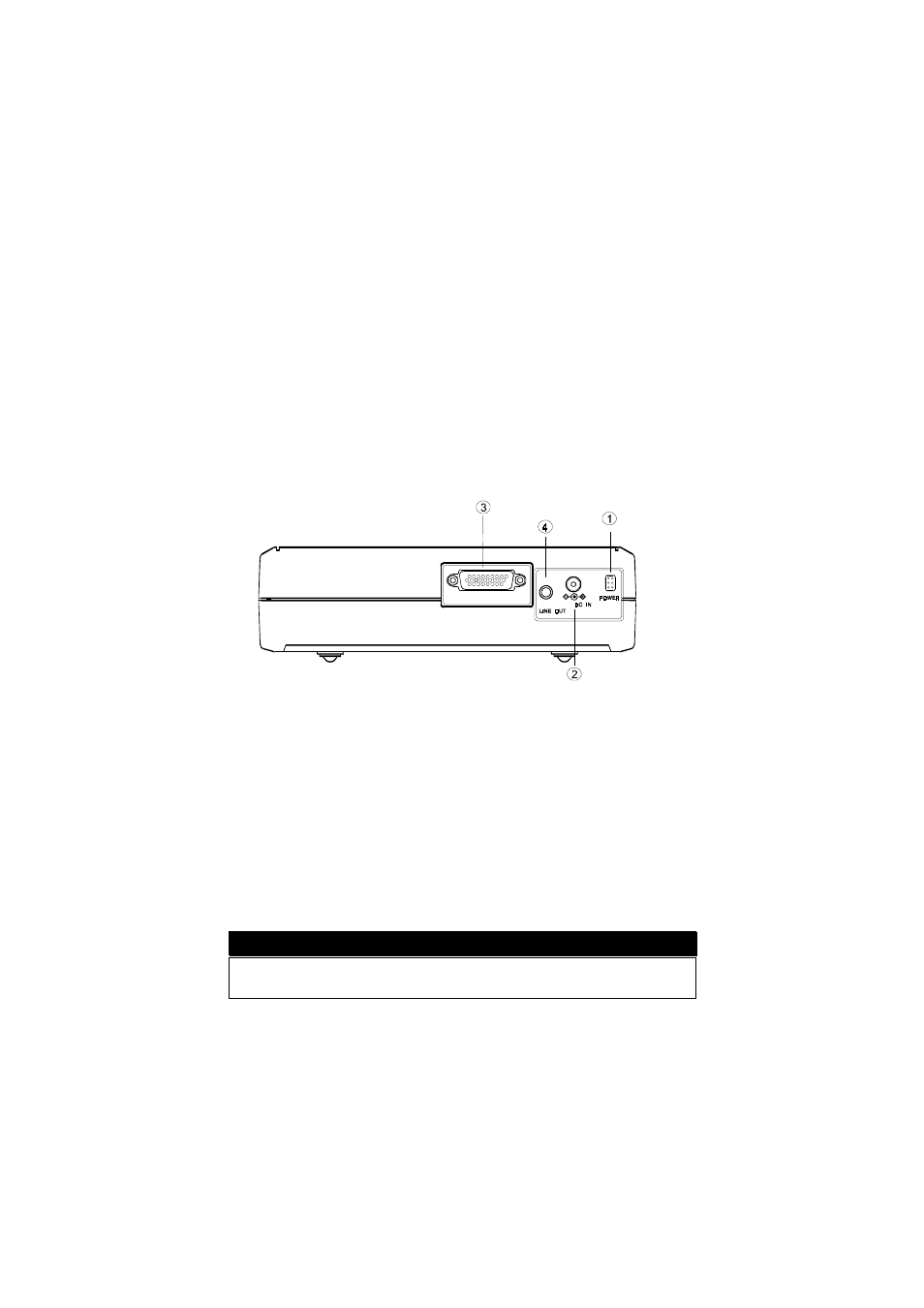

REAR PANEL

1. Power Button: (Optional in some models)

Press the button to manually power on/off the drive when it is powered
by an AC adapter.

2. DC in Jack:

Connect AC adapter into here.

3. Interface Connector:

Connect the PCMCIA interface card or Parallel Port cable into here.

4. Audio Line-Out Jack:

Sends audio signal to an external amplifier.

Figure 2

POWER SOURCE

An AC adapter powers the CD-ROM DRIVE. The POWER LED (on the
front panel) indicates the power status. It always lights up when the power
supply is in working mode.

Connect the AC adapter into the DC IN jack, on the rear panel of the
CD-ROM drive.

Plug the AC adapter into the AC power outlet.

Insert the PCMCIA card. Now the CD-ROM unit is ready.

CAUTION

Only use the AC adapter that is provided with this unit. Using a different
AC adapter may cause serious and permanent damage to the CD-ROM.
