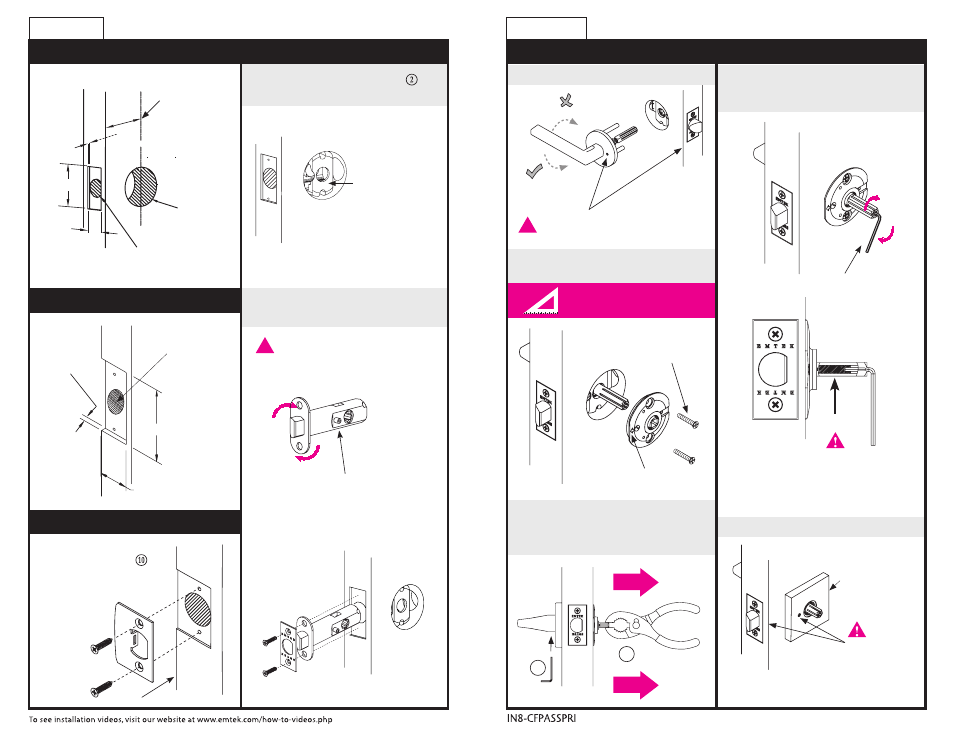

Emtek CF Mechanism Passage & Privacy Locksets - Manual (Page 2)

Arrow points to
door edge.
#8-32 x 1”
Machine Screws E
Make sure the release hole is close to door
edge (applicable only to privacy function).
Make sure the
release hole is
close to door edge
(applicable only to
privacy function).
2 3/8” or 2 3/4”
Backset
2 1/8”
Diameter
Bore
1/8” Deep
2 1/4”
1 “
1” Diameter
Edge Bore
Threaded hole must
face the side of
the door where the
privacy pin will be
installed (only for
privacy function).
2. Door Jamb Prep
3. Install Strike Plate
4. Install Latch 1. Door Prep
Preparation How to Install
Fasten Strike Plate using two
#8 x 3/4” Wood Screws
.
Step 1: Place Plastic Alignment tool
in bore hole.
Step 1: Install Pre-Assembled Trim B. Step 4: Insert short end of 3/32” Allen Wrench O
into spindle as indicated and tighten
approximately one full rotation.
Step 5: Install Rosette F.
Step 2: Install Concealed Fastener Mechanism
D with arrow pointing to door edge.
Step 3: A. Fully extend spindle by pulling it
outwards until it is against the internal stop.
B. Tighten the pre-installed set screw in knob
or lever with 3/32” Allen Wrench O.
Step 2: Insert & fasten Latch L using two
#8 x 3/4” Wood Screws K.
IF NECESSARY, ROTATE LATCH
NOSE SO CURVED FACE WILL HIT
THE STRIKE PLATE WHEN THE
DOOR IS CLOSING. !
!
A
B
Rosette F
1” Diameter
Edge Bore
Alignment Tool C
Check trim alignment before
fully tightening screws. !
Incorrect
Correct
1/16” Deep
1-1/8"
2-3/4" 2 1/4”
1 1/2”
5. Install Trims
3/32” Allen Wrench O
REV. 05/06/2013
Set screw factory
installed inside the
spindle must be
tighten approx.
one full rotation.
