22

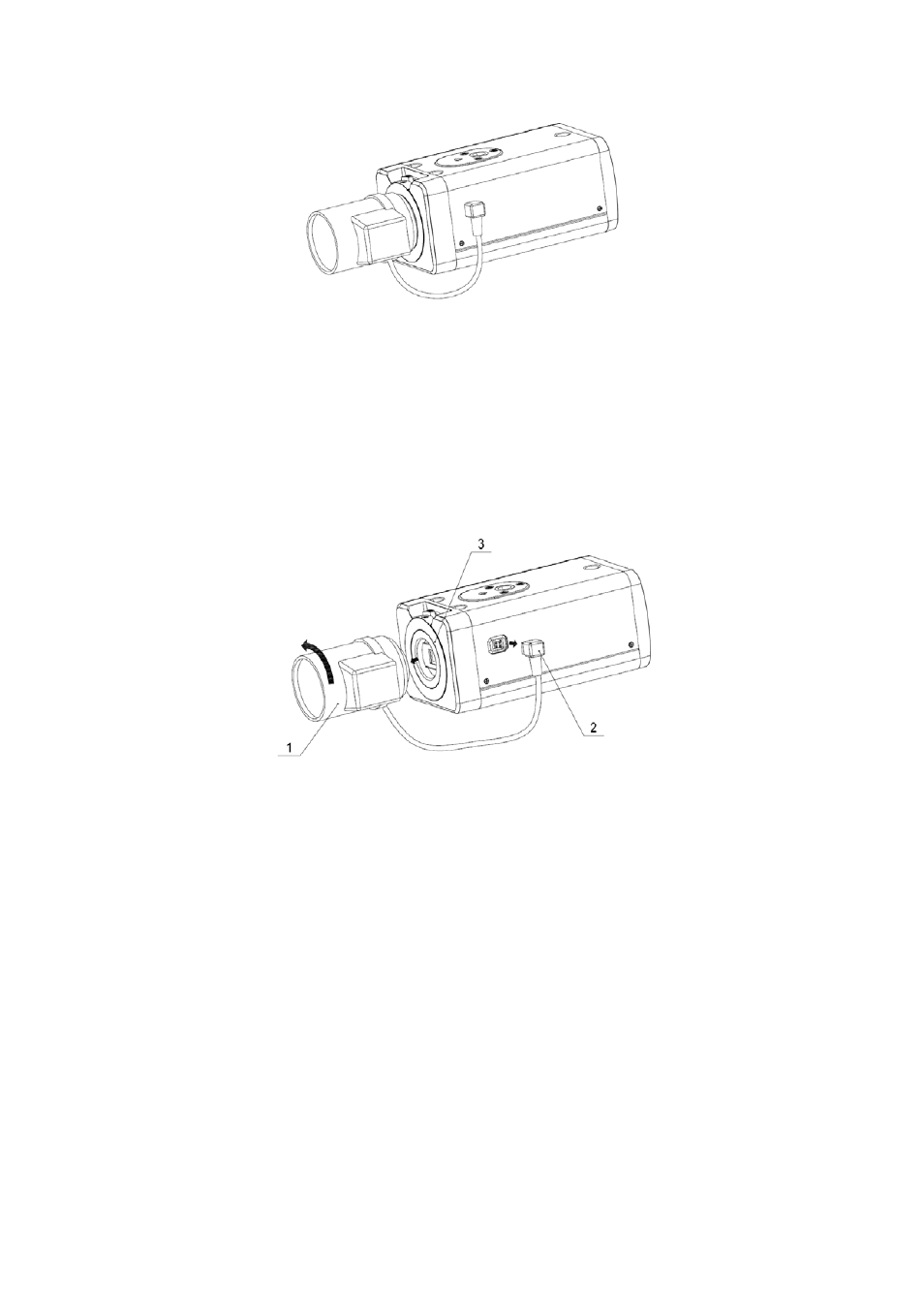

Figure 3-2
3.1.3 Remove Lens
Please follow the steps listed below to remove lens. The interface is shown as in Figure 3-3.
z Turn the lens counter clockwise and then remove it from the camera.
z Unplug the auto lens cable socket from the auto lens connector. If you are using the manual
aperture lens, please skip to the following step.
z If there is no lens, please put the CCD protection cap back to protect the CCD.
Figure 3-3
3.2 SD Card
3.2.1 Installation
Please follow the steps listed below to install SD card. The interface is shown as in Figure 3-4
and Figure 3-5.
z Use the screwdriver to loosen the SD card protection screw in the rear panel, and then
remove the SD card protection cap from the camera.
z Install the SD card to the camera according to the proper installation position.
z Put the SD card protection cap back.
z Use the screwdriver to fix the SD card protection cap screw firmly to secure the SD card
protection cap in the camera.
