13
2 Framework
2.1 Rear Panel

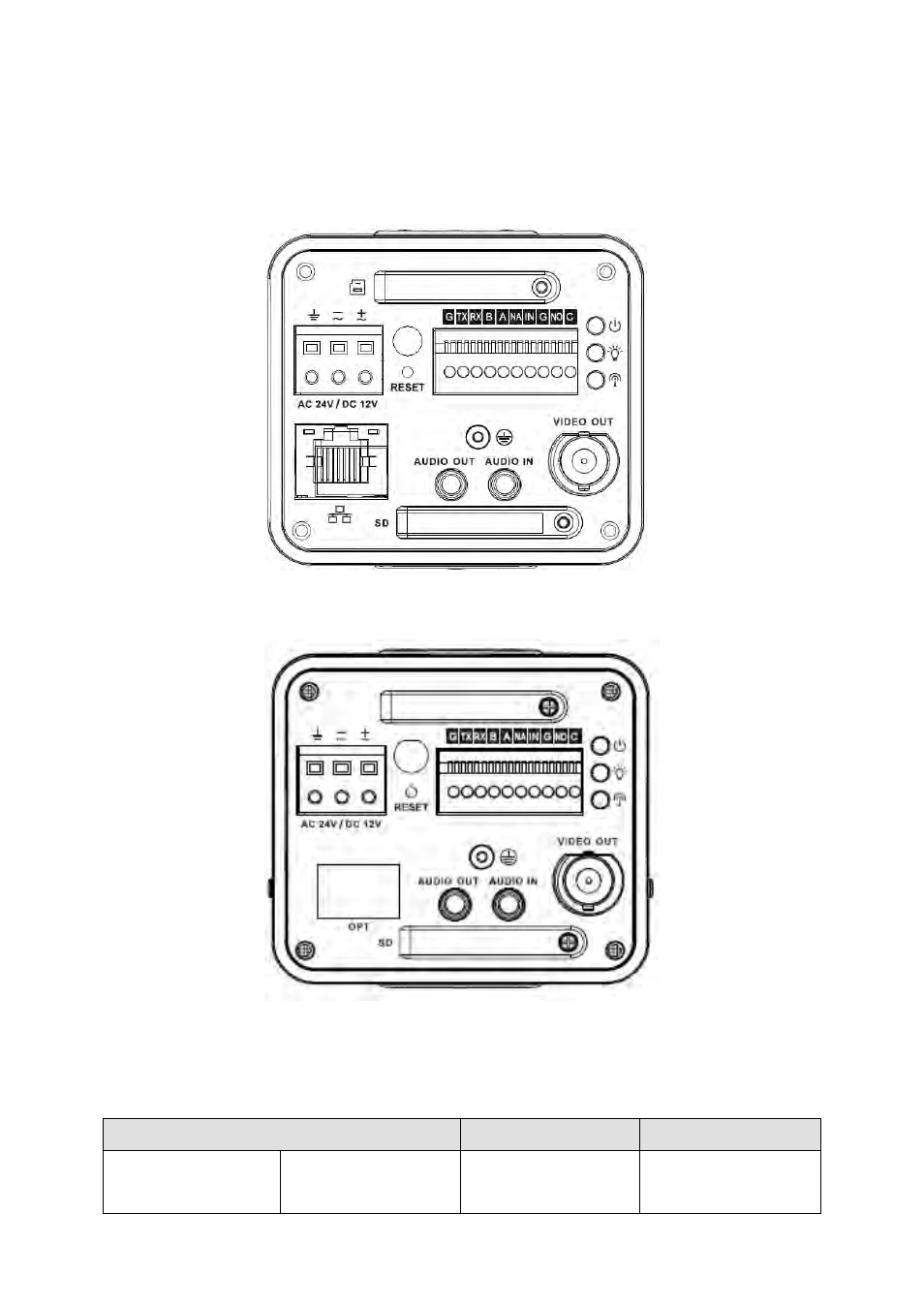

This series IP camera real panel is shown as below. See Figure 2-1.
The rear panel with the network port
The rear panel with the 100M fiber port
Figure 2-1
Please refer to the following sheet for detail information.
Interface Name Connector Function
VIDEO OUT Video output port BNC Output analog video
signal. Can connect to
