4 Operating the appliance

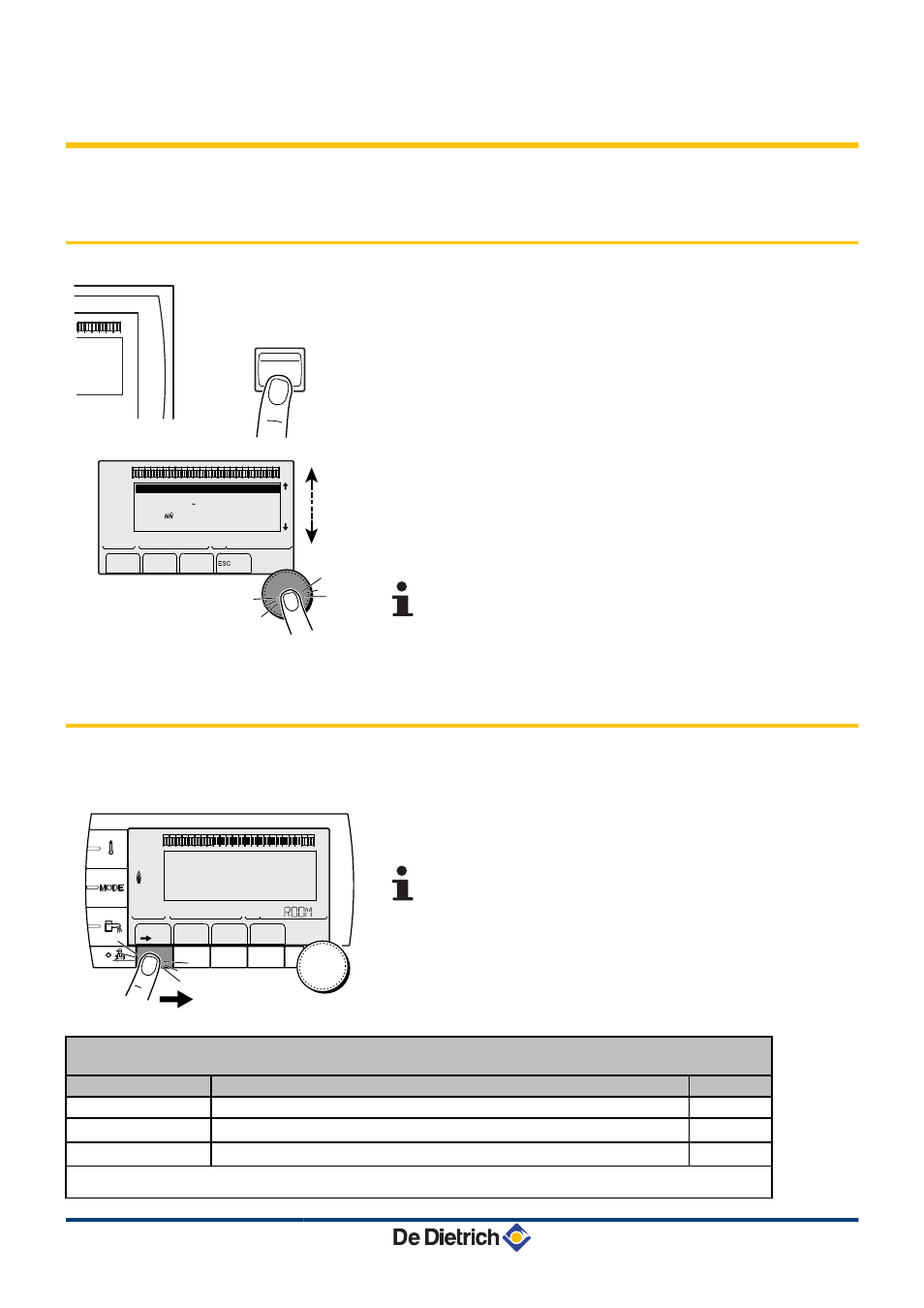

4.1 Putting the appliance into operation
1. Turn on the boiler using the on/off switch.
2. The first time the boiler is powered up, the LANGUAGE menu is
displayed. Select the desired language by turning the rotary
button.
3. To confirm, press the rotary button.
4. Check the water pressure in the installation shown on the control
panel display.
If the water pressure is lower than 0,8 bar, more water
should be added. If necessary, top up the water level in the
heating system (recommended hydraulic pressure
between 1,5 and 2,0 bar).
4.2 Reading out measured values
The various values measured by the appliance are displayed in the
#MEASURES
menu.
1. To access user level: Press the > key.
2. Select the menu #MEASURES.
4
Turn the rotary button to scroll through the menus.
4
Press the rotary button to access the selected menu.
¼For a detailed explanation of menu browsing, refer to
the chapter: "Browsing in the menus", page 14.
User level - Menu #MEASURES
Parameter Description Unit
OUTSIDE TEMP. Outside temperature °C
ROOMTEMP.A (1) Room temperature of circuit A °C
ROOMTEMP.B
(1) Room temperature of circuit B °C
(1) The parameter is only displayed for the options, circuits or sensors actually connected.
(2) The parameter is only displayed if the function is activated (parameter ENERGY METER in the #CONFIGURATION menu)
8 22 24 20
l
0
C003159-A
Français - Deutsch - English -
Italiano - Espanol - Nederlands
- Pycck - Polski - Türk -
bar
1
1
2
2
D
STD
J I
E
0 2 4 6 8 10 12 14 16 18 22 24 20
# F % $ !
LANGUE FRANCAIS
C002286-C
bar
1
1
2
2
D
STD
J I
E
0 2 4 6 8 10 12 14 16 18 22 24 20
# F
AUTO % $
<
: !
SUNDAY 11:45
C002219-D-04
