Attaching the Printer (continued)
2. Slide the printer onto the bracket. When
attached, the security catch “clicks” into place
(Figure 9)
.
3. Secure the printer to the bracket using either the
included #8-32, Torx or Phillips, pan head screw
(Figure 10).
Note: For the printer to slide into place, the
top of the locking screw head must clear the
height of the outermost surface. The length
of the screws varies for each installation and
is to be determined by the user.
Warning: To prevent the printer from
dislodging, the printer must be secured to
the bracket using a security screw. Failure to
do so may cause injury or damage to the
printer.
Note: When the printer is attached to the
bracket, the paper feeds from bottom to top
(Figure 1 and Figure 8).
Security Catch
Figure 9
Locking
Screw Hole
Figure 10
Warranty
The Company warrants that Datamax-O’Neil products are free
from defects in manufacturing materials and workmanship for
one (1) year from date of original purchase to Buyer/Distributor
(OEMs 90 days from the date of purchase). Batteries, cables,
power supplies, and other accessories will be warranted for
ninety (90) days. Datamax-O’Neil makes no other warranties,
expressed or implied, including implied warranties of
merchantability and fitness of purpose.
If you try to repair, disassemble, or change the product in any
way, or use parts not provided by Datamax-O’Neil without prior,
written authorization, all warranties are void. For complete
warranty and service information, see the Warranty Card
included in your original packaging.
No Liability for Negligent Use
In no event shall Datamax-O’Neil be held liable for any
damages whatsoever (including, without limitations, damages
for loss of profits, business interruption, loss of information, or
other pecuniary loss) arising out of negligence in use and care
of the product.
COPYRIGHT © 2010, DATAMAX-O’NEIL

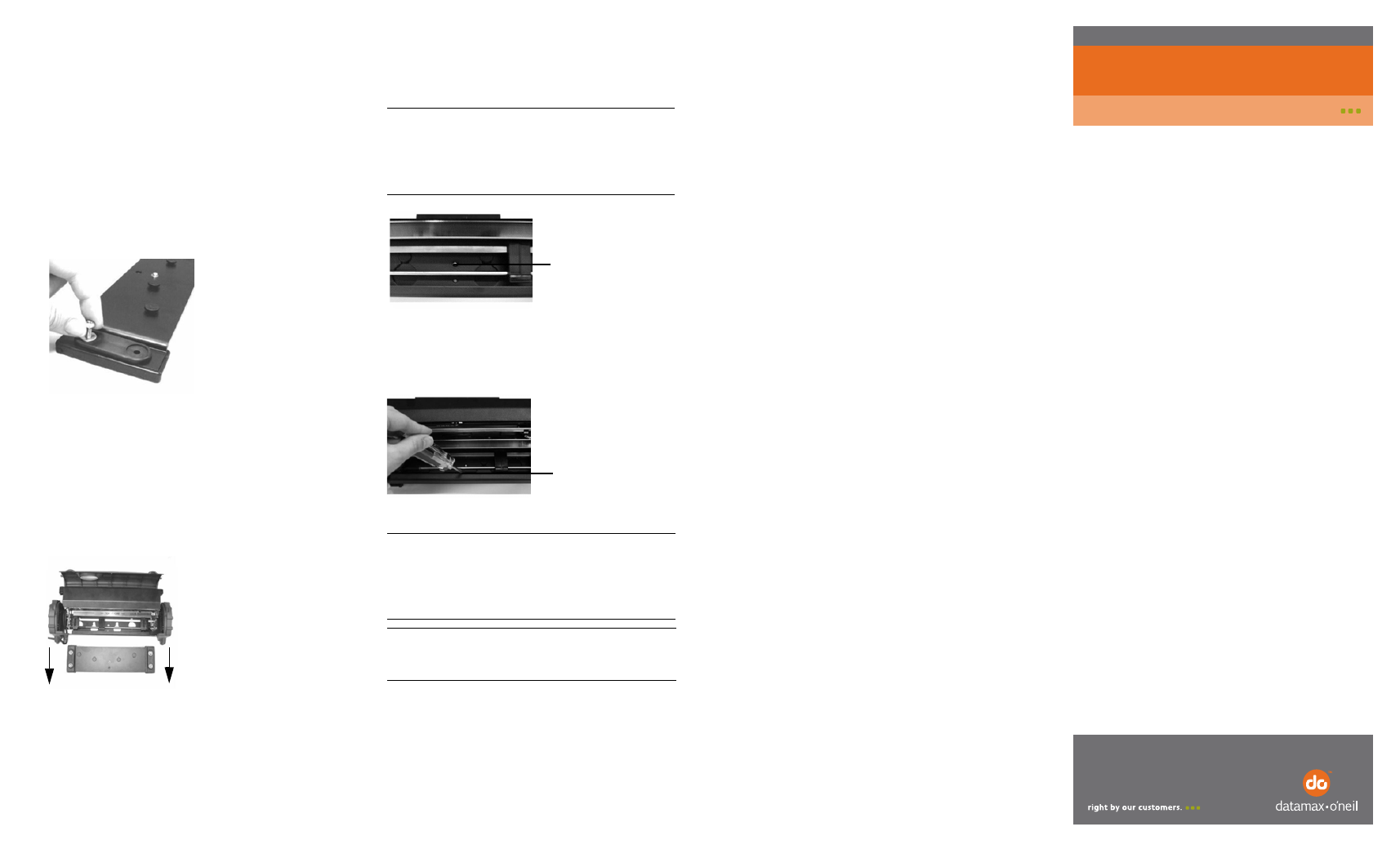

Mounting the Bracket
1. Use the bracket as a template to mark the four
mounting holes on the mounting surface. For
information on mounting and/or installation, see
the Orientation Guidelines in the previous
section.
2. Drill the mounting holes at the marked locations.
3. Attach the bracket to the mounting surface using
#10-24 or #10-32 pan head screws and #10
washers. Thread the screws through the
washers, bracket, foot caps, and mounting holes
(Figure 7). Tighten securely.
4. If needed, use additional mounting hardware to
secure the bracket to the mounting surface.
Proceed to Attaching the Printer.
Attaching the Printer
1. Note the position of the printer in relation to the
bracket (Figure 8).
Figure 7
Figure 8
Horizontal Mount Vibration Bracket
110091-004
Instruction Sheet
