OC 2/3 Swivel Lock Bracket

(220259-000)

Use the Swivel Lock Bracket for the OC 2/3 printers.

Selecting a Location

General Guidelines

Position the bracket and/or printer with enough
room to properly open and close the printer.

Position the bracket and/or printer so it is protected
from environmental elements such as moisture,
tools, and boxes.

Position the bracket and/or printer in a secure area
in normal traffic patterns.

Do not position the bracket above, near, or relative
to the driver’s position as to interfere with normal
driving operations.

Mount the bracket and/or printer away from the
driver’s head to eliminate potential injury in the
event of an accident.

Use only #10 x length 82° flat head screws for
mounting.

Datamax-O’Neil does not accept liability for
improperly mounted or poorly placed swivel locks
and/or printers.

Step 1: Mounting the Swivel Lock

1. Use the swivel lock base as a template to mark the

three mounting holes on the mounting surface. For
guidelines on mounting and/or installation, see
Selecting a Location.

2. Drill the mounting holes at the marked locations.

3. Attach the bracket to the mounting surface using

#10 82° flat head screws. Thread the screws
through the swivel lock and mounting holes.

4. Tighten securely. Use locking washers or lock

tightly for vibration purposes.

5. If needed, use additional mounting hardware to

secure the bracket to the mounting surface.

6. Proceed to Step 2: Attaching the Printer.

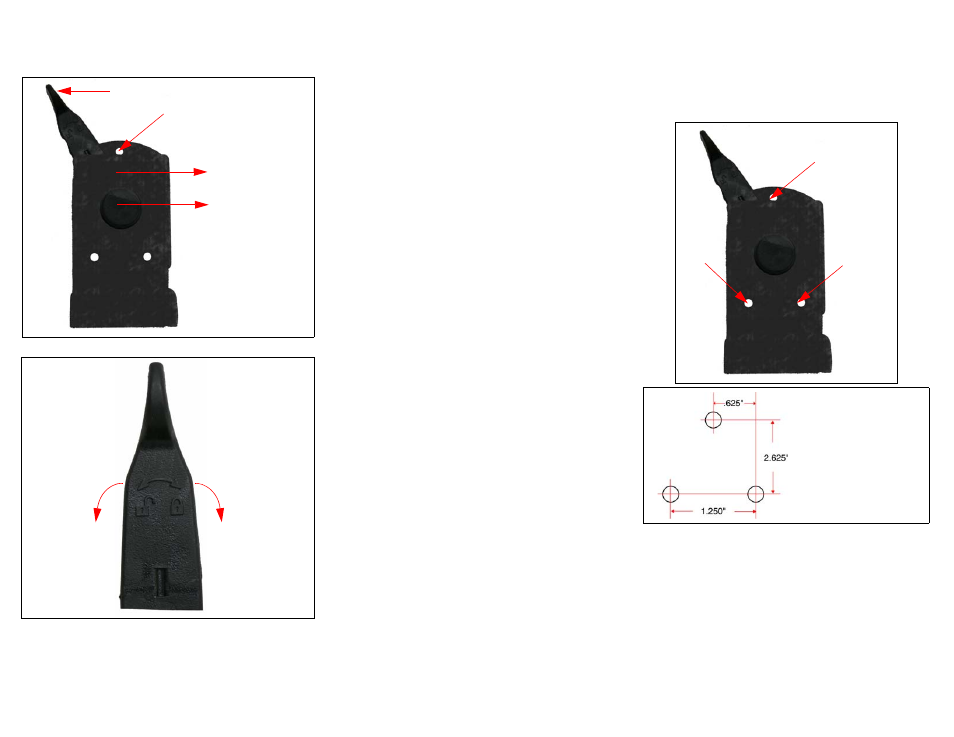

Mounting holes (3)

Locking lever

Swivel lock head

Swivel lock base

Locking lever

Unlocked

Locked

Mounting holes (3)

Mounting dimensions

* Drill holes 7/32” diameter
* Use #10 x length 82°

machine screws (the length

is determined by the

thickness of the mounting

surface)
