Datamax-O'Neil MP Compact4 Mark II Cutter Option User Manual
Page 3
2

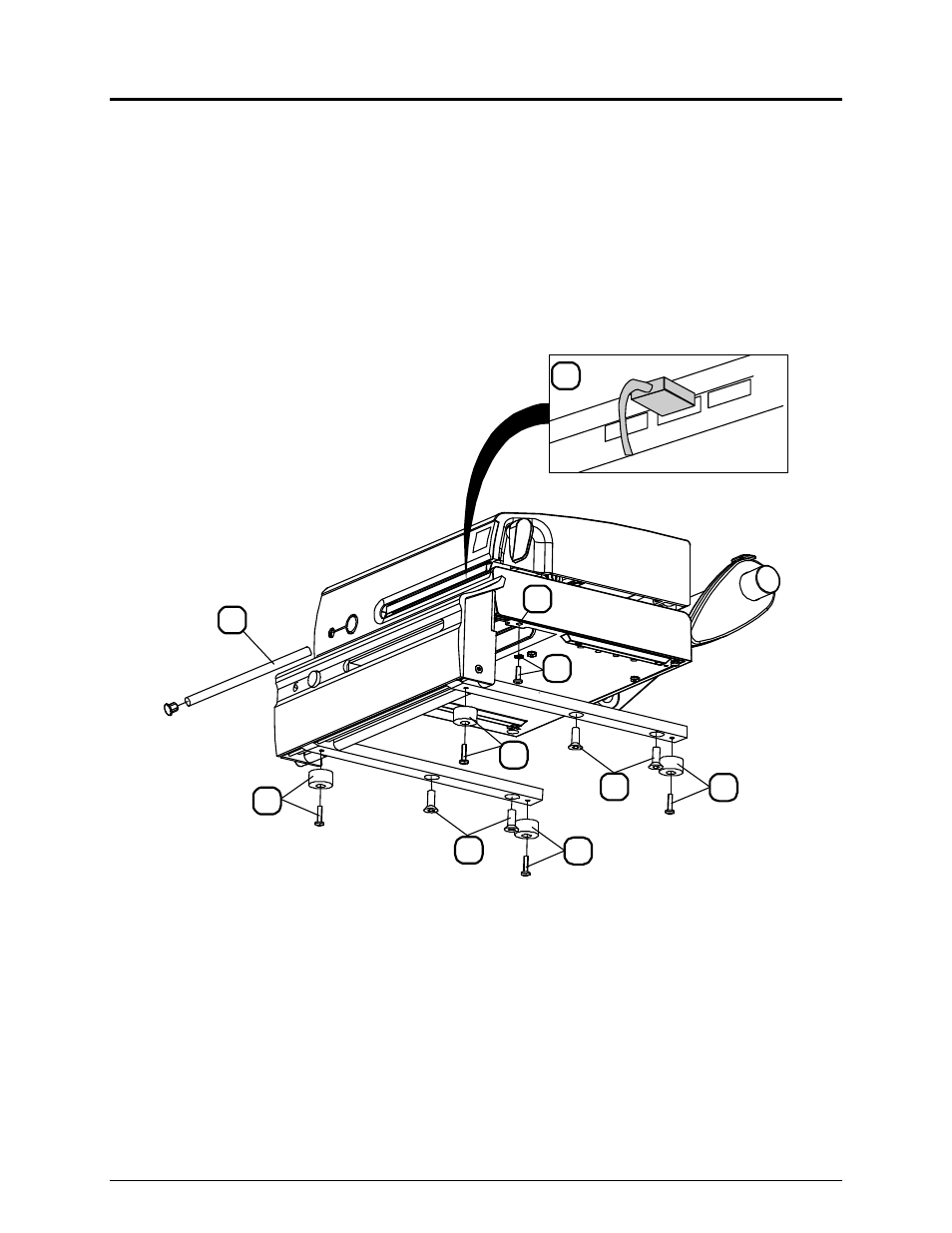

Installation
1. Move the right front rubber foot with screw from the printer to the front right on the cutter.
2. Mount the washer and the screw, to old foot position on the printer.
3. Remove the other feet. Mount the three feet on the cutter with the 3 new M3x12 screws.
4. Remove the front lid by pulling out the front lid shaft. Insert the shaft again.
5. Place the cutter holder under the printer and fasten with the four M5x14 screws.
6. Attach the cutter cable to the contact in the middle.
4
6
1
2
3
5
3
5
3
1
