Attaching the Printer(s)
1. Place the printer's swivel mount block over the
unlocked swivel lock bracket.
2. Facing the printer, move the swivel lock lever from
left to right until it “clicks” into the locked position.
3. Open the printer's cover.
4. Connect the depot charger's DC power jack to the
printer's power port (Figure 8).
5. Close the printer's cover. Verify the cable exits
through the notch in the printer's cover (Figure 9).
Warranty
The Company warrants that Datamax-O’Neil products are free from defects in
manufacturing materials and workmanship for one (1) year from date of
original purchase to Buyer/Distributor (OEMs 90 days from the date of
purchase). Batteries, cables, power supplies, and other accessories will be
warranted for ninety (90) days. Datamax-O’Neil makes no other warranties,
expressed or implied, including implied warranties of merchantability and
fitness of purpose.
If you try to repair, disassemble, or change the product in any way, or use
parts not provided by Datamax-O’Neil without prior, written authorization, all
warranties are void. For complete warranty and service information, see the
Warranty Card included in your printer's original packaging.
No Liability for Negligent Use
In no event shall Datamax-O’Neil be held liable for any damages whatsoever
(including, without limitations, damages for loss of profits, business
interruption, loss of information, or other pecuniary loss) arising out of
negligence in use and care of the product.
COPYRIGHT © 2010, DATAMAX-O’NEIL

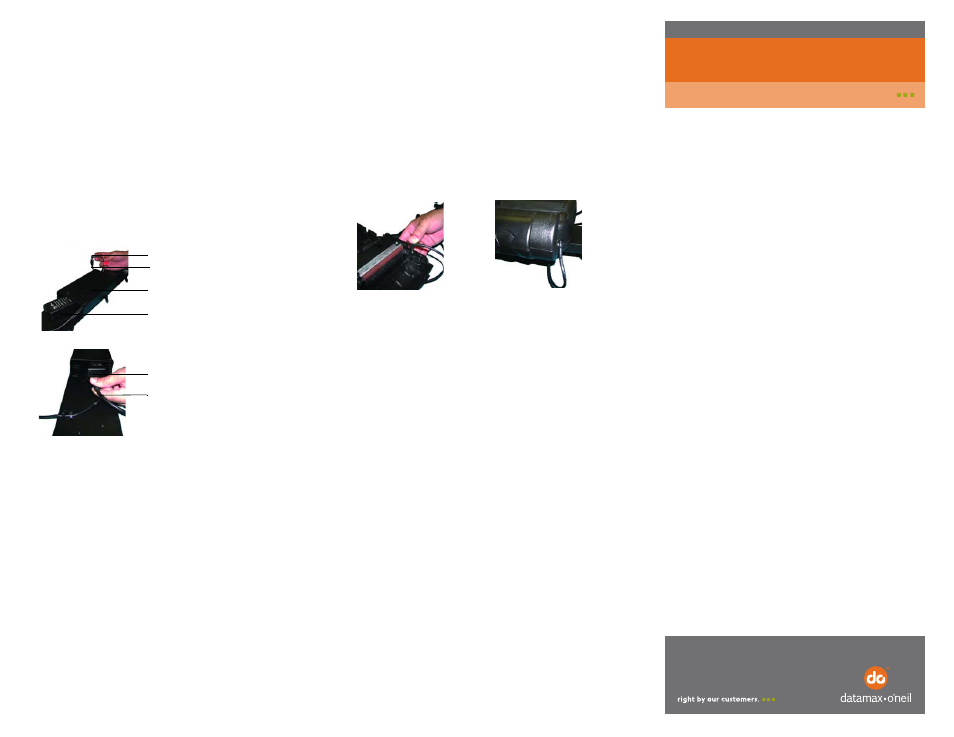

Figure 8 Figure 9
Attaching the Power Supply
Use the following procedure to attach the power
supply to the
depot charger . If the power supply is
already attached to the depot charger , proceed to
Attaching the Printer(s).
1. Insert the AC Adapter into the depot charger 's AC
Adapter cradle (Figure 6).
2. Plug the AC Adapter's connector into the depot
charger 's power supply cable socket (Figure 7).
3. Plug the Grounded AC Adapter’s connector into
the AC Adapter's socket (located on the AC
Adapter cradle). Verify the 3-prongs of the
Grounded AC Adapter's connector match the AC
Adapter's socket (Figure 7).
4. Plug the Grounded AC Adapter cord to an outlet.
5. Proceed to Attaching the Printer(s).
Figure 6
Figure 7
Depot charger's power supply
cable socket
Depot charger's AC Adapter
cradle
AC Adapter
Grounded AC Adapter
AC Adapter 3-prong socket
AC Adapter's connector
MF4 Depot Charger
110148-003
Instruction Sheet
