Mounting the Depot Charger
If the depot charger will be mounted on a vertical
surface or on a wall, use the following procedure to
mount the charging dock:
1. Remove rubber bumpers from the depot charger
feet's and AC Adapter cradle.
2. Locate the mounting holes. There are two
mounting holes on either end of the depot charger
(Figure 3) and two mounting holes in the middle
of the
depot charger (Figure 4).
3. Use the depot charger as a template to mark the
mounting holes on the mounting surface
(Figure 5). For information on mounting, see the
Guidelines in the previous section.
4. Drill the mounting holes at the marked locations.
5. Attach the depot charger to the mounting surface
as follows:
Drywall Surface: Use #8 - #10 toggle bolts (not
included).
Wood Surface: Use #10 x ¼” wood screws.
#10 x ¼” wood screws cannot be used on any
other type of surface.
6. Verify the depot charger is level.
7. Thread the screws through the washers, depot
charger , and mounting holes and tighten securely.
8. Proceed to Attaching the Power Supply.
Warning: Use caution when drilling the
mounting holes and when mounting the
depot
charger onto a wall.
Figure 3 Figure 4
Figure 5
Guidelines
General Guidelines
• The MF4 Depot Charger is designed to be used as a
desktop or wall mounted unit.
• Keep the charging dock in a cool, dry place, away from
direct sunlight, high temperature, and moisture.
• The depot charger takes approximately 3-4 hours to
charge each printer. If multiple printers are attached, the
charge time remains at approximately 3-4 hours per
printer; however, charge times may vary.
• The depot charger is not recommended for use with the
MF2t Smart CardReader (SCR) or MF4t Smart
CardReader (SCR) printers.
• When connected to the depot charger, the printer(s) may
not print.
Safety Guidelines
•
Position the depot charger with enough room to properly
open and close the printer(s); position the depot charger
so it is protected from environmental elements such as
moisture, tools, and boxes; and position the depot
charger in a secure area in normal traffic patterns.
• Do not operate the depot charger if it appears damaged.
• To reduce risk of electric shock, unplug the depot charger
before cleaning.
• Batteries become warm to the touch during charging. If
the battery becomes too hot to touch, discontinue
charging and contact Datamax-O’Neil.
• Use of any charger or battery not approved by Datamax-
O’Neil for use with their printers could cause damage to
the batteries or printer and will void the warranty.
• Datamax-O’Neil does not accept liability for improperly
mounted or poorly placed printers and/or depot charger.

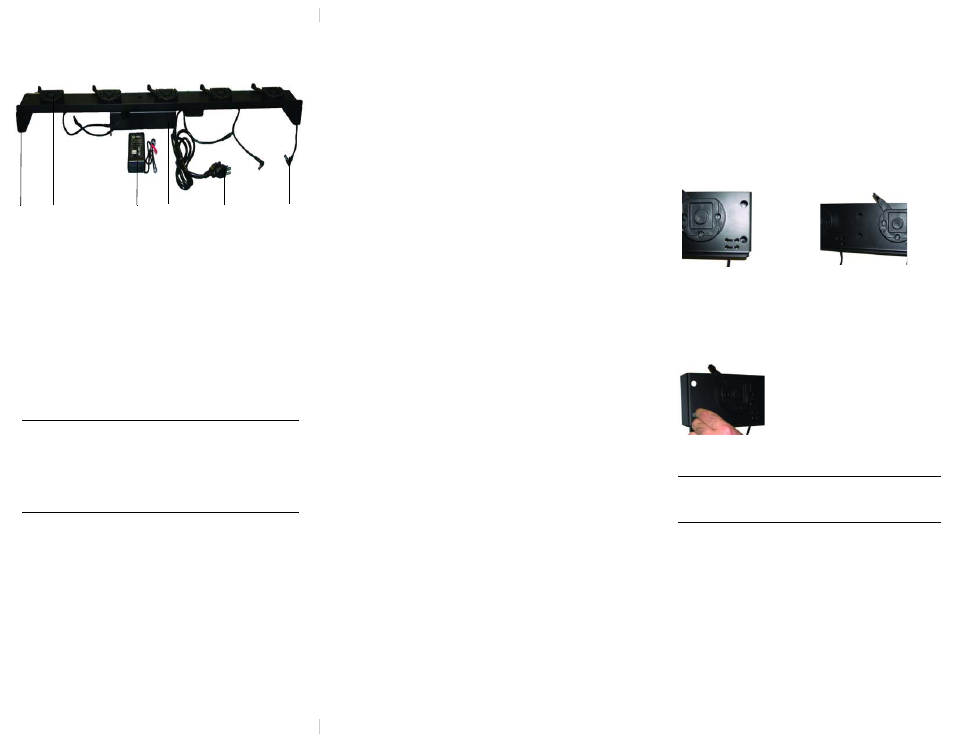

MF4 Depot Charger
(220226-000)
Parts List
(1) MF4 Depot Charger
(1) High capacity AC adapter
(1) Grounded AC power cord
(7) #10 x 1¼” wood screws (not shown)
(7) #10 flat washers (not shown)
#8 - #10 toggle bolts [not included; length to be
determined by the user
Note: Use #10 x 1¼” wood screws to mount the
charging dock to wood surfaces only. The
#10 x 1¼” wood screws cannot be used to mount
the depot charger to any other type of surface.
Use #8 - #10 toggle bolts if you are mounting the
depot charger to drywall.
DC
Power
Jack Grounded
AC Power
Supply
Cord AC
Adapter AC
Adapter
Cradle Swivel
Lock Foot
Figure 1
