Datamax-O'Neil M-Class Mark II Present Sensor Option User Manual
Page 3
1
Contents of the Present Sensor Kit
This kit contains the following item:
Present Sensor Option
Follow the steps listed below to install this option.

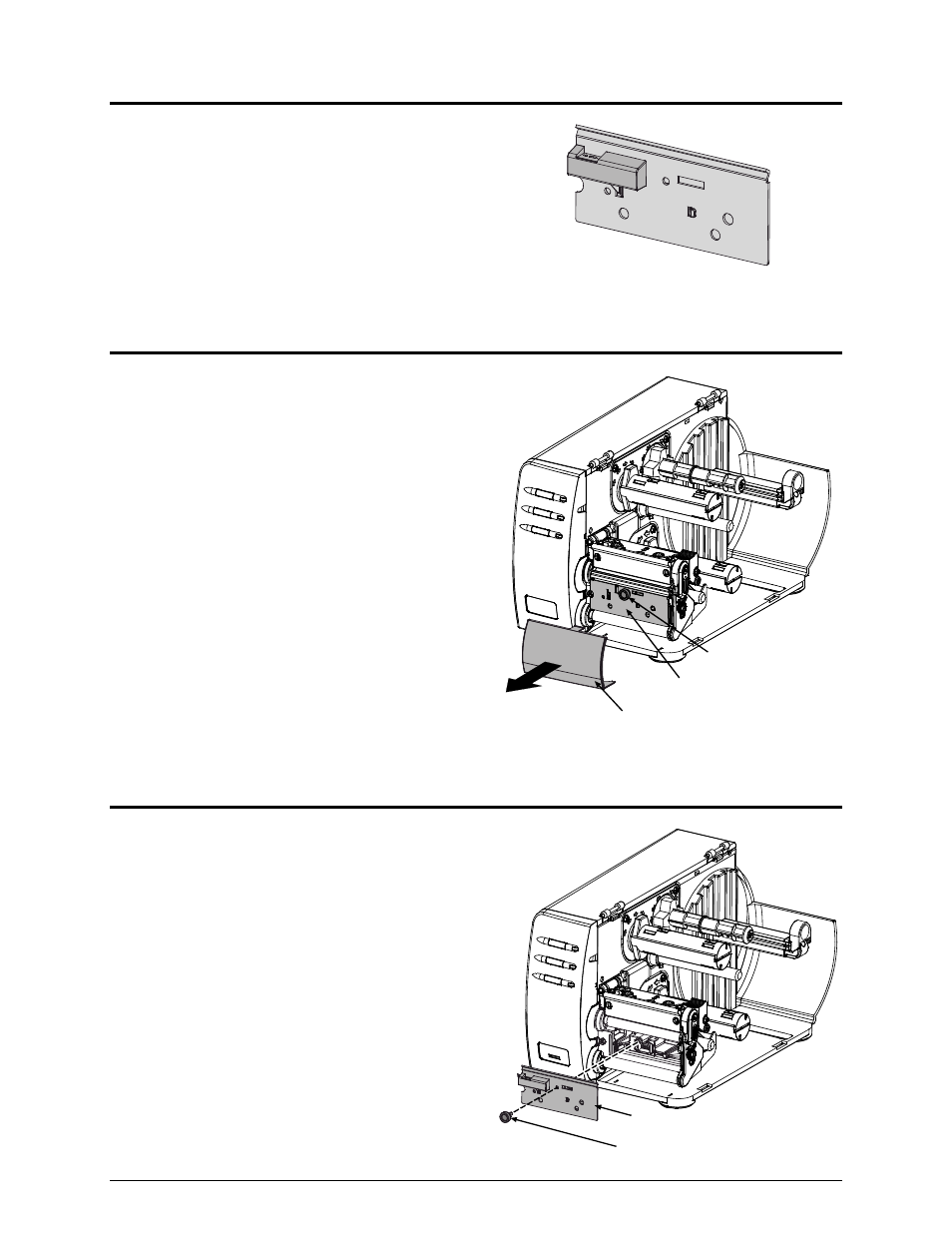

Step 1: Preparing the Printer
Turn ‘Off’ the power switch and unplug the
printer.
Open the cover. Remove any installed media
from the printer.
Remove the Fascia by gently pulling it forward.
Loosen and remove the Thumbscrew, then
remove the Tear Plate.
Fascia
Tear Plate
Thumbscrew
Step 2: Installing the Present Sensor
Position the Present Sensor for mounting on the
front of the printer.
Using the Thumbscrew, secure the Present
Sensor to the printer, as shown.
This completes the installation process.
Proceed to Loading Media.
Thumbscrew
Present Sensor
