Start with the right media – Datamax-O'Neil M-Class Mark II RFID Option User Manual
Page 4
2
Start with the Right Media
Use RFID media that meets the specifications required by the encoder type:

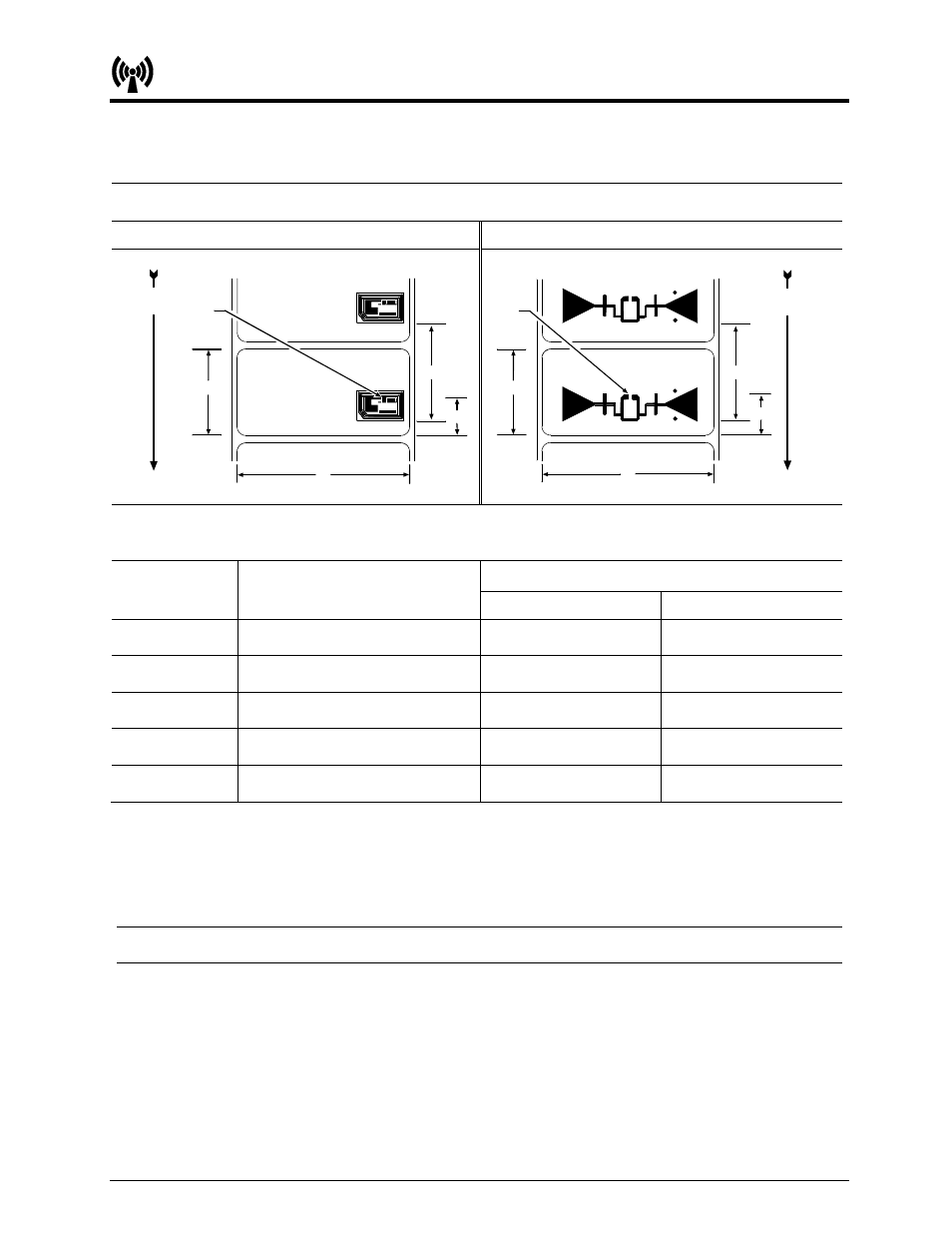

Smart Label and Tag Requirements
[1]
HF Media Layout
[2]
UHF Media Layout
C
D
E
B
A
Forward
Movement
C
D
E
B
A
Forward
Movement
Definitions
[3]
Designator Description
Dimension
Inches Millimeters
A Label
Width
4.00
101.6
B
Label Lengths
2.00
50.8
C
Chip Location Tolerance
± 0.05
± 1.3
D
Label Pitch (minimum)
1.75
44.4
E
Chip Inlay Location
1.1
27.9
[1]
See the Operator’s Manual for additional standard media requirements.
[2]
The HF RFID Chip Inlay Location can be left, right, or center justified.
[3]
Definitions referenced by looking down onto the labeling side of the media, and from the leading edge of the label (or
tag) as it moves forward through the printer.
Note:
If you have questions selection, contact a Media Representative at (407) 523-5650.
