Datamax-O'Neil I-Class Mark II GPIO Option User Manual

Page 5

Text mode
Original mode

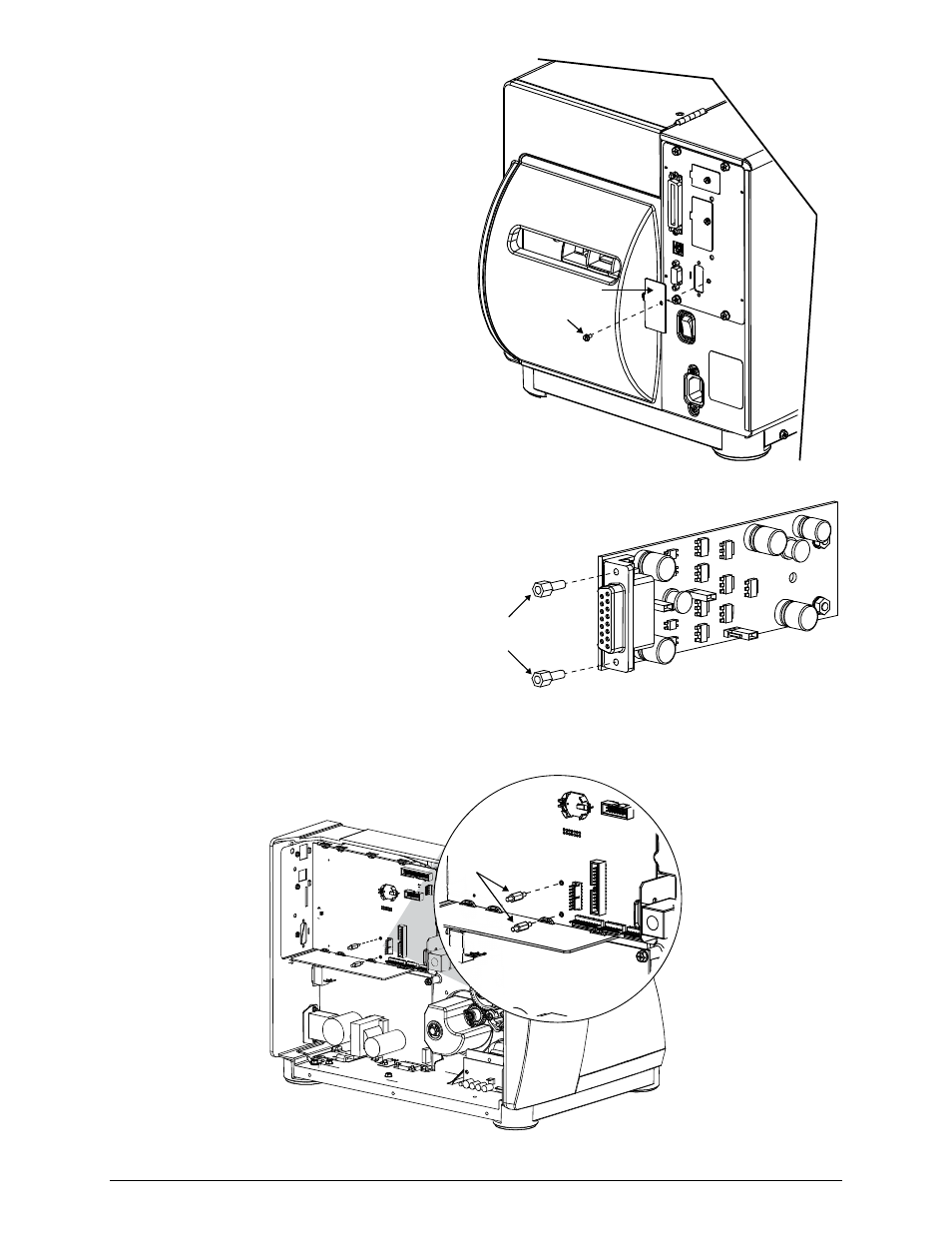

C) Remove the 5mm Screw and Cover

Plate from the rear of the printer.

D) Remove the two Jack Screws from

the GPIO Card, (these will be re-
installed later in the procedure).

Cover Plate

5mm Screw

Jack

Screws

E) Install the two 6mm Standoffs into the main board in the locations shown.

6mm

Standoffs
