5mm nuts – Datamax-O'Neil I-Class Mark II SDIO_USB Host Option Installation User Manual
Page 6
4

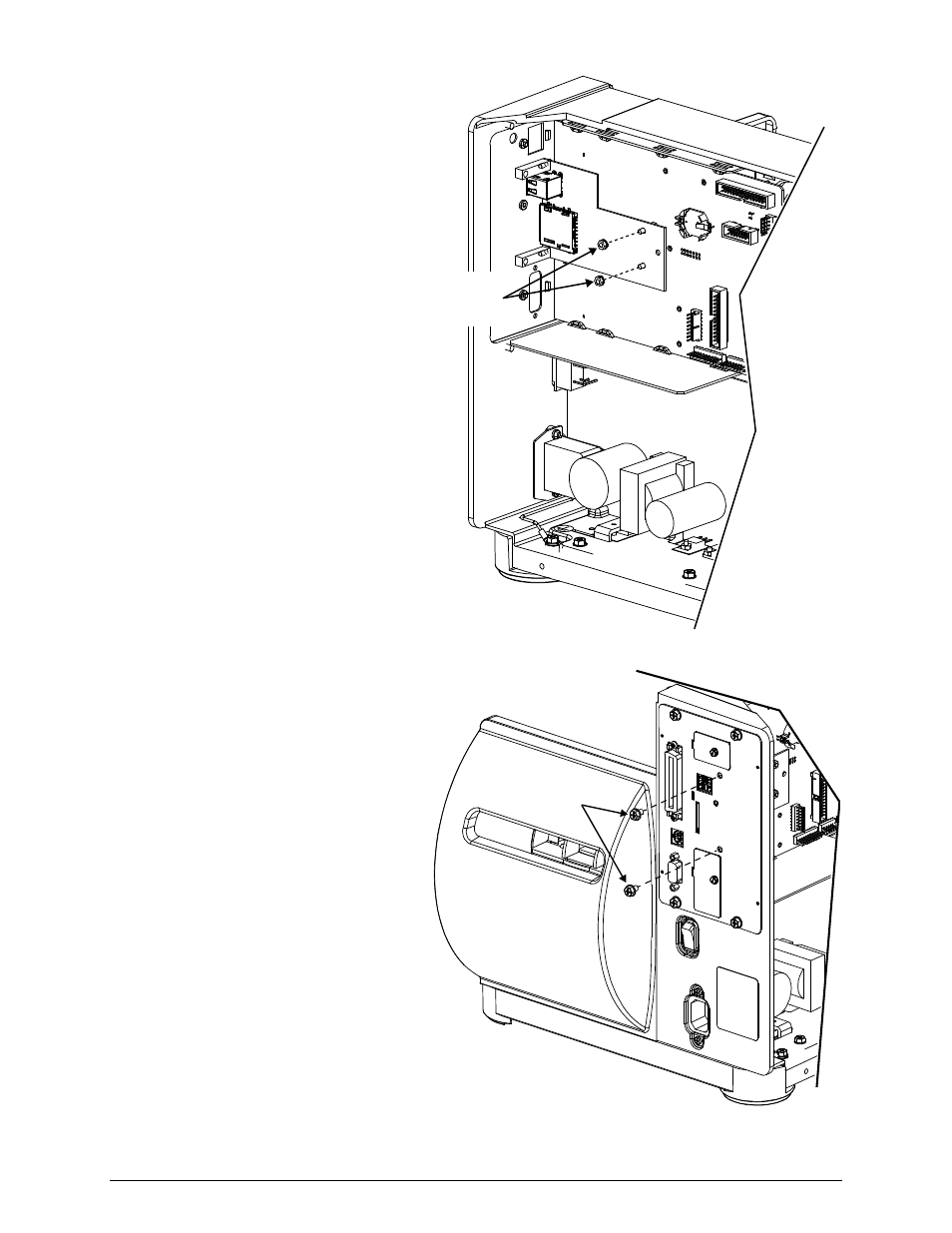

E) Install the SDIO/USB Host Card
into the printer. First insert the
“Port” end into the cut-out in the
rear of the printer. Then pivot
the SDIO/USB Host Card onto
the two Standoffs.
F) Install the two 5.5mm Nuts.
5.5mm
Nuts
G) Install the two Philips Screws
through the back of the printer
as shown.
H) SDIO/USB Host Card installation
is complete. Re-install the
printer’s cover.
Philips
Screws
