Datamax-O'Neil I-Class Mark II SDIO_USB Host Option Installation User Manual
Page 3
1
Overview
This document describes the installation and use of the SDIO/USB Host option for the I-
Class Mark II printer. Follow the steps to begin installing the option.
CAUTION
For safety and to avoid equipment damage, turn OFF the power switch and
unplug the AC power cord from the printer before starting this installation.
Contents

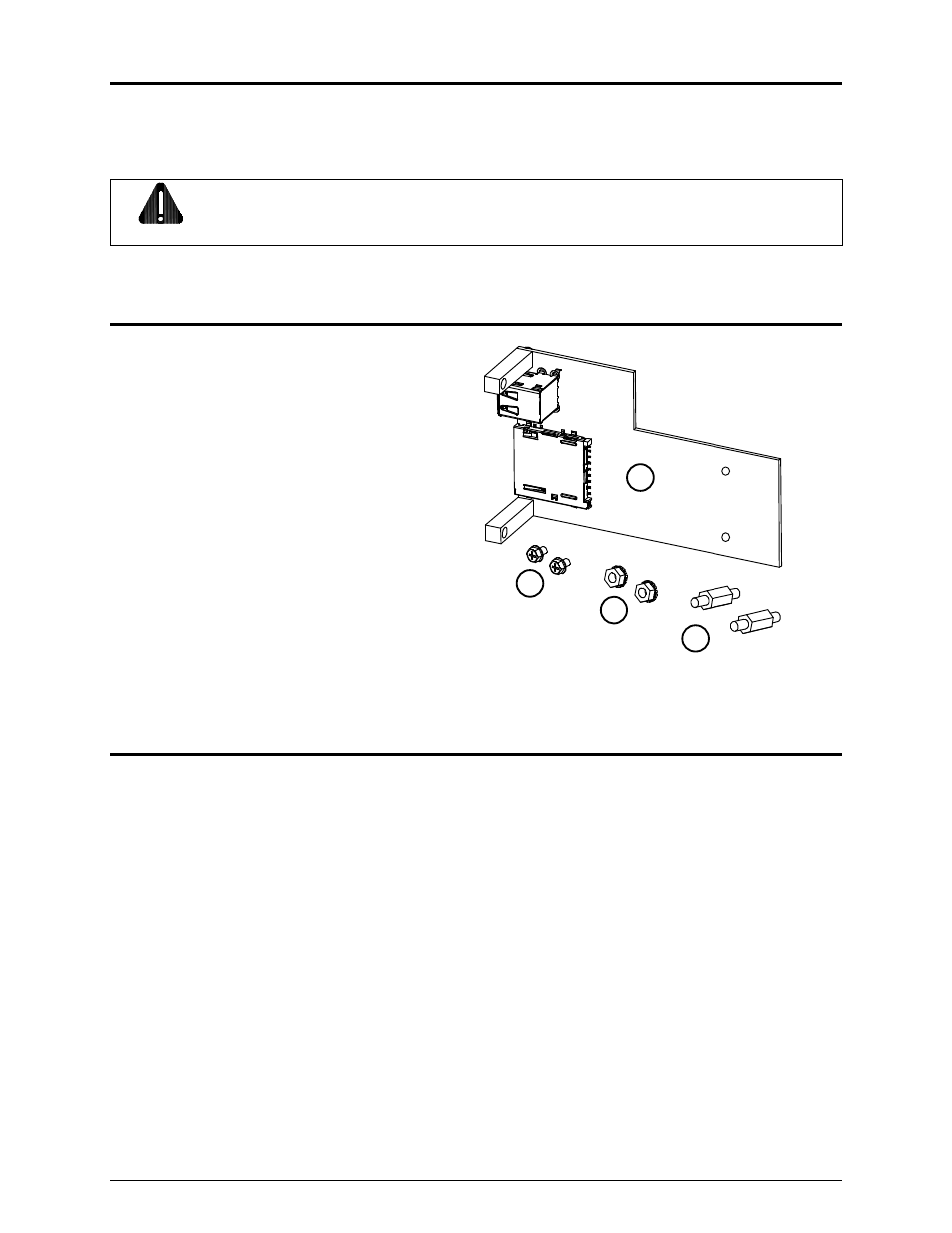

This kit contains the following items:
SDIO/USB Host Card Assembly
Screw, Philips M4 (2)
Locking Nut, 5.5mm (2)
Standoff, 6mm Hex (2)
1
3
4
2
Tools Required
To install this option, you will need:
Philips screwdriver
5mm Hex Driver
5.5mm Hex Driver
6mm Hex Driver
