Datamax-O'Neil I-Class Twinax_Coax Option User Manual
Page 4
2

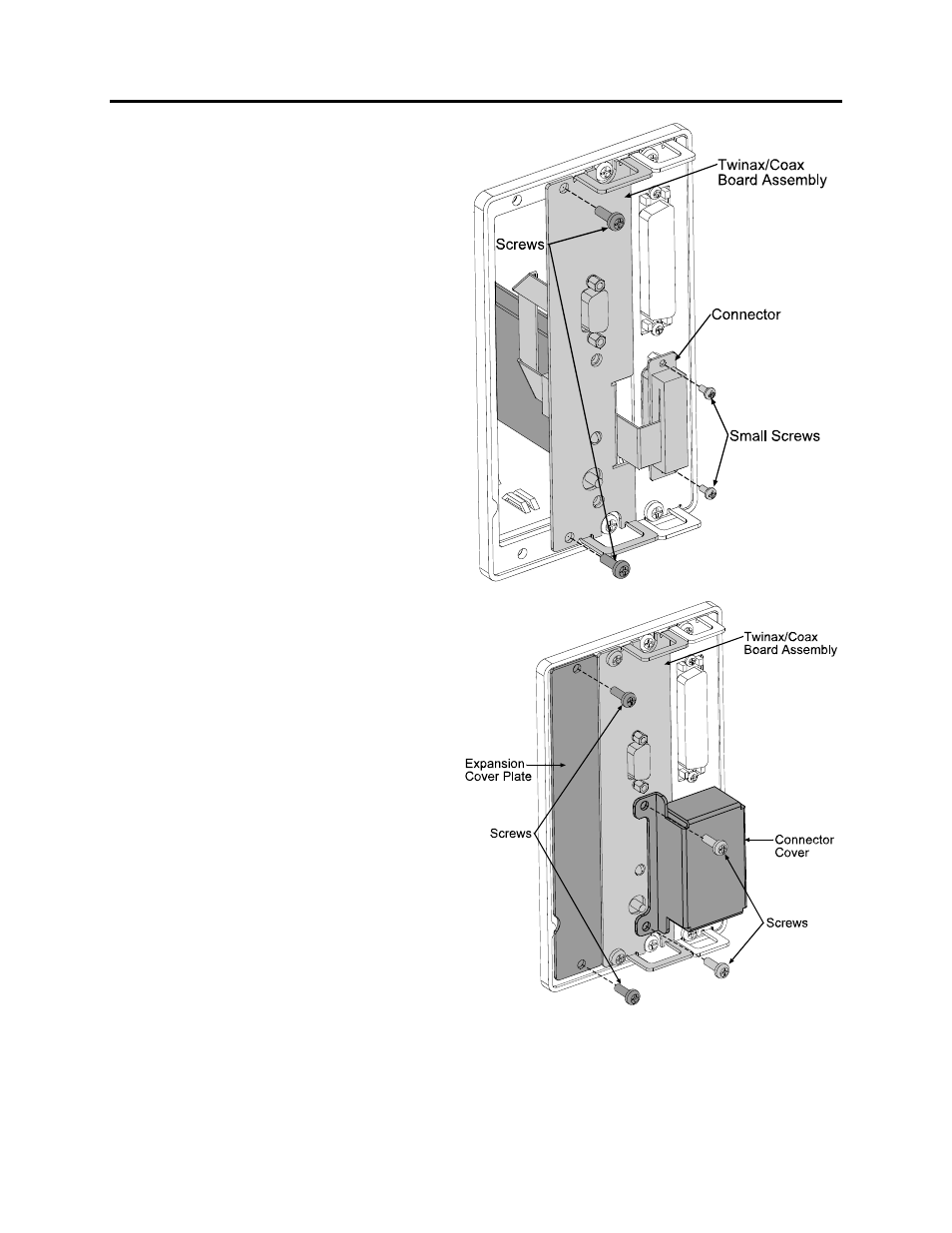

Installing the Twinax/Coax Interface Assembly
Slide the Twinax/Coax Board Assembly into
the printer until fully seated and secure using
the two Screws.
Slide the Connector from the Twinax/Coax
Board Assembly over the printer’s serial port
connector and secure using the two Small
Screws.
Position the Expansion Cover Plate over the
open area on the back of the printer and
secure using the two Screws.
Position the Connector Cover on the
Twinax/Coax Board Assembly and secure
using the two Screws
