Datamax-O'Neil I-Class Twinax_Coax Option User Manual
Page 3
1

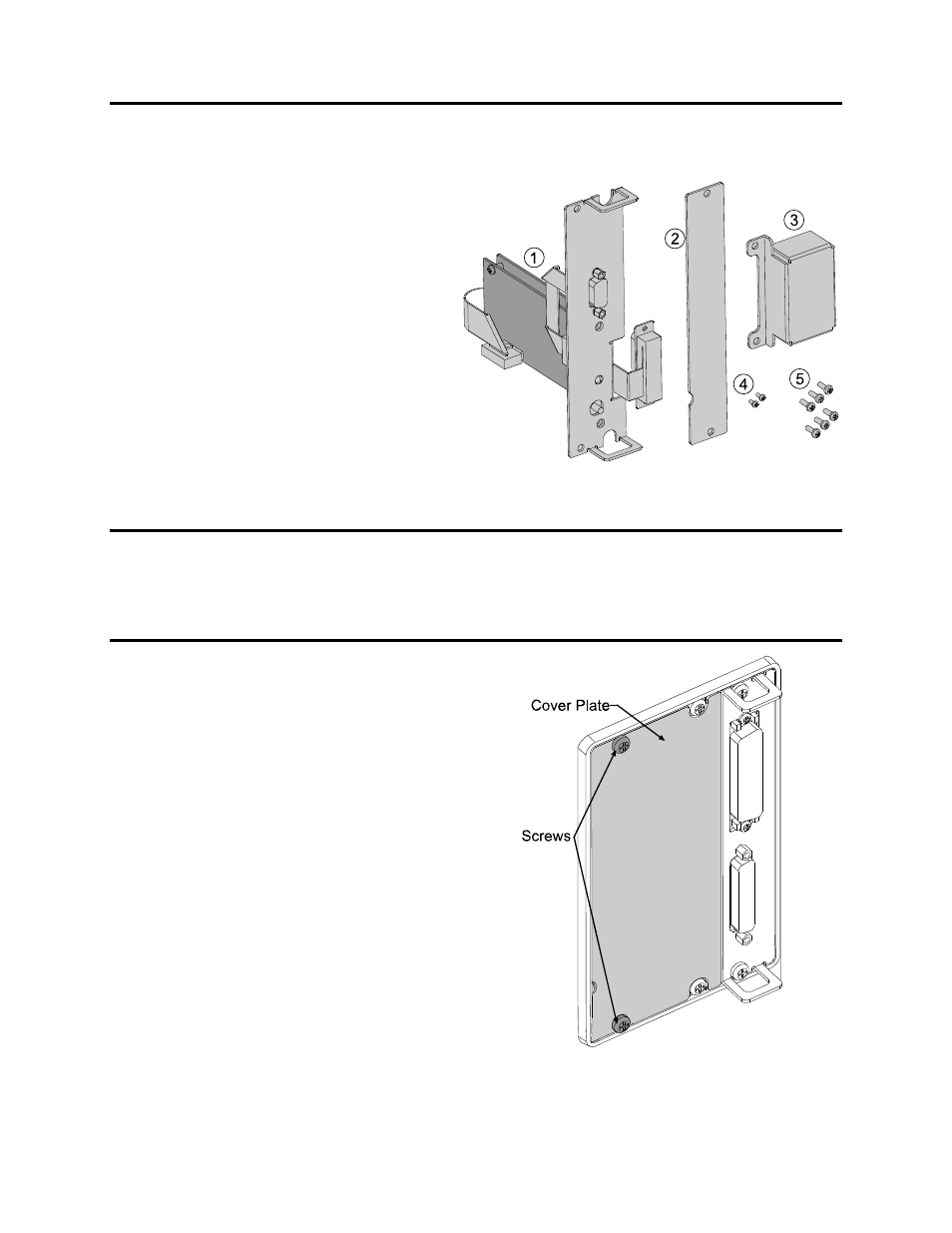

Contents of the Twinax/Coax Interface Kit
Depending on which option you ordered, this kit will contain either a Twinax Interface Cable or a Coax
Interface Cable in addition to the following items:
Twinax/Coax Board Assy
Expansion Cover Plate
Connector Cover
(2) 4-40 x .25 Screws
(6) M4 x 12 Screws
Tools
Required
The Twinax/Coax Interface Option only requires a #2 Philips screwdriver for installation.
Preparing the Printer
Turn the power off and unplug the printer.
Remove the Cover Plate from the printer by
removing the two Screws.
