Datamax-O'Neil H-Class Internal Rewind Option User Manual
Page 3
1
Overview
This document describes the installation and use of the Internal Rewind option for the H-Class printer.
The Internal Rewind option, with an outer diameter capacity of 5.5 inches (140 mm), will hold a partial 8
inch (203 mm) roll of media or, if using Peel and Present, all of the liner material. After taking a moment to
verify the contents of the kit and the tools required, follow the steps below to install and use the option.

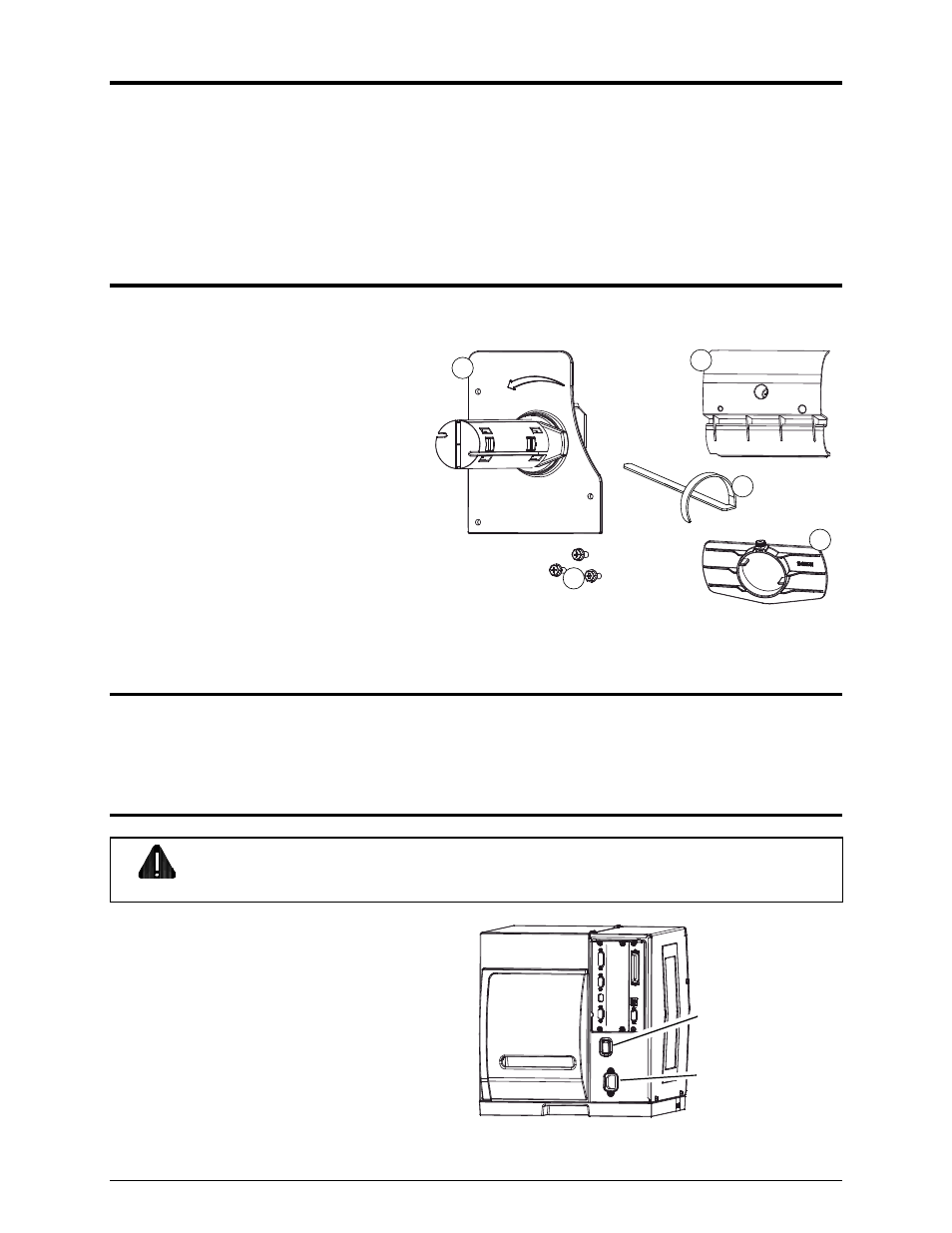

Contents
In addition to this procedure, the kit contains the following items:
Item Description
Rewinder Assembly
Screw (3)
Arc Plate
Retainer
Guide
1
2
3
4
5
Tools
Required
To install this option, you will need a Phillips screwdriver.
Installing the Rewinder
CAUTION
Remove power before performing this installation.
1) Turn OFF the Power Switch and unplug
the power cord from the AC Receptacle.
Power Switch
AC Receptacle
