PAC780/782/784 Installation Instructions
6
Installing to Cart

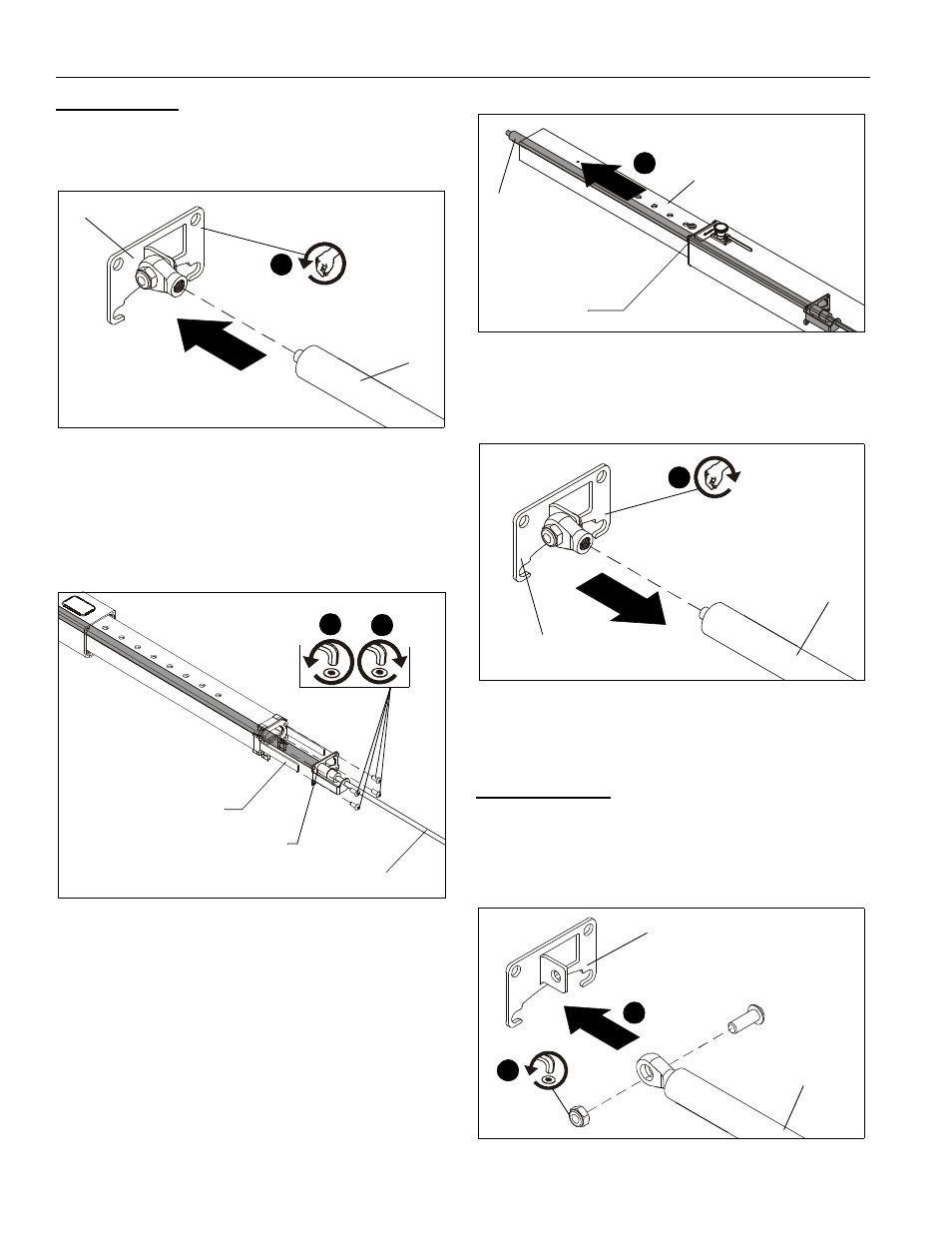

1. Remove and save end plate from end of gas spring
assembly (A) by turning plate counterclockwise. (See
Figure 4)
Figure 4
2. Remove four button head screws from bracket at end of
inner column. (See Figure 5)
3. With gas spring assembly (A) inside the inner column, slide
spring assembly up until the center plate rests against the
bracket at bottom of inner column. (See Figure 5)
Figure 5
4. Fasten gas spring assembly (A) through bracket at bottom
of inner column to inner column, using four button head
screws removed in Step 2. (See Figure 5)
5. With gas spring assembly (A) fastened to the inner column,
slide inner column of cart up through outer column, and out
the top of the outer column. (See Figure 6)
Figure 6
6. Replace plate removed in Step 1 to the end of gas spring
assembly (A). (See Figure 7)
Figure 7
NOTE: Proceed to Completing Installation to Cart/Stand
section .
Installing to Stand
1. Remove and save one button head cap screw and nut from
plate at end of gas spring assembly (A). (See Figure 8)
2. Remove plate from end of gas spring assembly (A). (See
Figure 8)
Figure 8
(A)
Plate
1
x 4
4
(A)
(columns shown as transparent)
Center
plate
Bracket at
bottom of
inner column
2
4
Top of outer
column
(columns shown as transparent)
Inner column
(A)
5
x
(A)
Plate
(A)
Plate
1 x 1
2
