PAC780/782/784 Installation Instructions
2
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and
subsidiaries (collectively "Milestone"), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief® is a registered trademark of Milestone AV Technologies.
All rights reserved.
IMPORTANT WARNINGS AND
CAUTIONS!
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all equipment mounted to cart/stand does not exceed 200 lbs
(90.72 kg) or the specific weight limit of the cart/stand.
NOTE: Each Gas spring is rated to hold a display at its upper
limit and lift a display at its lower limit. (See table below)
The gas spring will support a higher weight than its
rating, however it will only assist in decreasing the
amount of weight that needs to be lifted. The gas
spring that is used should be as close to the display
weight as possible.
Model Weight Rating Range
PAC780 65 lbs (29.48 kg) 50-75 lbs (22.68-34.02 kg)
PAC782 90 lbs (40.82 kg) 75-100 lbs (34.02-45.36 kg)
PAC784 115 lbs (52.16 kg) 100-125 lbs (45.36-56.70 kg)

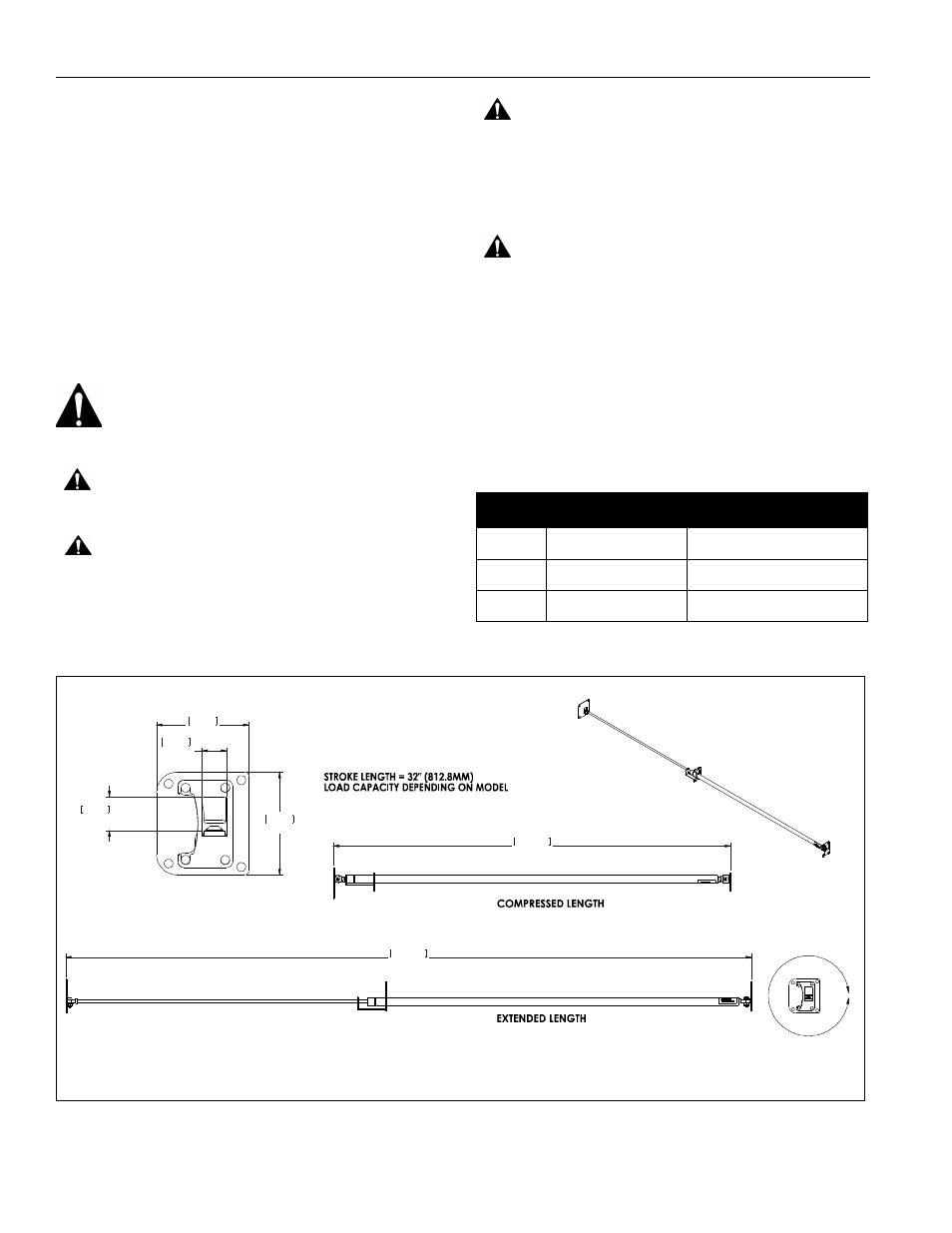

DIMENSIONS
75.60
1920.188
43.78
1112.012
B
3.77
95.758
.91
OPENING
23.016
3.40
86.233
1.25 OPENING
31.633
DETAIL B
SCALE 1 : 2
DIMENSIONS: [MILLIMETERS]
INCHES
