Installation Instructions PAC780/782/784
5
ASSEMBLY AND INSTALLATION
Install Gas Spring Assembly to Cart/Stand
1. Remove any mounted displays and mounting devices from
cart/stand.
2. Remove four button head screws from faceplate. (See
Figure 1)
3. Remove faceplate from column assembly. (See Figure 1)

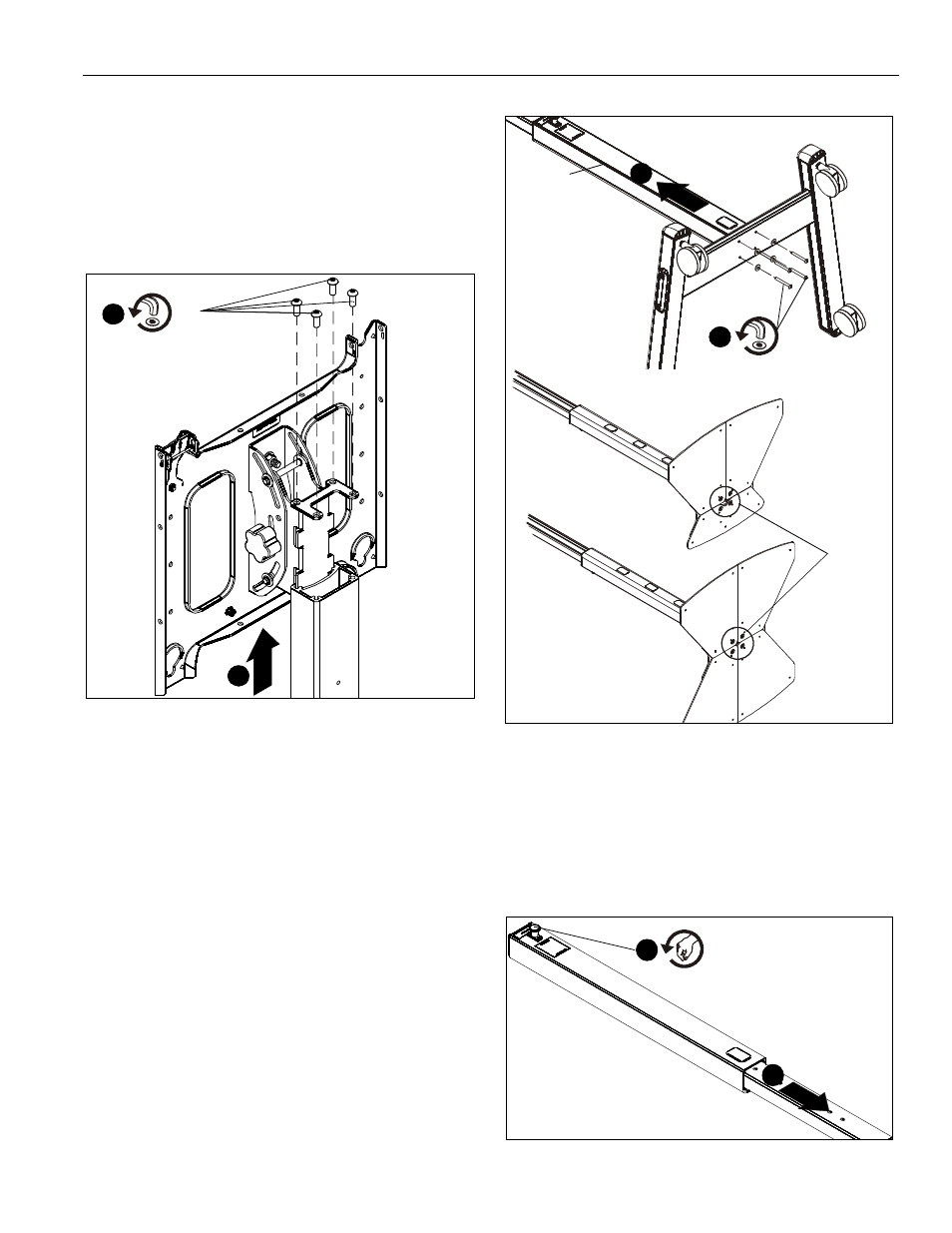

Figure 1
4. Carefully tip cart/stand in order to expose screws on bottom
of cart/stand.
5. Remove and save four screws and washers from bottom of
cart/stand. (See Figure 2)
6. Remove mounting column from base of cart/stand. (See
Figure 2)
Figure 2
7. Turn knob on back of column to release inner column from
outer column. (See Figure 3)
8. Pull inner column down through outer column until lower
end of inner column is exposed. (See Figure 3)
NOTE: If installing on a cart, proceed to Installing on Cart
section. If installing on a stand, proceed to Installing
on Stand section.
Figure 3
2 x 4
3
x 4 5
column 6
Remove
four
fasteners
(MFC cart shown)
(MF2 stand shown)
(MF1 stand shown)
7
8
