Installation Instructions TA100/200/250
7

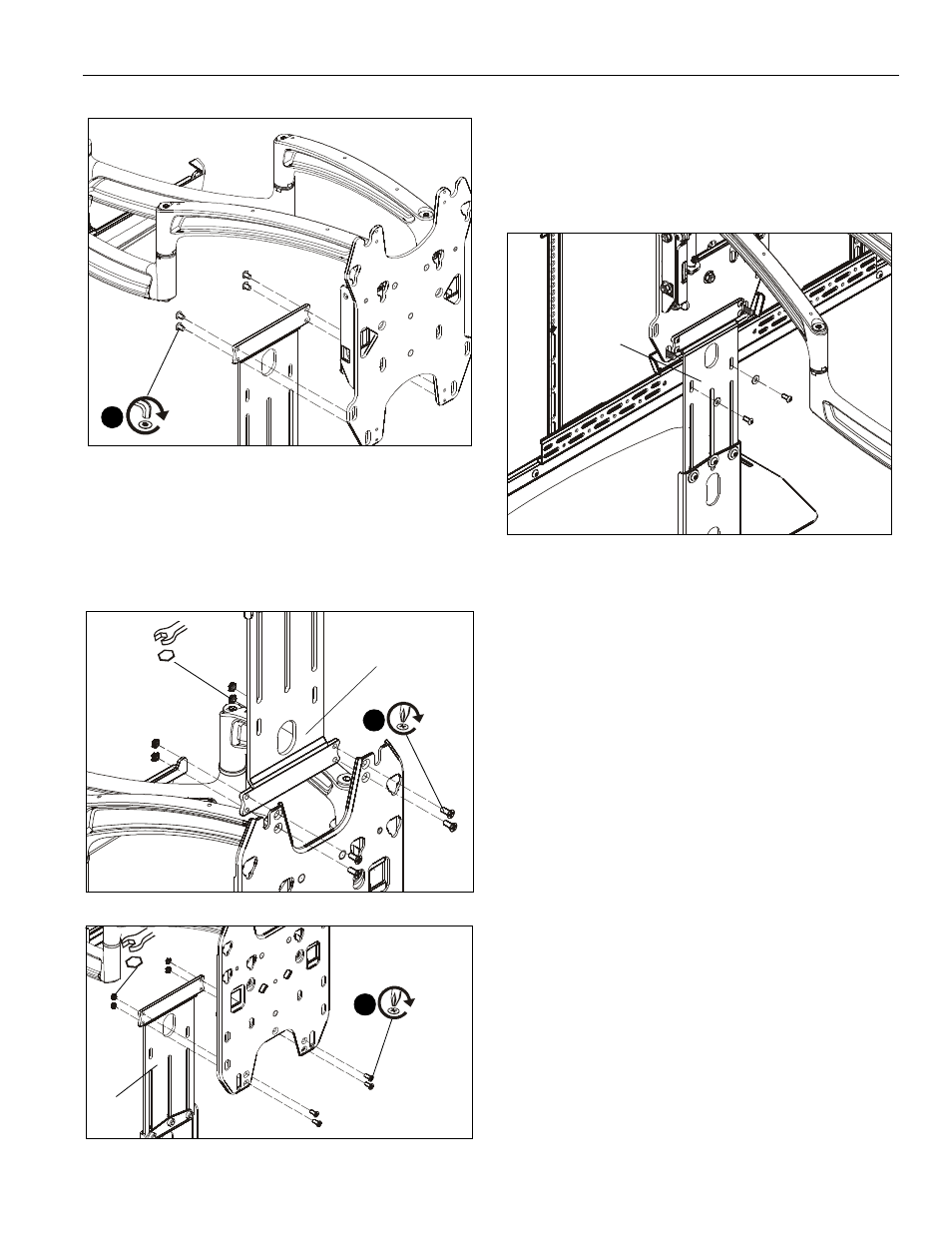

Figure 4
TS3XX or iCF30 Installation
1. If already installed, remove display from faceplate. See
swing arm installation instructions for details.
2. Use four #10-24 x 1/2" Phillips head cap screws (H) and
four #10-24 lock nuts (J) to connect attachment bracket (A)
to faceplate. (See Figure 5) and (See Figure 6)
Figure 5
Figure 6
3. Reinstall display to faceplate. See swing arm installation
instructions for details.
NOTE: If also installing side speaker brackets (TA300),
attachment bracket (A) should also be attached to
TA300 horizontal brackets for additional support. Use
hardware provided with TA300. (See Figure 7)
Figure 7
(display not shown for clarity)
(lower installation)
(E) x 4 1
(A)
(J) x 4
2 (H) x 4
(upper installation)
(display not shown
for clarity)
(lower installation)
(display not shown
for clarity)
2 (H) x 4
(J) x 4
(A)
(A)
