Models: KTA-220/225 and KTA-320/325 Installation Instructions
6

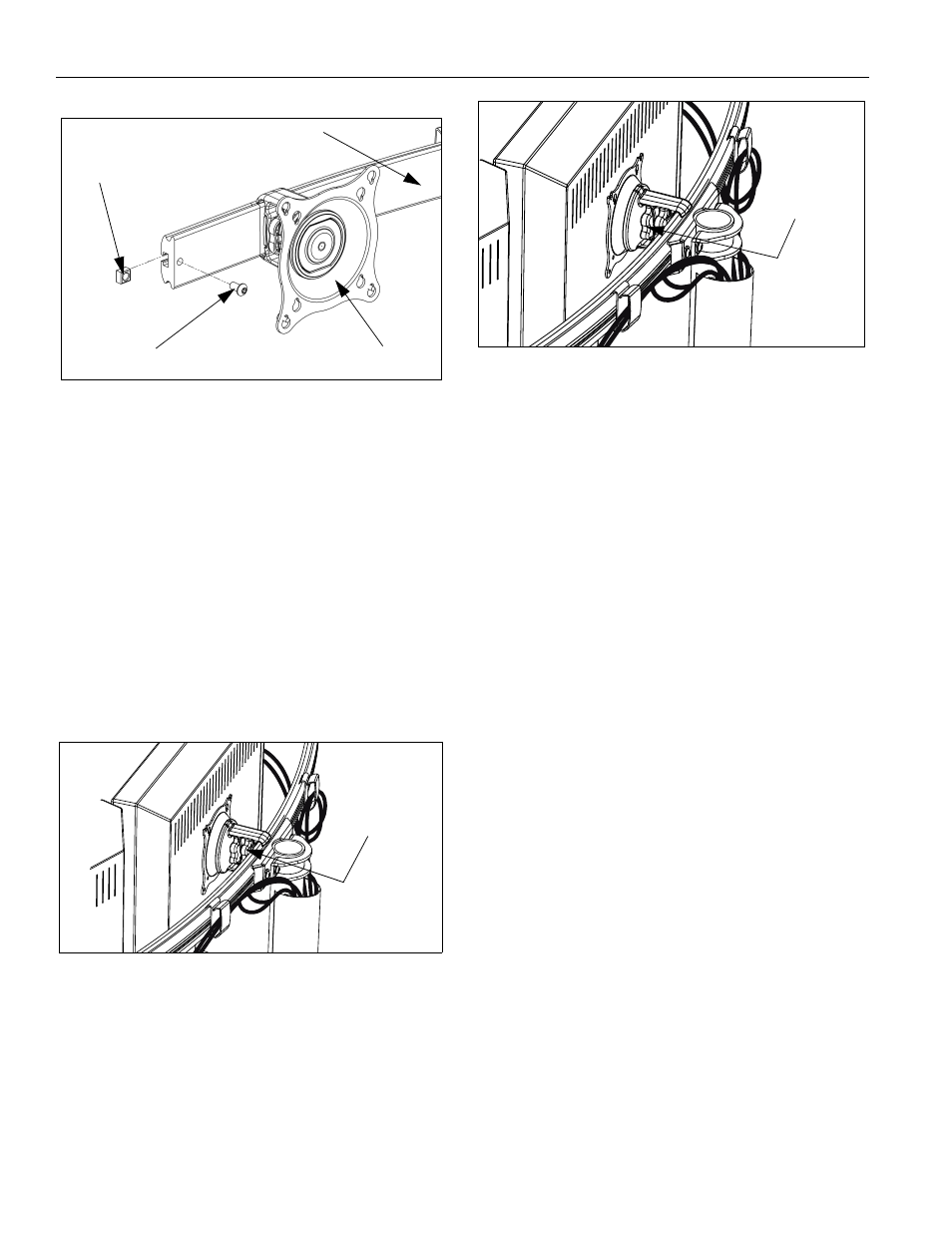

Figure 10: Install End Lock(s)
Display Adjustment
These pivot arrays allow horizontal, pitch, roll, and yaw
adjustment of each display with a maximum pitch range
of 15° up and 15° down.
These pivot arrays also allow a full 360 deg. of display
roll.
Display Horizontal Position Adjustment
To adjust display horizontal position:
1. Loosen Centris bracket rear adjustment knob.
(See Figure 11)
2. Slide Centris bracket with display left or right until
properly positioned on array rail.
3. Tighten Centris bracket rear adjustment knob.
Figure 11: Display Horizontal Adjustment
Display Pitch, Roll, and Yaw Adjustment
To adjust display position:
1. Loosen Centris bracket front adjustment knob.
(See Figure 12)
2. Tilt display up or down, or adjust display roll left or
right until properly positioned.
3. Tighten Centris bracket front adjustment knob.
Figure 12: Display Pitch and Roll Adjustment
End Lock
End Lock Retaining Screw
Centris Head
Array Rail
Horizontal
Adjustment
Knob
Pitch/Roll
Adjustment
Knob
