Installation Instructions Model: KSA-1011
5
7. Install washer (40) or spacer (30), as desired, on pin
(20) (See Figure 4).
NOTE: Washer (40) will lock Y-connector (10) to desk
mount. Spacer (30) will allow limited movement
of Y-connector (10) relative to desk mount,
dependent upon tension of screw (50).
8. Install Y-connector (10) on pin (20) (See Figure 4).
9. Install screw (50) through washer (70), washer (60),
and washer (70), into Y-connector (10) (See Figure
4).
10. While holding Y-connector (10), desk mount housing,
and screw (50) together, turn entire assembly upside
down.
11. Insert eraser end of pencil into plastic lock ring of nut
(80). Using pencil, thread nut (80) onto end of screw
(50) several turns (See Figure 5). If necessary, rotate
clamp to permit access.

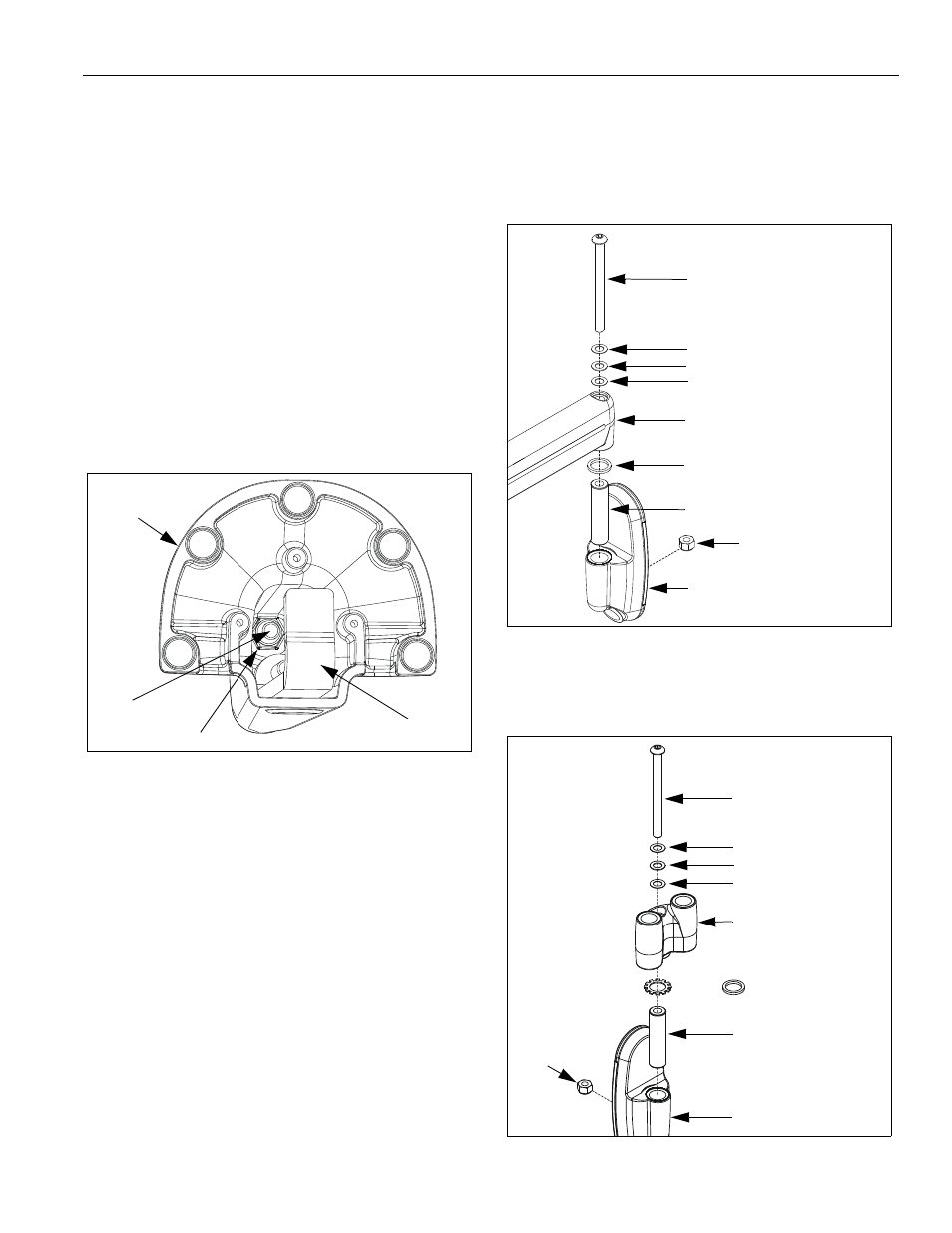

Figure 5: Install Nut
12. Using 3/16" hex key, tighten screw (50) as required to
maintain desired Y-connector (10) position. Ensure
nut (80) fully seats into recessed cavity of desk mount
housing (See Figure 5).
13. Install retained desk mount base plate and attach
screws. Ensure clamp faces center of desk mount as
shown (See Figure 3).
14. Install mount to desk per instructions included with
desk mount.
15. Proceed to "ASSEMBLE MOUNT ARMS TO Y-
CONNECTOR."
Wall Mount
1. If previously attached, disconnect cables from
display, then remove display. See instructions
included with wall mount and/or interface.
2. If previously attached, loosen (do not remove) set
screw and remove wall mount housing from wall
plate. Do NOT remove wall plate from wall. See
instructions included with wall mount.
3. Remove mount arm from wall mount (See Figure 6).
Retain all hardware for later mount arm assembly.
Figure 6: Disassemble Wall Mount
4. Install pin (20) into wall mount (See Figure 7).
Figure 7: Assemble Y-Connector to Wall Mount
80 (in recessed cavity)
50
Desk Mount
Housing
Clamp
Wall Mount Housing
Spacer
Pin
Mount Arm
Washer (Stainless Steel)
Washer (Plastic)
Washer (Stainless Steel)
Mount Arm Attach Screw
Nut
Wall Mount Housing
50
70
60
70
10
40 or 30
20
80
