Installation Instructions K1D Series
7

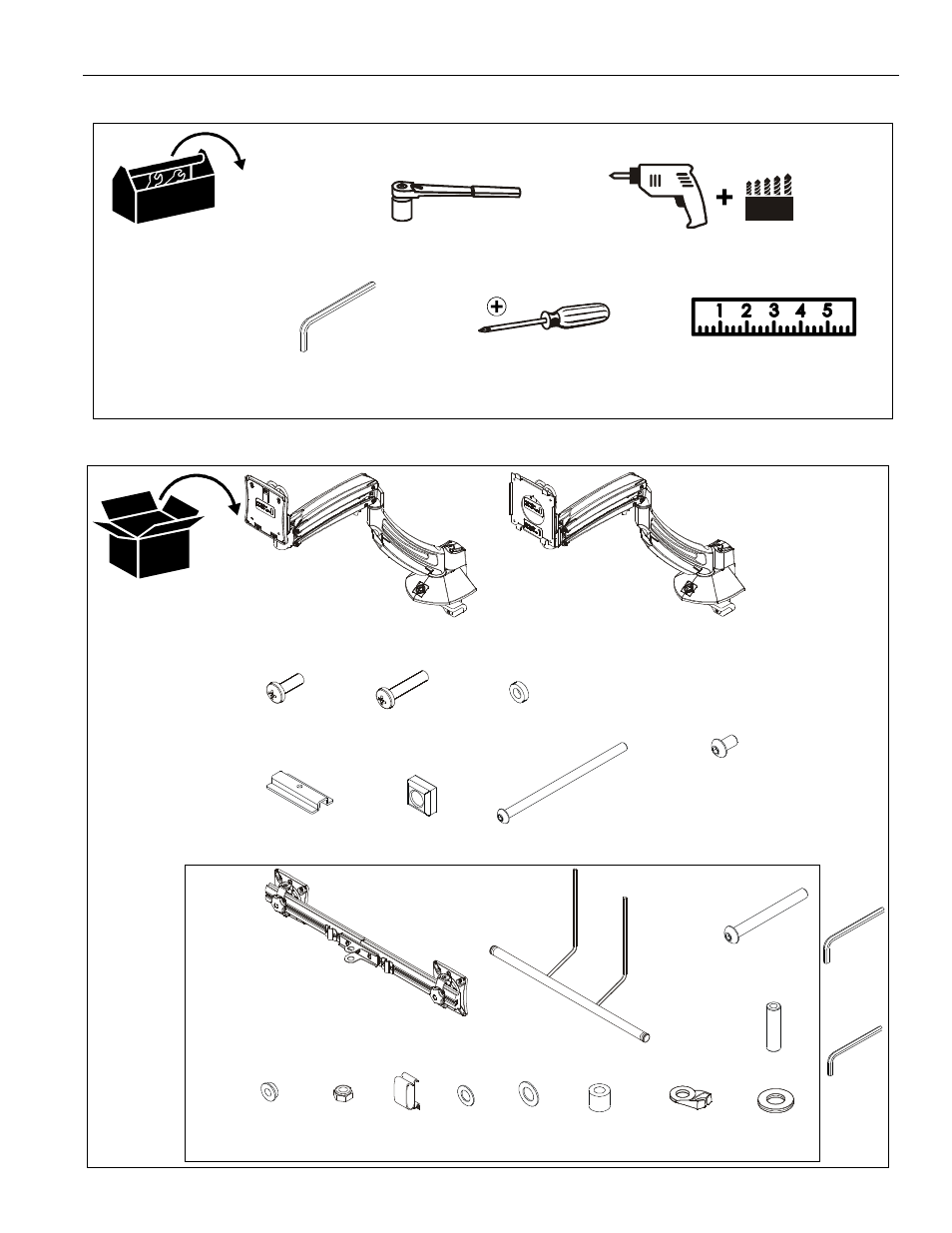

TOOLS REQUIRED FOR INSTALLATION
PARTS
#2
3/16” (included)
1/8” (included)
A (1)
[Desk clamp arm]
(K1D120 shown)
B (4/8)*
M4x14mm
C (4/8)*
M4x25mm
D (4/8)*
M10x5.3x10
3/16”
1/8”
K (1)
L (1)
or
A (1)
[Arm with Interface]
(K1D120BXDL shown)
E (1)
[Clamp bracket]
F (1)
5/16-18”
G (1)
5/16-18 x 6”
H (1/2)*
#10-24 x 1/4”
* - (single display models/dual display models)
J (1) - K1D22H Array Kit (included with K1D22H and K1D22HSXF1 models only)
J1 (1)
[Array]
J2 (1)
[Handle]
J5 (1)
5/16-18 x 3"
J4 (1)
[Pivot pin]
J6 (1)
[Pocket washer]
J3 (1)
5/16-18
J7 (2)
[Array cable
J8 (2)
[Thin steel
J10 (1)
[Rotational
spacer]
J9 (1)
[Plastic
washer] washer]
J11 (1)
[Cable clip]
J12 (1)
[Pivot point
spacer] clip]
