Installation Instructions K1D Series
15

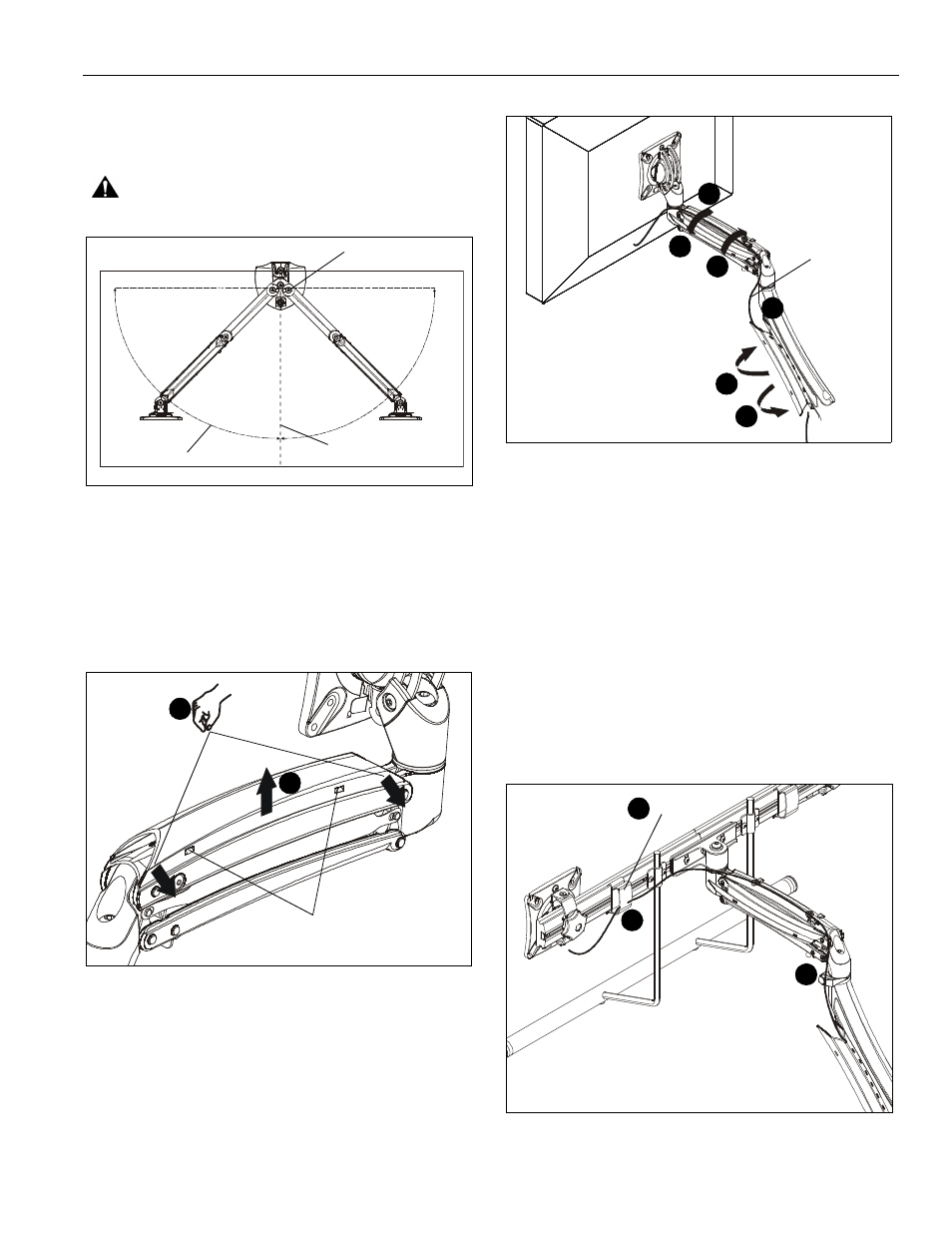

Dual Arm Models
1. Adjust arm angles as desired within a 90 degree range from
the pivot point of the arm and a perpendicular centerline of
mount. (See Figure 26)
WARNING: Swinging the arm beyond this range may result
in the mount slipping of the desk causing serious injury!
Figure 26
Cable Management
1. Press insides of cable management covers at both ends to
unhinge tabs on either end of cable management cover on
upper arm. (See Figure 27)
2. Lift cable management cover up until tabs are unhinged and
cover is in the “open” position. (See Figure 27)
Figure 27
Figure 28
3. Route cables through cable management channels. (See
Figure 28)
IMPORTANT ! : Be sure to leave enough slack in the
cables near display and arm joint to allow for full arm
articulation!
4. Close cable management covers on monitor arm. (See
Figure 28)
5. Repeat Steps 1-4 for lower arm.
Array Models
1. Install array cable clips (J7) to back of array. (See Figure 29)
2. Route cables through array cable clips (J7) as desired. (See
Figure 29)
3. Route cables through arm cable clips as desired. (See
Figure 29)
Figure 29
perpendicular centerline
90 degrees range
of motion per arm
pivot point of the arm
(top view)
cable management cover tabs
1
2
2
2
4
4
3
3
cable (typical)
(J7)
2
1
3
