TS110SU/TS118SU Installation Instructions
5

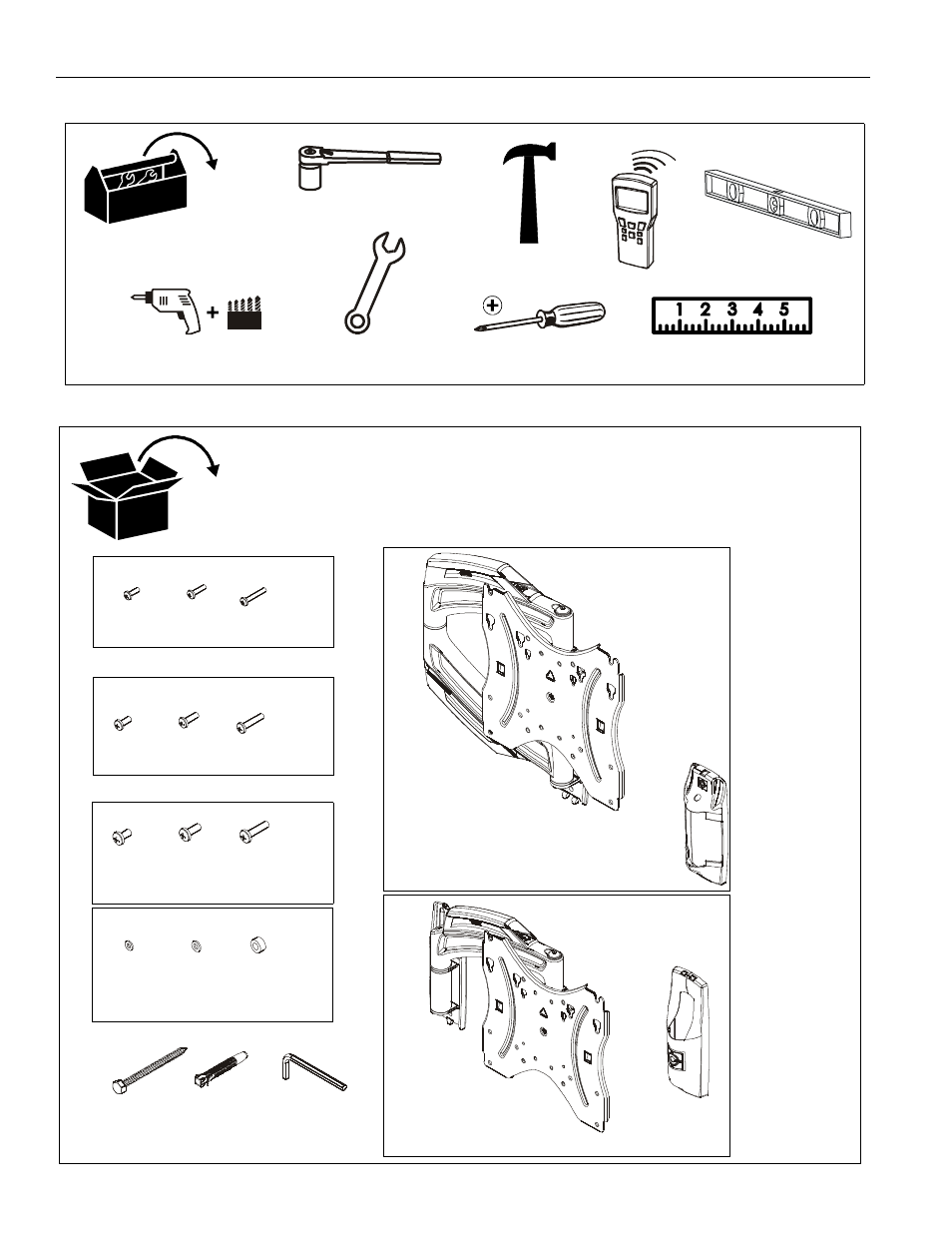

TOOLS REQUIRED FOR INSTALLATION
PARTS
1/8" - wood studs #2 7/16" (11.1mm)
8mm - concrete
concrete only
H (1)
D2 (4)
"A"
"B"
"C"
"D"
A1 (4)
M4x12mm
A2 (4)
M4x16mm
A3 (4)
M4x25mm
B1 (4)
M5x12mm
B2 (4)
M5x16mm
B3 (4)
M5x25mm
C1 (4)
M6x12mm
C2 (4)
M6x16mm
C3 (4)
M6x25mm
M5
J (1)
[main assembly]
E (2)
1/4 x 2 1/2"
F (2)
[concrete anchor]
G (1)
3/16"
D3 (8)
1/4"
D1 (4)
M4
[wall cover]
H (1)
[main assembly]
J (1)
[wall cover]
TS118SU
TS110SU
