TS110SU/TS118SU Installation Instructions
10
Tilt Friction Adjustment
1. Adjust tilt friction adjustment screws to increase or decrease
tilt friction. (See Figure 13)
NOTE: There is a tilt friction adjustment screw on each side of
the pitch mechanism that must be adjusted evenly in
order to properly adjust tension.

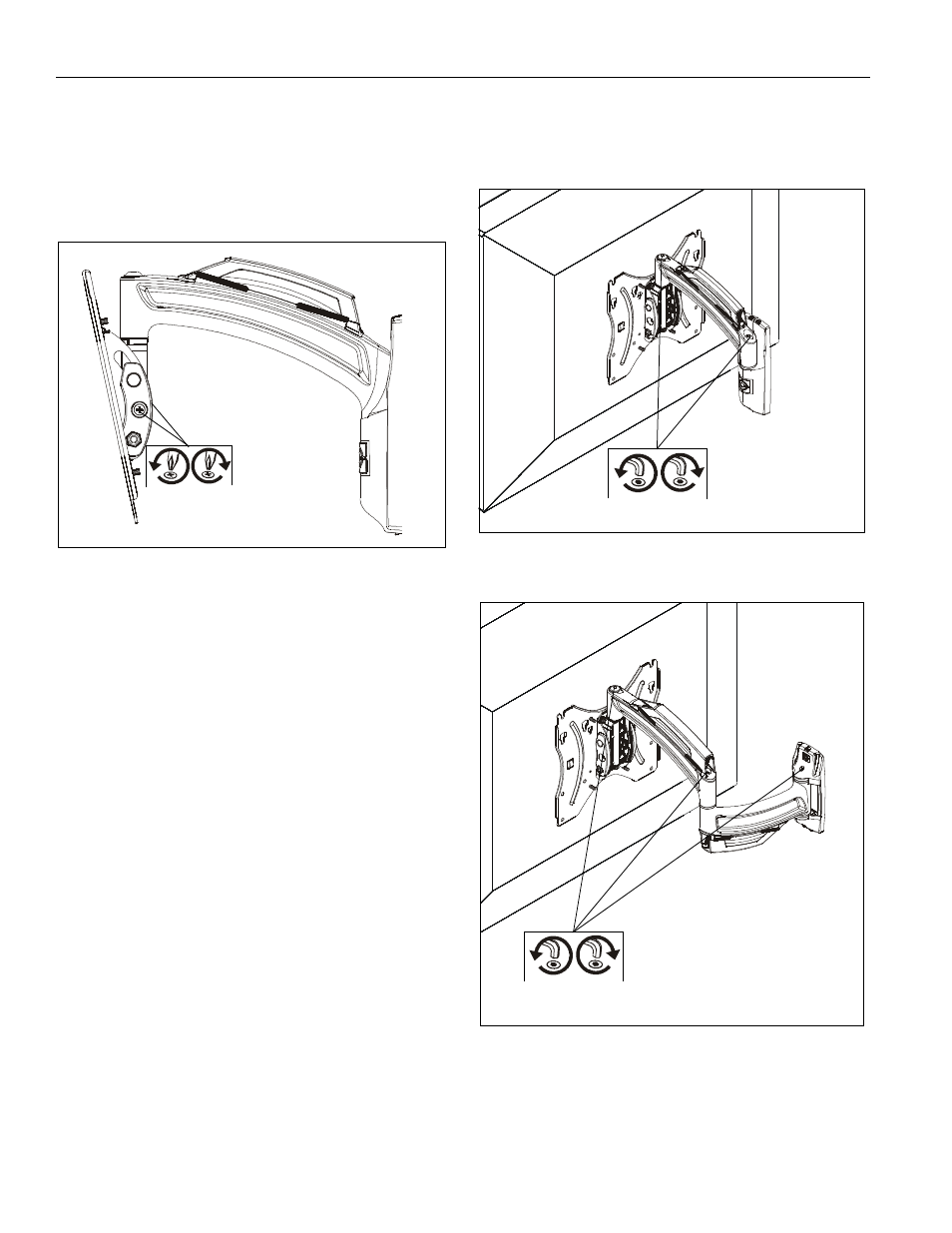

Figure 13
Arm Tension Adjustment
1. Use 3/16" hex key (T) to adjust arm tension at any of the
tension adjustment points. (See Figure 14) or (See Figure
15)
Figure 14
Figure 15
(side view of TS110SU)
arm tension
adjustment points
(TS110SU)
arm tension
adjustment points
(TS118SU)
