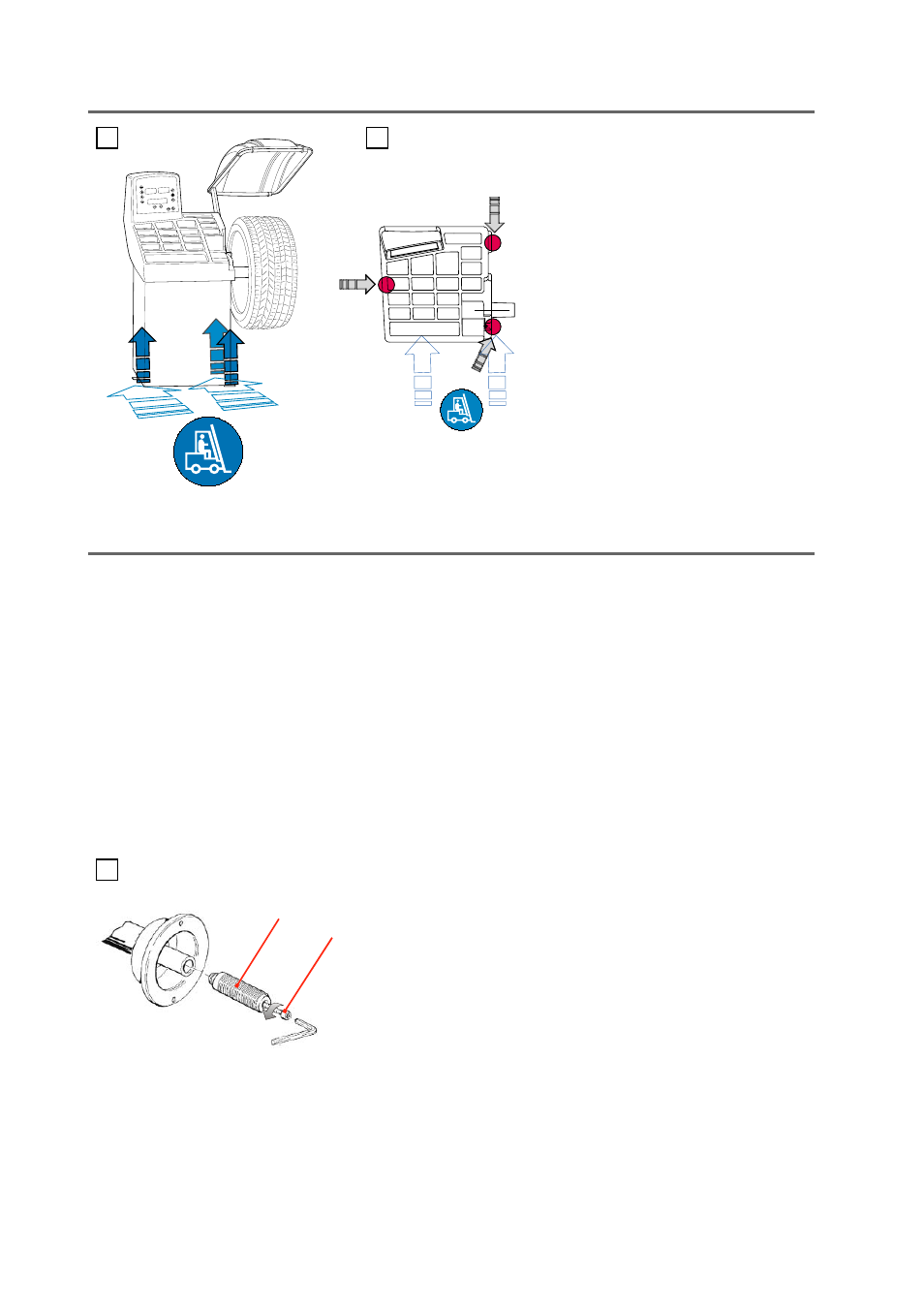

2 - Handling and lifting

3 - Startup

3.1 - Anchoring

The machine can operate on any fl at non resilient fl oor.
Make sure that the machine rests solely on the three support points provided (Fig.2a).

3.2 - Electrical connection

The machine is supplied with a single-phase mains cable plus earth (ground).
(any extension cables must have a cross-section of no less than 2.5 mm

The power supply voltage (and mains frequency) is indicated on the machine identifi cation plate and cannot be
changed. Connection to the mains must always be made by expert personnel.
The machine must not be set up without proper earthing.
Connection to the mains should be through a slow acting safety switch rated at 16 A (230V). See enclosed diagram.

3.3 - Flange mounting

NOTE: DO NOT LIFT THE WHEEL

BALANCER USING OTHER GRIPS

The wheel balancer is supplied complete with cone fl anges
for fi xing wheels with a central hole. To mount other optional fl ange
adaptors :
a) Remove the threaded end-piece A after unscrewing the screw B.
b) Mount the new fl ange (see attached sheets).
NOTE: CAREFULLY CLEAN THE COUPLING SURFACES BEFORE

PERFORMING

ANY

OPERATION.

3.4 - Wheel guard assembly and adjustment (optional)
a)

Fix the components to the base as described in the attachment “WHEEL GUARD ASSEMBLY SEQUENCE” at

the end of the manual.

Note: Do not lean on the guard during the wheel balancing cycle.
