Use and maintenance manual Rev. 01-2011
ENGLISH

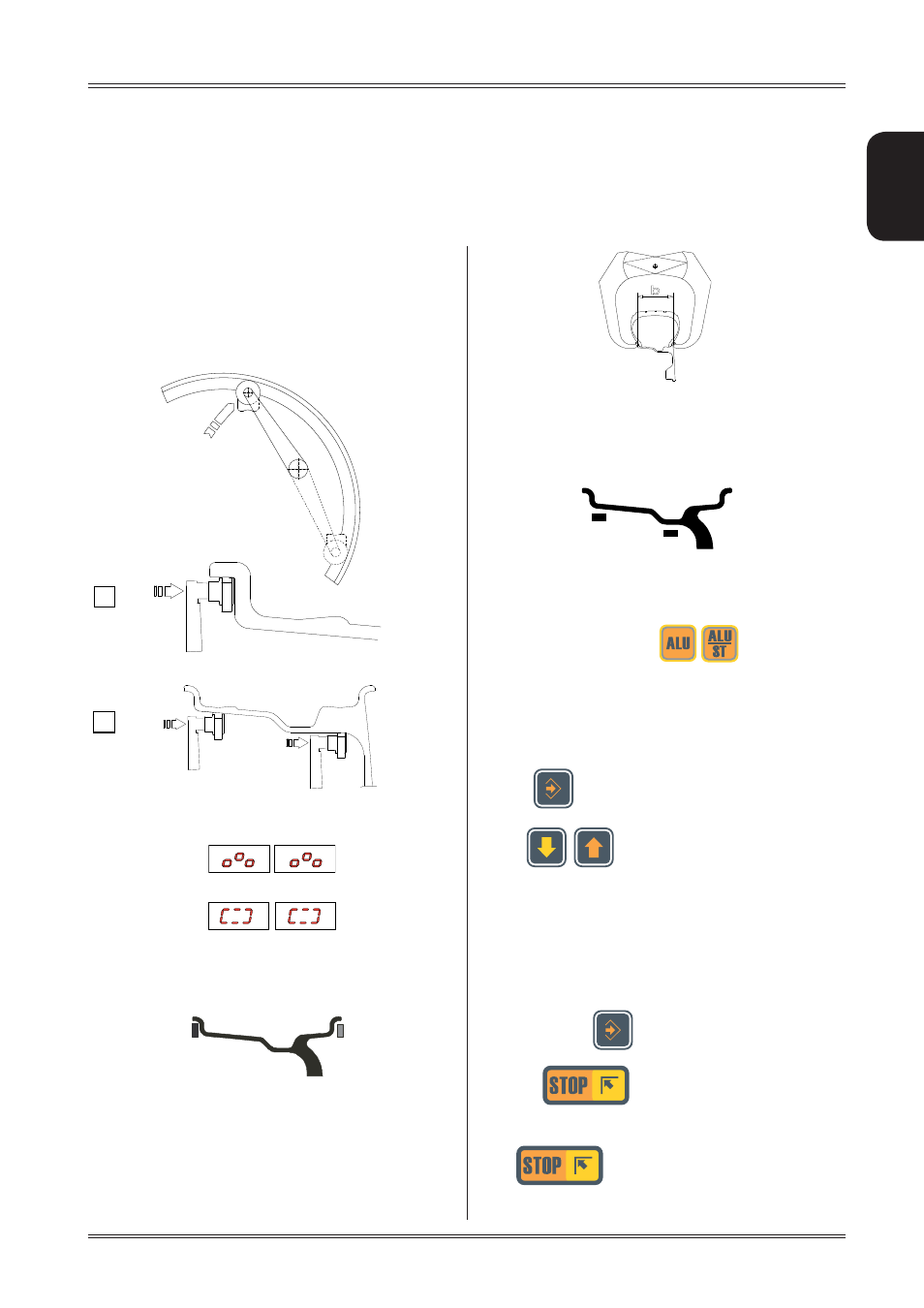

5 Use of the wheel balancer
5.1 PRESETTING OF WHEEL DIMENSIONS
The balancing data is set by means of an “intelligent” au-
tomatic gauge; confi rmation of the measurement and the
position appear on the display. The round part of the gauge
must rest on the rim where the weight will be positioned.
While the gauge is moving the following appears:
when the measurement has been stored:
a) standard weights: when only one measurement is
made, the machine interprets the presence of a rim with
clip-on weight correction
The correct measurement is that which can be measured
with the compass gauge provided.
Use of the wheel balancer
b) adhesive weights: make two successive measurements
on two correction planes inside the rim.
The balancing machine automatically interprets that the
correction will be made with adhesive weights and the
following appears:
For a different combination of the type or position of the
weights on the rim, use the button.
5.1.1 Modifying set dimensions
If the wheel dimensions have been entered incorrectly,
the parameters can be modified without repeating the
balancing spin by pressing for 2 seconds :
access parameter modifi cation
→
(select to modify: (a) distance, (b) width, (d)
diameter
In the case of standard weights:
(a)distance,(b)width,(d)diameter
In the case of adhesive weights:
(a1) inside distance,(a2) outside distance,(d1) inside
diameter,(d2) outside diameter
press to select (a) (b) or (d)
→
to recalculate the unbalance
or:
pull out the gauge to repeat the measurement
→
to obtain the new measurement.
