Use and maintenance manual Rev. 01-2011
ENGLISH

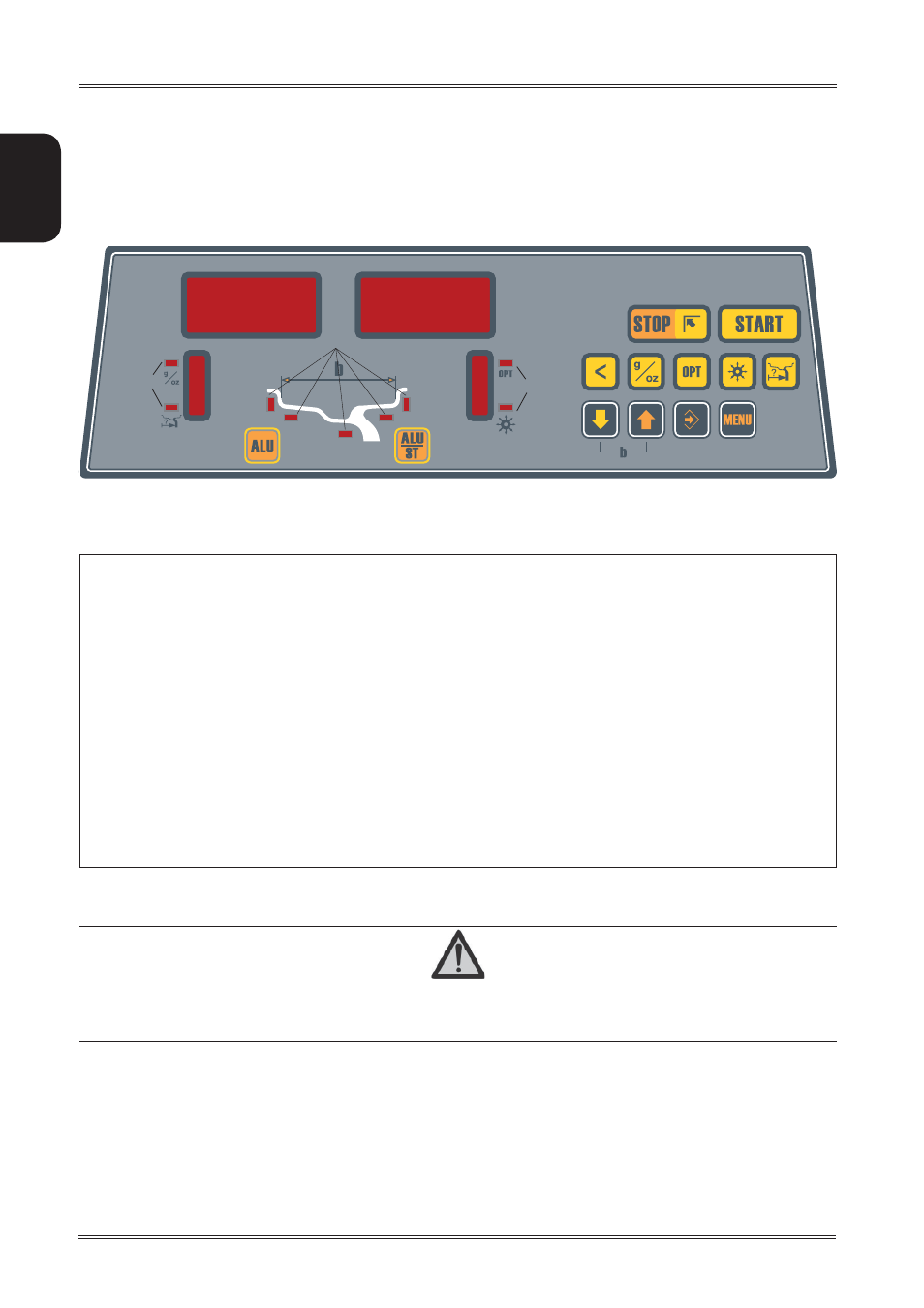

Control panel
1-2 Digital readouts, AMOUNT OF UNBALANCE, inside/outside
3-4 Digital readouts, POSITION OF UNBALANCE, inside/outside
5 Inside correction mode selection button
6 Indicators, correction mode selected
7 Outside correction mode selection button
8 Manual WIDTH/DISTANCE/DIAMETER setting buttons and MENU selection
9 Push button, FUNCTION MENU
10 Balancing cycle stop button
11 Balancing cycle start button
12 Position repeater push button
13 Push button, SPLIT (unbalance resolution)
14 MENU selection confi rmation pushbutton
15 Push button, unbalance reading < 5 g (.25 oz)
16 Indicators, selection made
17 Grams/ounces selection pushbutton
18 Unbalance optimization selection button
CAUTION
P RESS THE BUTTONS WITH YOUR FINGERS .
N
EVER USE THE COUNTERWEIGHT GRIPPERS OR OTHER POINTED OBJECTS
!
4. Control panel
