K10 EVO - Use and maintenance manual Rev. 04-2009
ENGLISH

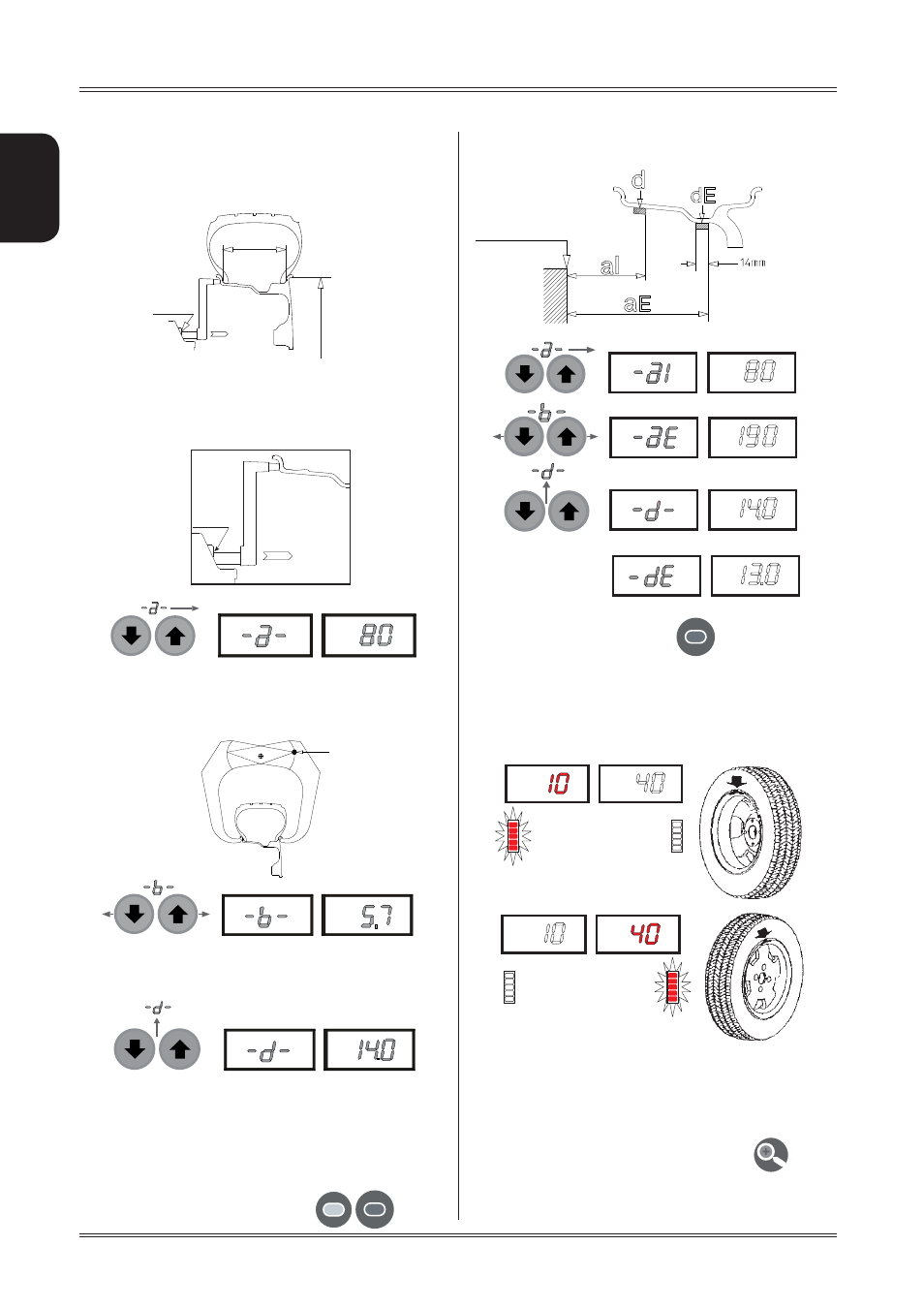

4.1 DIMENSIONS
SETTING
WHEEL
4.1.1 Standard wheel
Set the DISTAN
a.
CE “a” between the inner side of the
wheel and the machine.
Use the relative gauge on the machine to measure
this.
S
b. et the rated WIDTH, normally indicated on the rim,
or measure the width “b” using the supplied calliper
gauge.
S
c. et the rated DIAMETER “d” indicated on the tyre.
4.1.2 Wheels with internal correction to
rim
Select the correction position according to the method used
to apply the weights to the wheels.
For this operation use the two buttons
Use the gauge to measure the distances according to the
following scheme.
To set dE hold down the button
(red button) for
2 seconds, when any of the dimensions appear on the
display.
4.1.3 Measurement result
Move the wheel manually until all the LED’s correspond-
ing to the side light up. The display shows the measured
unbalance.
For unbalance within tolerance 0 (zero); using
values
within tolerance can be viewed.
Control panel
