14
Use and maintenance manual Rev. 12-2010
ENGLISH

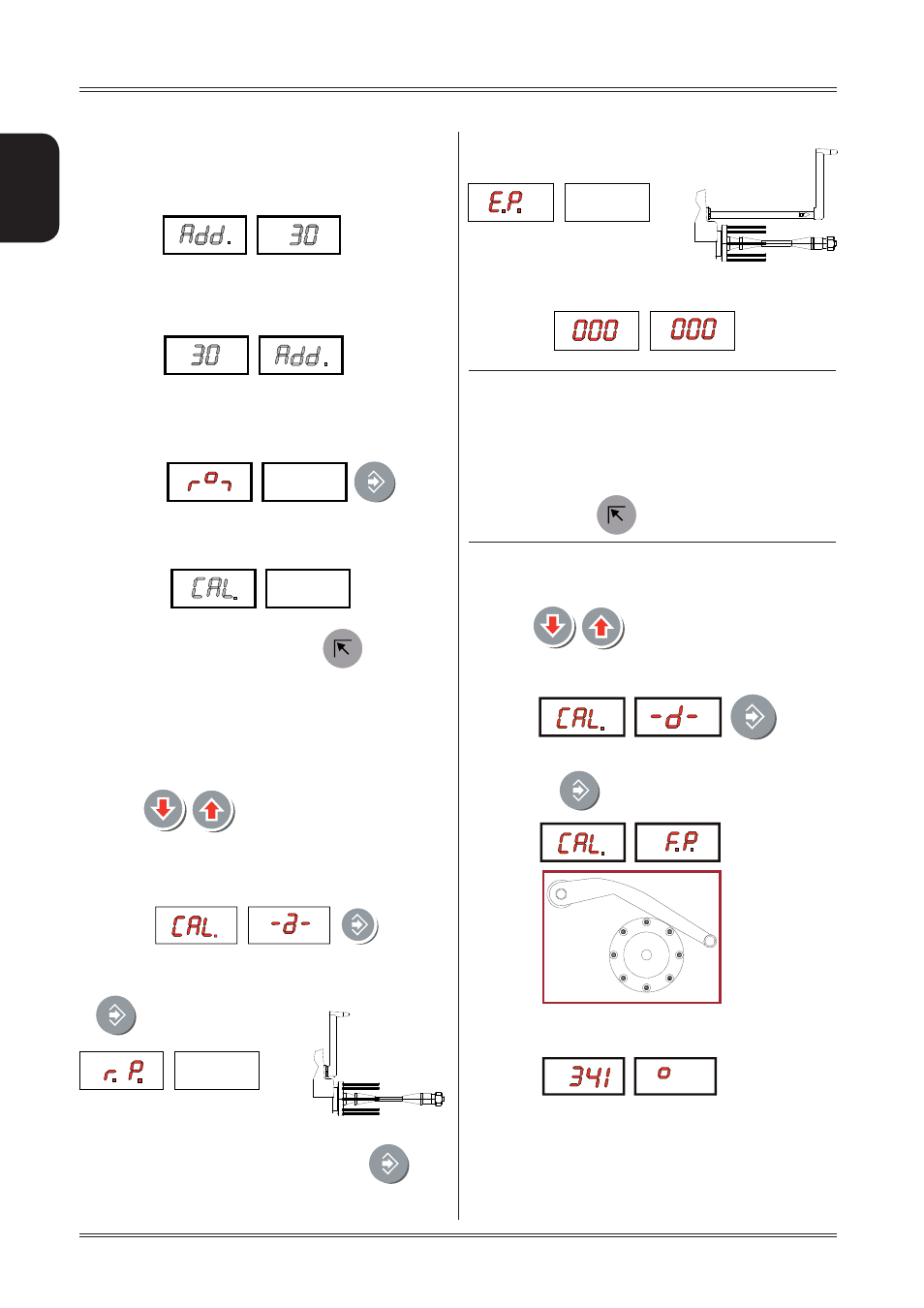

Perform a manual spin; when the display shows the 2.
wording [STOP], halt the wheel.
Add a standard weight of 30 g (1.00 oz) to the outer
3.
side, in any position.
.
Perform a manual spin; when the display shows the 4.
wording [STOP], halt the wheel.
Sh
5. ift the standard weight from the outside to the
inside keeping the same position.
Perform a manual spin; when the display shows the 6.
wording [STOP], halt the wheel.
Tu
7. rn the wheel until the standard weight is at the top
(12 o’clock).
End of calibration. 8.
To cancel calibration at any time, press .
7.1.4 Automatic gauges calibration
7.1.4.1 Rim distance gauge
Display the SETUP menu 1.
P 2. ress to view the rim distance
gauge CALIBRATION function.
Leave the distance gauge in rest position and press 3.
Pull the gauge completely out and press 4.
CORRECT CALIBRATION
Return the gauge to rest position.
The wheel balancer is ready for operation.
INDICATION
In the event of errors or faulty operation, the writing
“r.P.”:
ap pears on the display : shift the gauge to the
rest position and repeat the calibration operation exactly
as described above. If the error persists, contact the
Technical Service Department. In the event of incorrect
input in the rim distance gauge calibration function, press
to cancel it.
7.1.4.2 Diameter gauge
E
Display the SETUP menu
P 1. ress to view the diameter gauge
CALIBRATION function
Place th 2. e gauge on the brush as shown in the figure
and press
The number 341 ± 1° appears on the left display . 3.
Position the distance gauge 20 mm from the edge of 4.
the brush as shown in the figure
