Use and maintenance manual Rev. 12-2010
ENGLISH

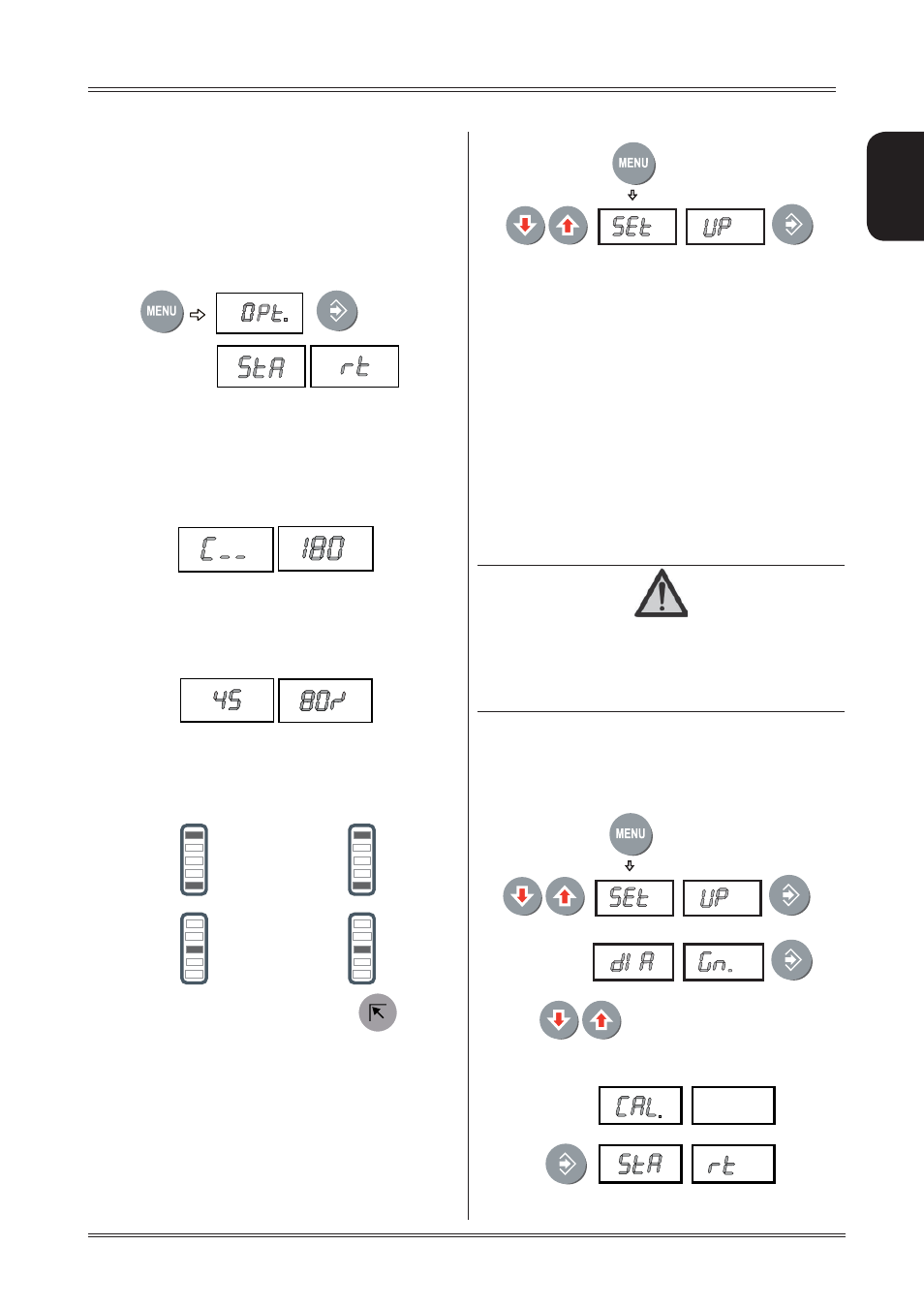

7.1.1 Unbalance optimisation
This operation is performed to reduce the static unba-
lance of the wheel.
It is suitable for static unbalance values in excess of 30
grams (1.1 oz).
If no unbalance was detected beforehand, a manual a.
spin is requested, otherwise proceed to stage b.
Perform a manual spin; when the display shows the b.
wording [STOP], halt the wheel.
Mak
c. e a reference mark on the flange and the rim (using
a piece of chalk, for example).
With the aid of a tyre remover, turn the tyre on the rim
by 180°. Refi t the wheel in such a way that the reference
marks on the rim and the fl ange coincide.
Perform a manual spin; when the display shows the d.
wording [STOP], halt the wheel.
RH displ
e. ay: percentage reduction value
LH display: actual static unbalance value which can be
reduced by rotation
M f. ark the two positions of the rim and tyre, and turn the
tyre on the rim until the positions coincide to achieve
the optimisation shown on the display
To cancel optimisation at any time, press .
7.1.2 Self-diagnostics
The machine can perform self-diagnostics to check the
LED’s on the control panel and make sure the encoder
reads correctly.
To perform this operation, view the SETUP menu.
In the self-diagnostics sequence, all the LED’s on the panel
light up for a few seconds in order to check operation. When
the LED’s go out, the machine automatically moves on to the
encoder reading phase. When the wheel is turned manually
(forwards and backwards), the display shows its exact posi-
tion. The value lies between 0 (zero) and 255.
7.1.3 Calibration
To calibrate the machine, proceed as follows:
Fit an average size wheel with a metal rim on the shaft. ▪
Example: 6” x 15” (± 1”).
Set the wheel measurements as described in paragraph
▪
SETTING WHEEL DIMENSIONS .
CAUTION
S ETTING INCORRECT DIMENSIONS WOULD MEAN THAT THE MACHINE
IS NOT CORRECTLY CALIBRATED , T HEREFORE , ALL SUBSEQUENT
MEASUREMENTS WILL BE INCORRECT UNTIL CALIBRATION IS PER -
FORMED ONCE AGAIN WITH THE CORRECT DIMENSIONS .
Display the SETUP menu:
Press 1. to view the CALIBRATION
function.
Setup
