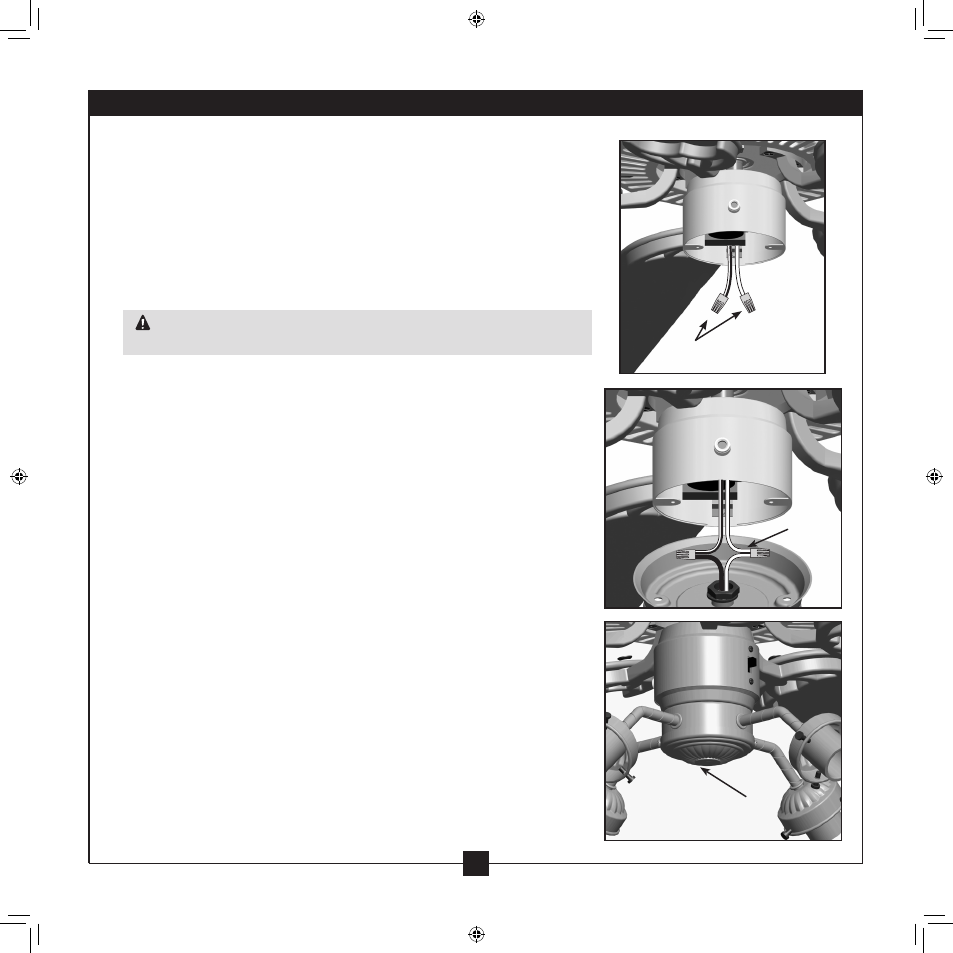

Installing the Light Kit on Fans With Non-Removable Switch Housing Cont.
Wire
Connectors
Step 5
5. Remove the wire connectors from the two wires in the switch housing
labeled “Connect Light Here” or “For Light Use.” One wire is white and the
other wire is black/white striped. To connect the wires, hold the bare metal
leads together and place a wire connector over them, then twist the wire
connector clockwise until tight.
Connect the black/white striped wire from the switch housing to the black
wire from the light kit. Connect the white wire from the switch housing
to the white wire from the light kit. Secure all wire connections using wire
connectors.
CAUTION: Be sure no bare metal wires or wire strands are visible after
making the connections.
6. Align the locator posts in the switch housing cover with the screw holes in
the switch housing.
7. Align the threaded screw holes in the switch housing cover with the
threaded holes in the switch housing and install two screws.
8. Reattach the pendant cover to the light kit using the screws you removed
earlier.
9. Go to the instructions for Installing the Bulbs, Chains, and Shades.
Wires
and Wire
connectors
Pendant
Cover
Steps 6-7
Step 8
