5
43558-01 • 05/18/09 • Hunter Fan Company
Installing the Light Kit on Fans With Removable Switch Housings (Continued)
Wire
Connector

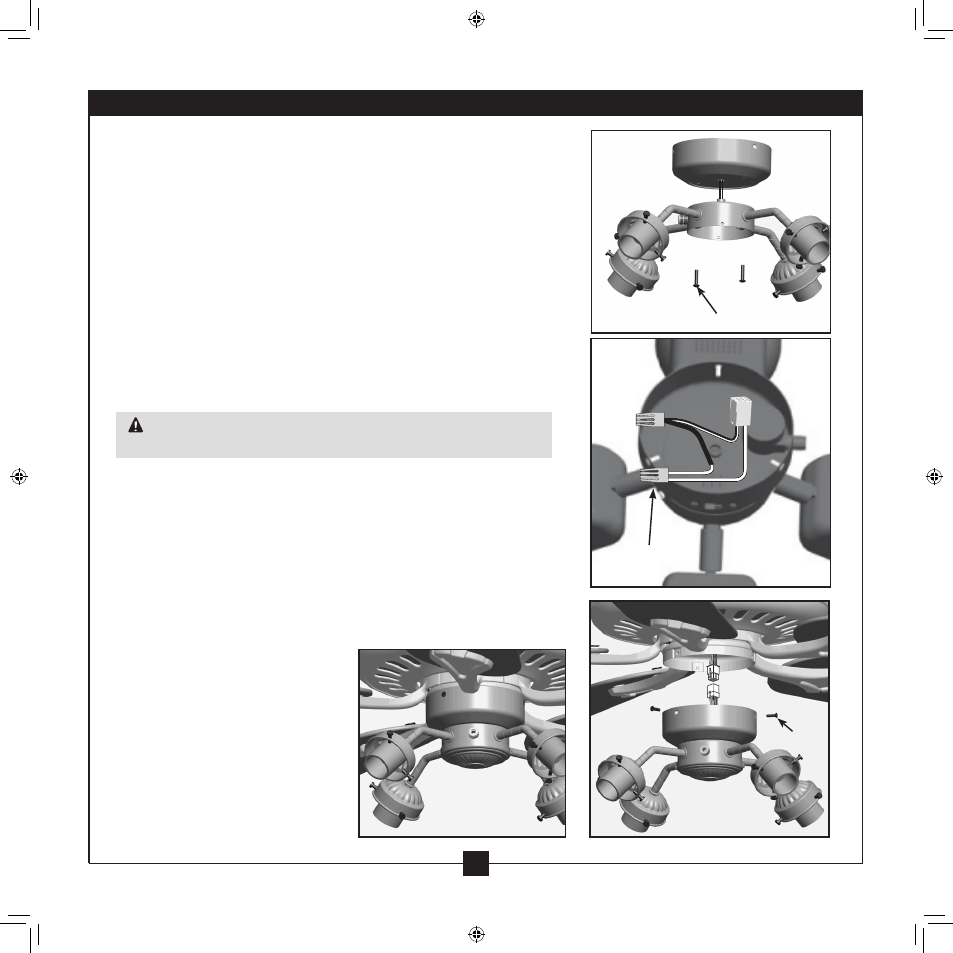

5. Finish attaching the light kit to the lower switch housing. Use the two
attachment screws removed from the lower switch housing and the
lock washers on the red tag. Partially install the screws into the light
kit and the housing. Rotate the housing counterclockwise until the
screws are locked into the narrow ends of the keyhole slots. Securely
tighten the two screws.
6. Remove the wire connectors from the two wires in the switch housing
labeled “Connect Light Here” or “For Light Use.”
To connect the wires, hold the bare metal leads together and place a
wire connector over them, then twist the wire connector clockwise
until tight. Connect the black/white striped wire from the switch
housing to the black wire from the light kit. Connect the white wire
from the switch housing to the white wire from the light kit. Secure all
wire connections using wire connectors.
CAUTION: Be sure no bare metal wires or wire strands are visible
after making the connections.
7. Reconnect the 9-pin plug connector.
8. Install screws to reattach the lower switch housing to the upper
switch housing. Reattach the decorative pendant cover to the light kit.
9. Go to the instructions for Installing the Bulbs, Chains, and Shades.
Attachment Screw
and Washer
Screw
Step 5
Step 6
Steps 7-8
