Slide, Place, Fold – Hunter 53078 42 Beacon Hill User Manual
Page 4: Option 1, Option 2, Mounting options
www.HunterFan.com
1.888.830.1326
If you have an angled ceiling:
1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).
Guide Touches
BOTH Ceiling & Wall
SI
TU
AT
IO
N 1
Guide Touches Wall
but
NOT Ceiling
SI
TU
AT
IO
N 2
You need BOTH
a Longer
Downrod &
an Angled
Mounting Kit
You need ONLY
a Longer
Downrod
*most common
If you have a flat ceiling:
Hang your fan by a standard downrod (included).

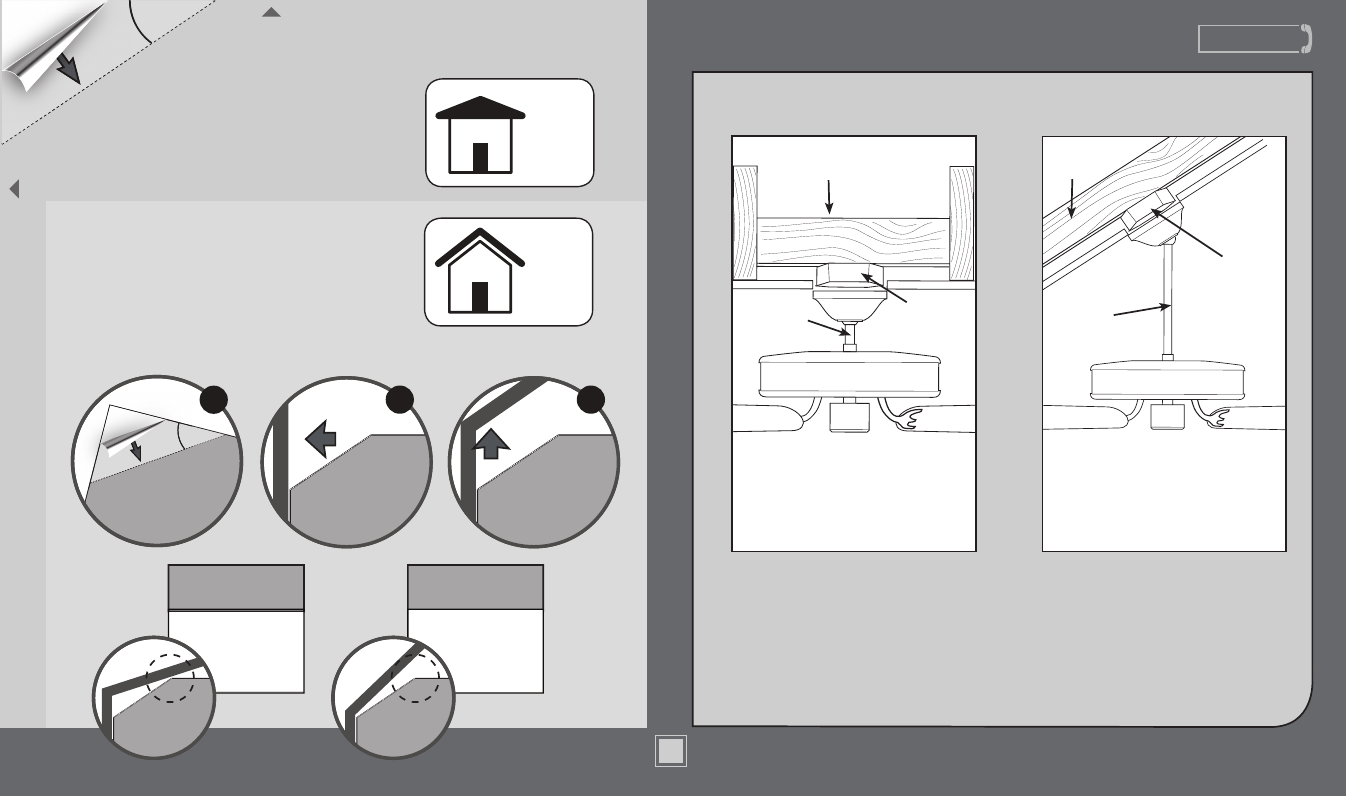

Mounting Options
Use Standard Mounting
or Low-Profile Mounting
to hang the fan from a flat ceiling.
Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.
34
O
CEILING
WA
LL
OPTION
1
Standard
Mounting
OPTION
2
Angled
Mounting
2
3
SLIDE
toward ceiling
PLACE
against wall
1
FOLD
on dotted line
34°
Use the three steps below to determine if your ceiling angle is greater than 34°
Support
Structure
Ceiling
Outlet Box
(required)
Angled
Mounting
Style
Standard
Mounting
Style
Support
Structure
Ceiling
Outlet Box
(required)
4
