Operating Instructions

Always use eye protection when operating power equipment.

Your 30 Express was designed for boring both European type 32mm panels
and American Face Frame type cabinet construction. Since the distance
between the Bits is only critical for European style panels, your drill is using
32mm increments center to center between drill bits and will drill 5mm
diameter holes. This hole placement should not effect American style panels.

Note: Your 30 Express Line Boring Machine will shut off automatically in 2
minutes and 40 seconds if it is left running without use. Simply push the
green button to restart.

ƒ Plug your 30 Express Line Boring Machine into 220V single phase electrical

outlet. DO NOT use an extension cord!


ƒ Hook up the proper air supply and filtration. (3/8 line)

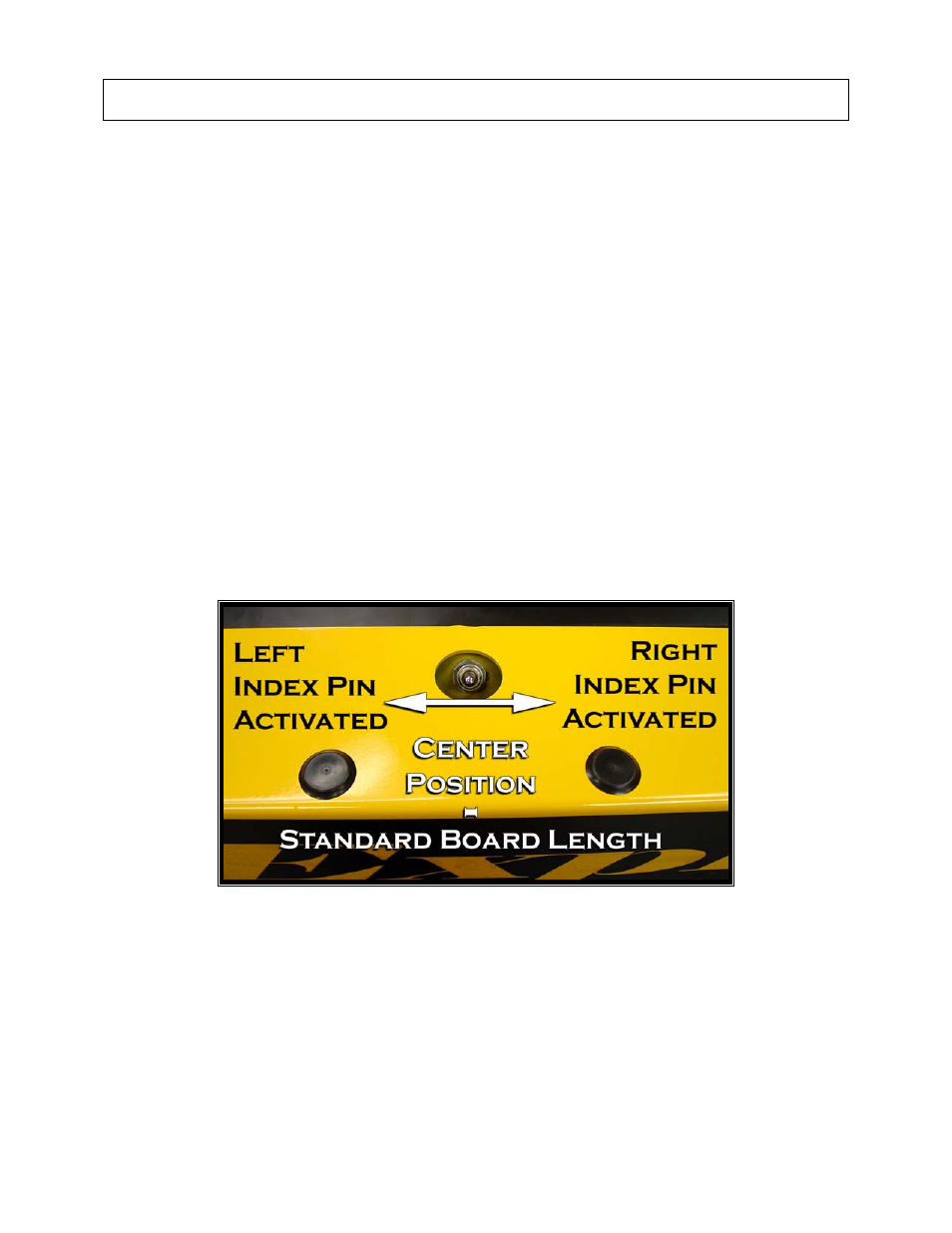

ƒ Set the Toggle Switch located on the Clamp Frame to the center or off position for

drilling standard panels.

Top View

ƒ Your machine is factory set for a cycle time of 2 ½ to 3 ½ seconds.

ƒ The Fence Drop Gauges have been factory set for Lower Panels of 24” depth and

Upper Panels of 12” depth.

Do not adjust these until you have read

the entire manual.


ƒ Always put your panels into the machine with the front edge leading into the

machine and the bottom edge indexed to the correct end of the Stop. Left Stop for
right hand panels and Right Stop for left hand panels.

6
