Machine Adjustments

Removing Bits for Standard Base Cabinet Panel Drilling

If you do not want holes to run off the top of the panel when drilling standard base

cabinet panel, you can remove the additional bits or Index earlier in the panel.

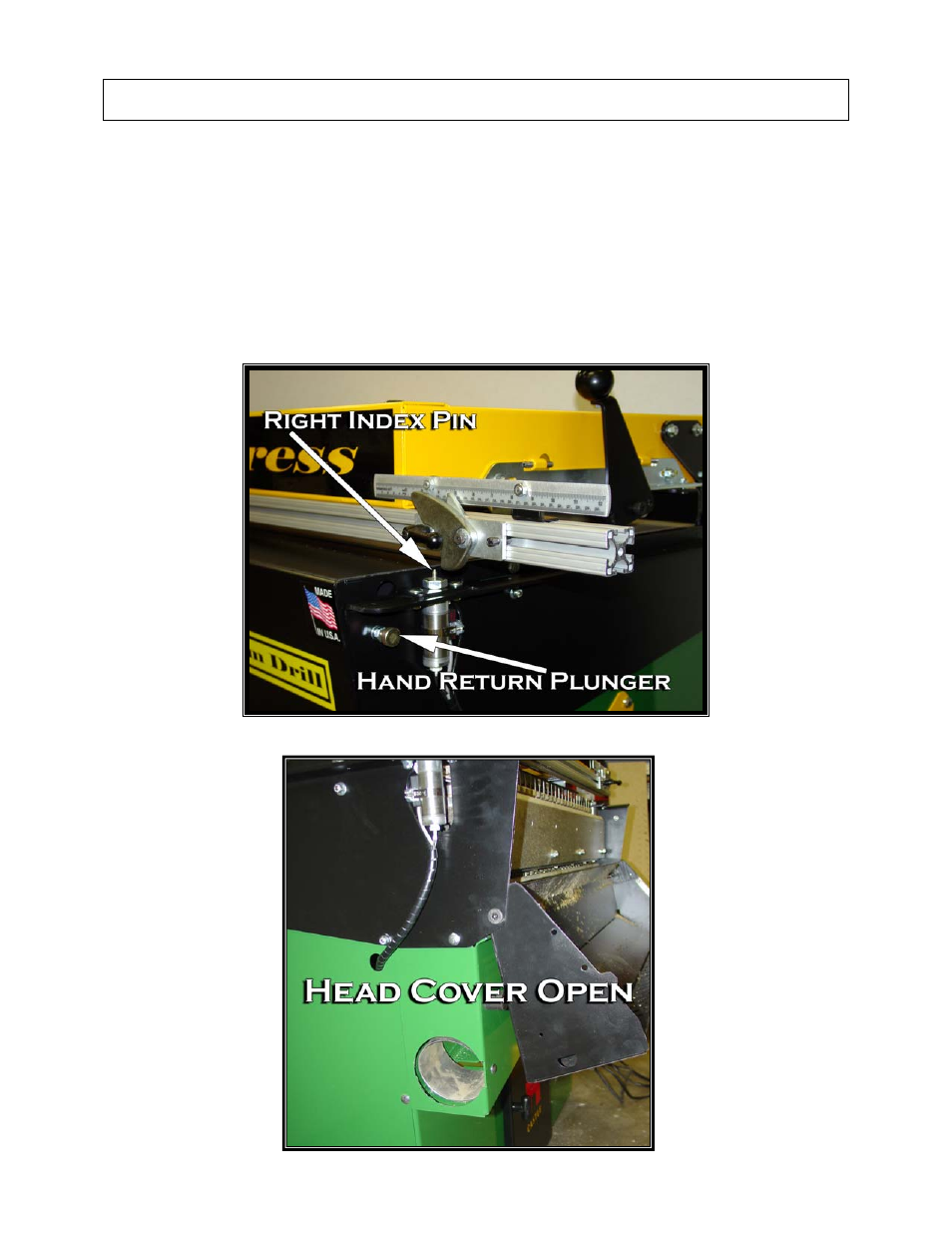

To remove bits, pull the hand return plunger on the right side of the black head

cover and swing the cover down. If the Plunger seems resistant to being pulled
out, push against the cover with your hip a bit to relieve the pressure on the pin.
