Castle 30 Express - Manual (Page 12)

Adjusting for Panel Width
ƒ The Auto Fence is set for 37mm from the center of the drilled 5mm hole to the
front edge of the panel. This is designed to accept European Cabinet Hardware.
(i.e., hinge plates and drawer slides.)
ƒ The Middle Fence behind the Front Auto-Fence can be adjusted forward or to the
rear, but only at 32mm increments.

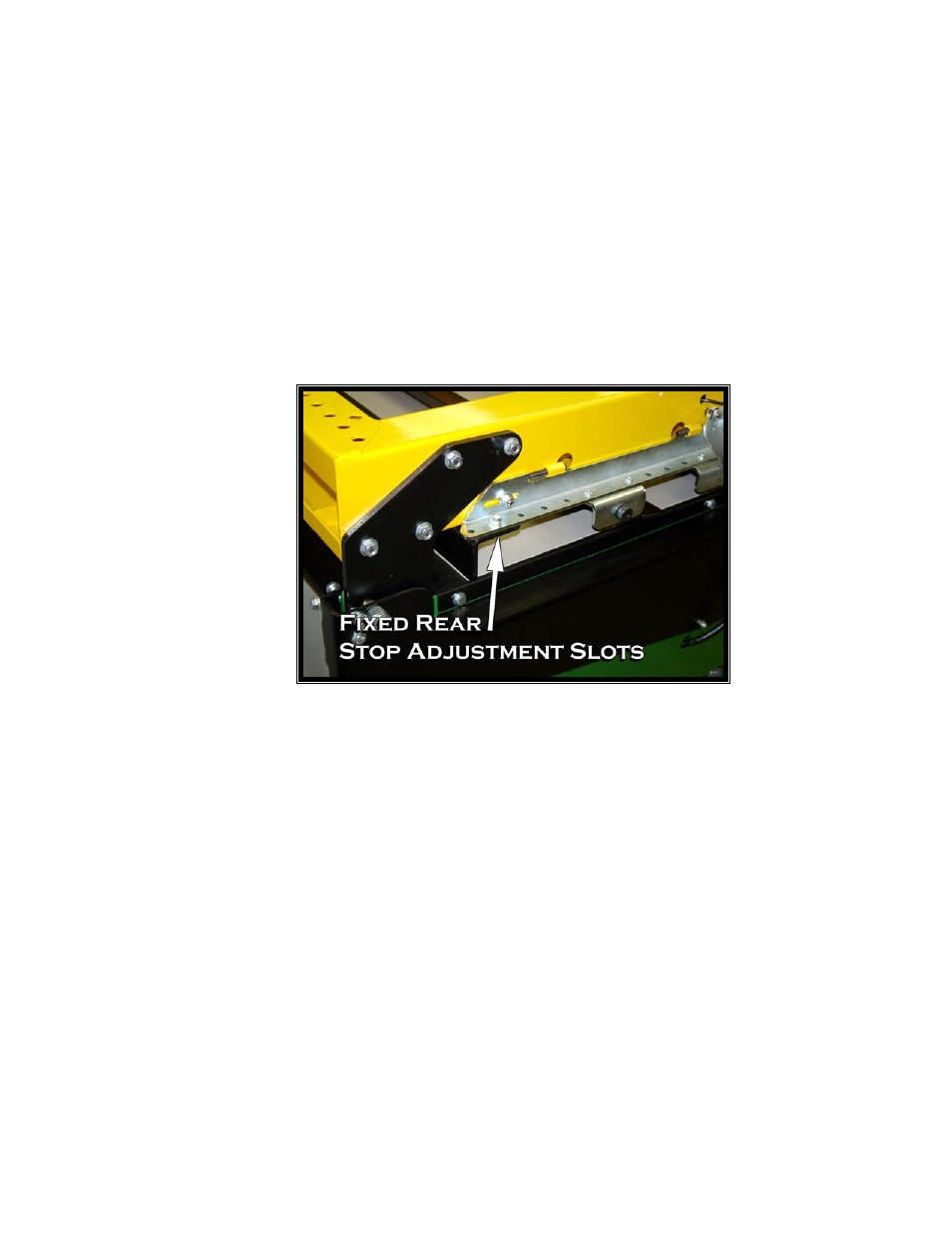

ƒ The Fixed Rear Stop has additional slotted adjustments and must be set separately.
Each adjustment hole on the side is in 32mm increments from the First Fence. The
plated angle bar that the Stops are attached to is slotted for fine tune adjustments.
Using Shims
Any adjusting for depths of panel outside the 32mm steps provided for, should be
shimmed from the preset stops.
ƒ Cut the Shim piece and set the Shim in front of the second or third Panel Stop or
fence.
ƒ Put your non-standard panel in the machine as usual and drill your holes in the
positions you desire. The panel will simply bump against the Shim instead of
directly against a Fence.
10
