Hole Depth

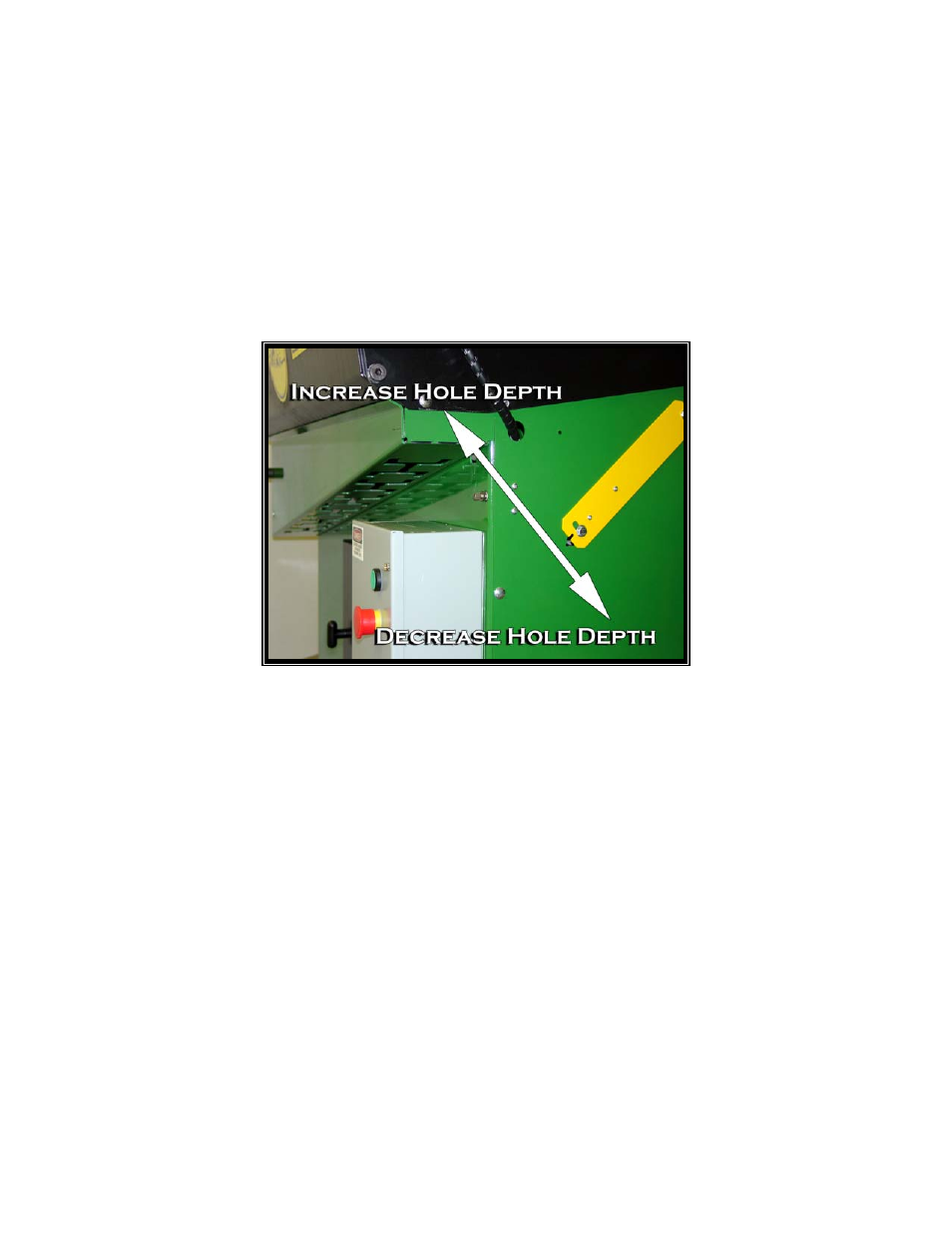

The depth of the holes is adjustable on the right side of the machine.

Using a 7/16” wrench, loosen the Hex Head Bolt that holds the lower end of the

yellow Drill Depth Bar and insert a screwdriver into the slot. Using the
screwdriver, move the bar up or down approximately 1/8” at a time. This will
adjust the depth of drilling.

Up movement on the bar increases the depth of holes while Down decreases the

depth of the holes.

Note: Moving the bar too far up or down will trigger a micro switch and keep the

machine from cycling properly. If this happens adjust in the reverse direction
slightly and try a test piece. This is a trial and error adjustment.
