C A T H O D E T 5 0 P R O D U C T D E T A I L S :
T50 is a low material cost, energy efficient cold cathode
lighting system. When comparing the data it out performs LED.
•228 Lumens per foot (compared to 82 LED)
•54.65 Lumens per watt (compared to 21.57 LED)
•Approx. 4 - 5 watts per foot
•Over 30 bright colors (compared to 8 LED)
•Full Range Dimming
•50,000 Hour Lamp Life
T50 Specifications
60mA Secondary
(1) For 277V and HPF contact ACL.
(2) Use VA for computing loads. Use Watts for computing power consumption.
X
Y
Z
4.625”
17.625”
8.0”
Z
Y
X
Watts VA(2) AMPS Sec.V
292 540 4.5 9000
243 450 3.75 7500
162 300 2.5 5000
Product
(1) For a 1 lamp standard ballast system see B100. For a 2 lamp high output ballast system see B200.
(2) For multiple selections place a comma after each selection.
Standard Output
Cold Cathode System
60mA
T50
_
_
_
_
_
_
S01
(2)
DI - Dim
ND - Non Dim
S - Surface
Standard
Color (s)
Dim-able
Mount
Primary
Environment
120V
277V -Special
Order
Note: For a variation (custom) of this product contact ACL to request a variation number and information.
S P E C I F I C A T I O N C O D E :
DR - Dry
DP - Damp
WT - Wet (DB)
See Chart
(1)
S01
S
date: April 6, 2010 file: T50details.pdf page: 2 of 3

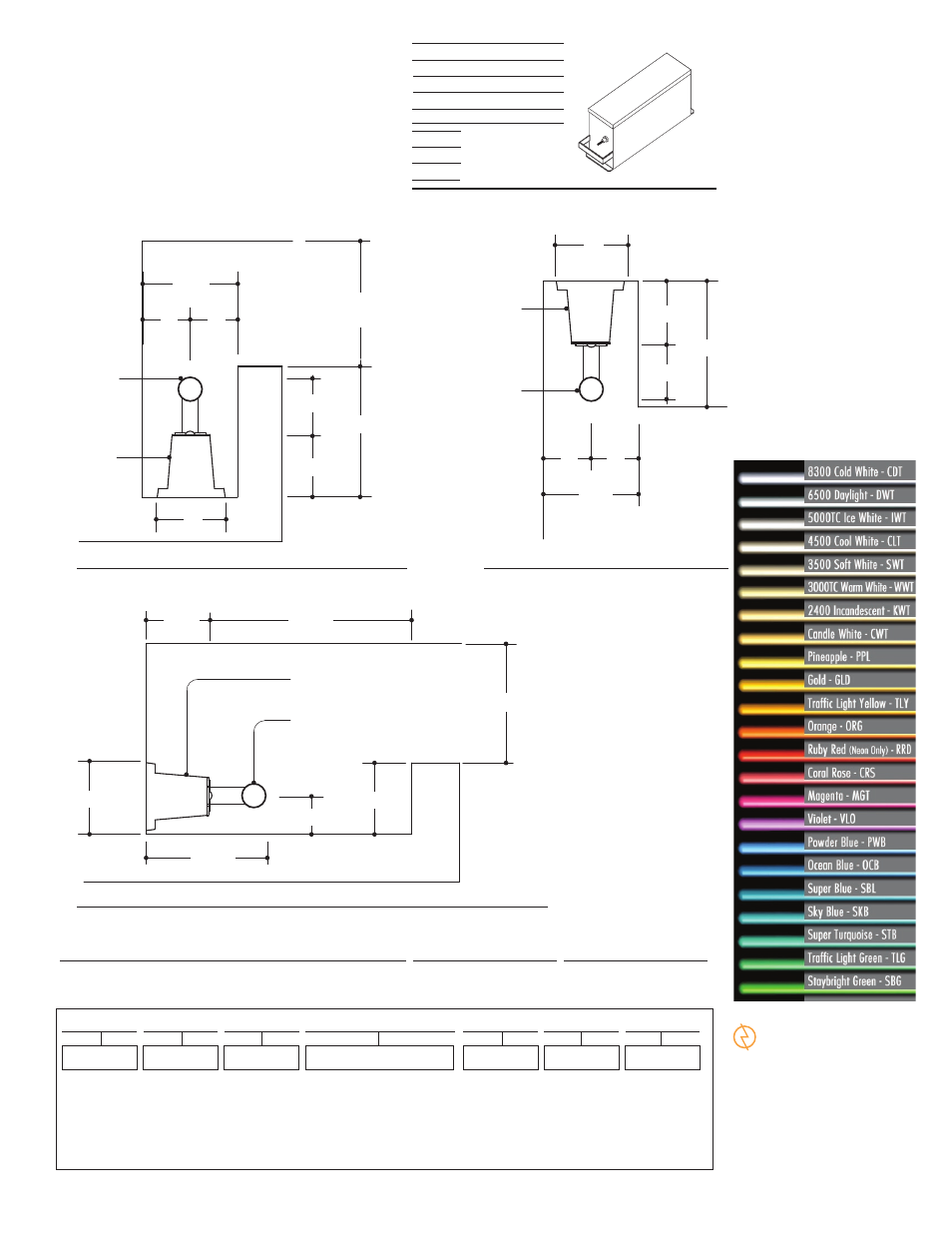

3"
4" Min.
EQ
EQ
25mm Cold
Cathode Lamp
2 1/2"
2 1/4"
5" Min.
3"
5"
2 1/2"
2 1/4"
4" Min.
EQ
EQ
25mm Cold
Cathode Lamp
T50 Surface
Lampholder
5" Min. Recommended
from 6" to 12"
T50 Surface
Lampholder
3"
4 3/4"
3"
5" Minimum
25MM Cold
Cathode Lamp
T50 Surface
Lampholder
8 1/2"
2 1/2"
1 5/8"
DR
120V
DI
