The Art and Science of Light
S P E C I F I C A T I O N S :
models:
CSm e50 and e100
primary power:
120V, 277V
compliance:
UL Listed
control:
Dimming compatible
fixture housing:
Clear anodized aluminum
dimensions:
2’ to 7‘6” and custom lengths
lamp color
(
s
)
:
See color chart on Details sheet
update:
April 6, 2012
F E A T U R E S :

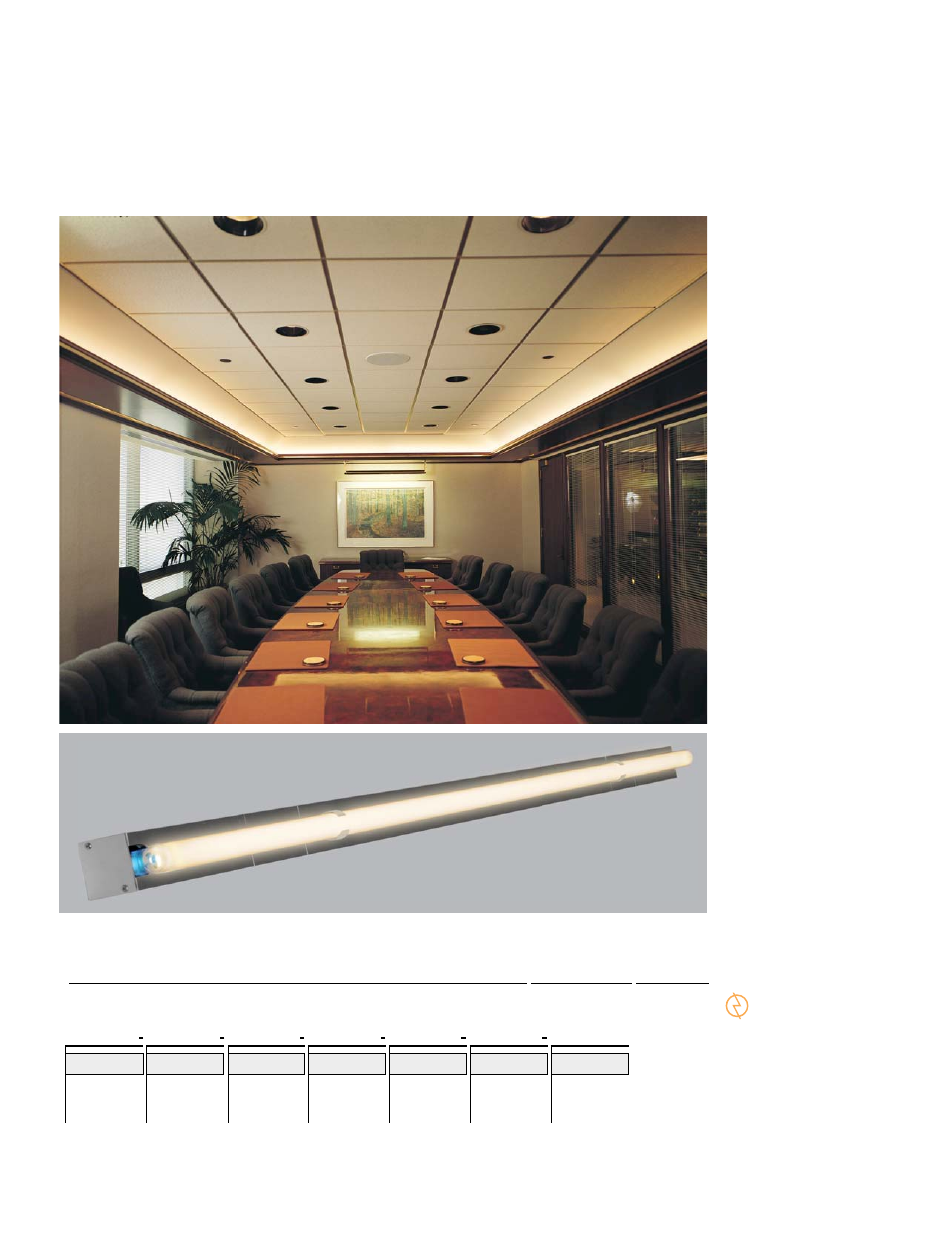

cSTRPmini offers standard and custom straight lamps with seamless, end-to-end illumination,
free from socket shadow. Using state of the art, silent, energy efficient electronic power
supplies, cSTRPmini are extremely more compact than traditional cold cathode systems.
cSTRPmini fixtures ship pre-wired and assembled for installation in minutes resulting in
significant labor savings. cSTRPmini features ACL’s new “Snap and Slide” extrusions for easy
access to lamps and ballasts. cSTRPmini can be daisy-chained using our pre-wired “Easy
Connect” system. Single lamp configurations are available in a wide range of colors.
Combining cSTRPmini with cCRVSmini allows for enhanced flexibility to fit any design solution.
Architectural Cathode Lighting, Incorporated
ACL INC.
c a t h o d e l i g h t i n g . c o m
5 3 0 1 P a c i f i c B o u l e v a r d
Huntington Park California 90255 USA
Telephone 323.581.8800
Fax 323.581.7971
i n f o @ c a t h o d e l i g h t i n g . c o m
cS
TRPmini
CUT SHEET
Project Name
Linear Feet Qty
Date
Product
cSTRPmini
Cold Cathode
CSm
_
_
_
_
_
_
(1)
DI - Dim
ND - Non Dim
S - Surface
Model
Color (s)
Dimming
Mount
Primary
Environment
120V
277V
Note: For a variation (custom) of this product contact ACL to request a variation number and information.
S P E C I F I C A T I O N C O D E :
DR - Dry
See Chart
DR
S
© 20
12
Ar
chitectural Cat
hode Lighting, Inc.
(1) e50 - Energy Saver, e100 - Standard Output. (2) For multiple selections place a comma after each selection.
e50 (1)
e100 (1)
CSm
DR
S
Product
Model
Environment
Color(s)
Primary
Dimming
Mount
cSTRPmini
e50
(1)
DR - Dry
See Color Chart
(2)
120V
2 - 2 Wire
(3)
S - Surface
Cold Cathode
e100
(1)
277V
3 - 3 Wire
(3)
(1)
e50 - Energy Saver, e100 - Standard Output.
(2)
For multiple colors place a comma after each selection.
(3)
Reverse phase low-voltage electronic dimmers are recommended for optimal performance.
Specifications subject to change without notice.
