S P E C I F I C A T I O N S :
models: CR2 e50, e100 and e200
primary power: 120V, 277V
compliance: UL Listed
control: Dimming compatible
fixture housing: Clear anodized aluminum
dimensions: 4’ to 7‘6” and custom lengths
lamp color ( s ) : See color chart on Details sheet
update: April 6, 2012
F E A T U R E S :

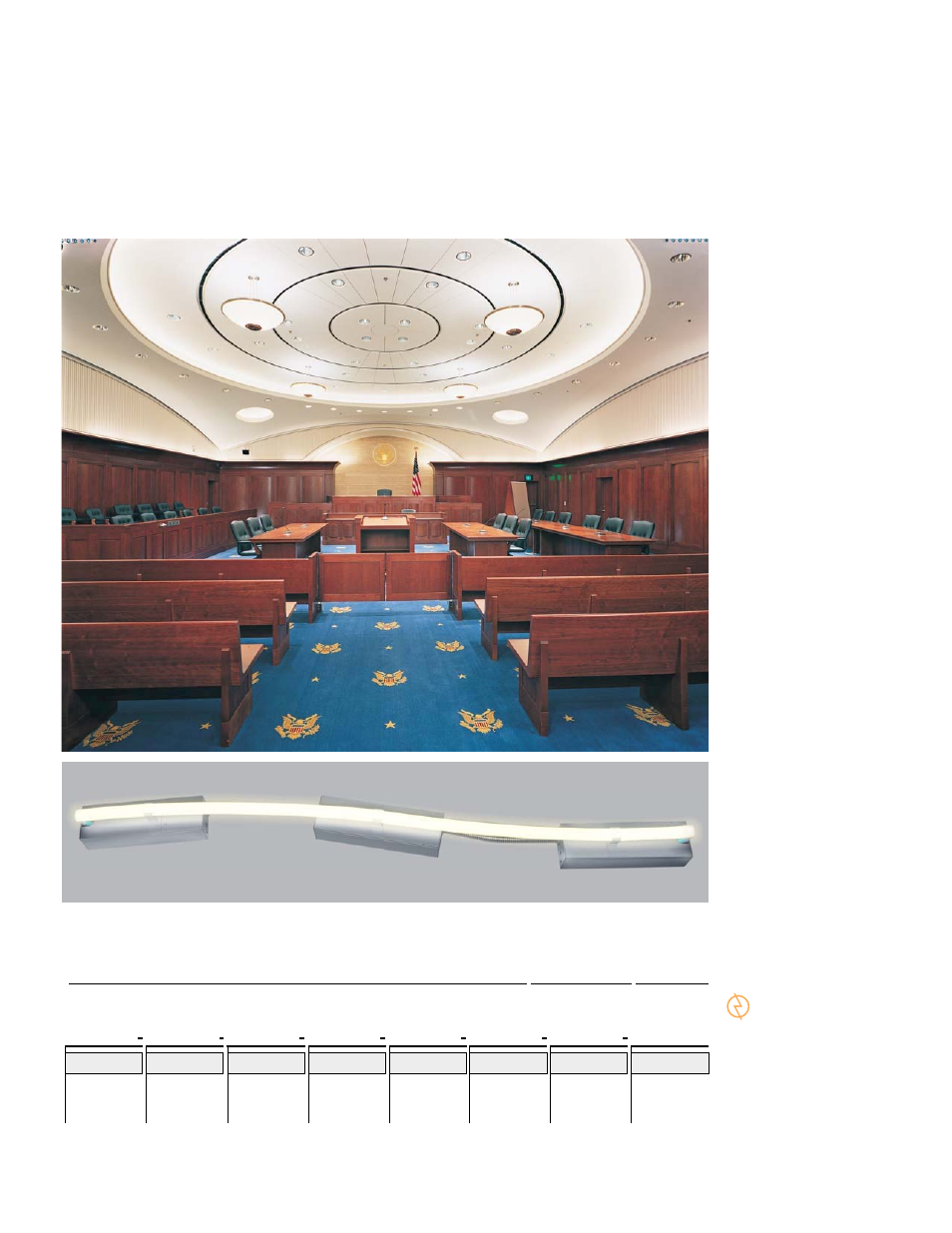

cCRVS 2.0 offers standard and custom curved lamps with seamless, end-to-end illumination,
free from socket shadow. Using state of the art, silent, energy efficient electronic power
supplies, cCRVS are shorter in height and more compact than traditional cold cathode systems.
cCRVS fixtures ship pre-wired and assembled for installation in minutes resulting in significant
labor savings. cCRVS 2.0 features ACL’s new “Snap and Slide” extrusions for easy access to
lamps and ballasts. cCRVS can be daisy-chained using trade size KOs for continuous pass-thru
of electrical conductors in conjunction with standard electrical fittings and connectors.
Configurations with single or double lamps are available in a wide range of colors. Combining
cSTRP with cCRVS allows for enhanced flexibility to fit any design solution.
Architectural Cathode Lighting, Incorporated
ACL INC.
c a t h o d e l i g h t i n g . c o m
5 3 0 1 P a c i f i c B o u l e v a r d
Huntington Park California 90255 USA
Telephone 323.581.8800
Fax 323.581.7971
i n f o @ c a t h o d e l i g h t i n g . c o m
cCRV
S 2.0
CUT SHEET
Product
(1) e50 - Energy Saver, e100 - Standard Output, e200 - High Output. (2) Lamps per fixture.
(3) For multiple selections place a comma after each selection. (4) 3 Wire applications are available, contact ACL for technical information.
cCRVS 2.0
Cold Cathode
CR2
_ _ _ _ _ _ _
e50 (1)
e100 (1)
e200 (1) (3)
2 - 2 Wire
3 - 3 Wire (4) S - Surface
Model Color (s) Dimming Mount Primary Environment
120V
277V
Note: For a variation (custom) of this product contact ACL to request a variation number and information. S P E C I F I C A T I O N C O D E :
DR - Dry See Details
DR
Lamp Qty
1 - 1 Lamp
2 - 2 Lamp
(2)
S
© 20
12
Ar
chitectural Cat
hode Lighting, Inc.
Project Name Linear Feet Qty Date
CR2 DR S
Product Model Lamp Qty Environment Color(s) Primary Dimming Mount
cCRVS 2.0 e50 (1) 1 - 1 Lamp DR - Dry See Color Chart (3) 120V 2 - 2 Wire (4) S - Surface
Cold Cathode e100 (1) 2 - 2 Lamp (2) 277V 3 - 3 Wire( 4)
e200 (1)
(1) e50 - Energy Saver, e100 - Standard Output, e200 - High Output. (2) Lamps per fixture.
(3) For multiple colors place a comma after each selection. (4) Reverse phase low-voltage electronic dimmers are recommended for optimal performance.
Specifications subject to change without notice.
