Page 4
ASM010 Manual Revised 6.22.2004
Connections

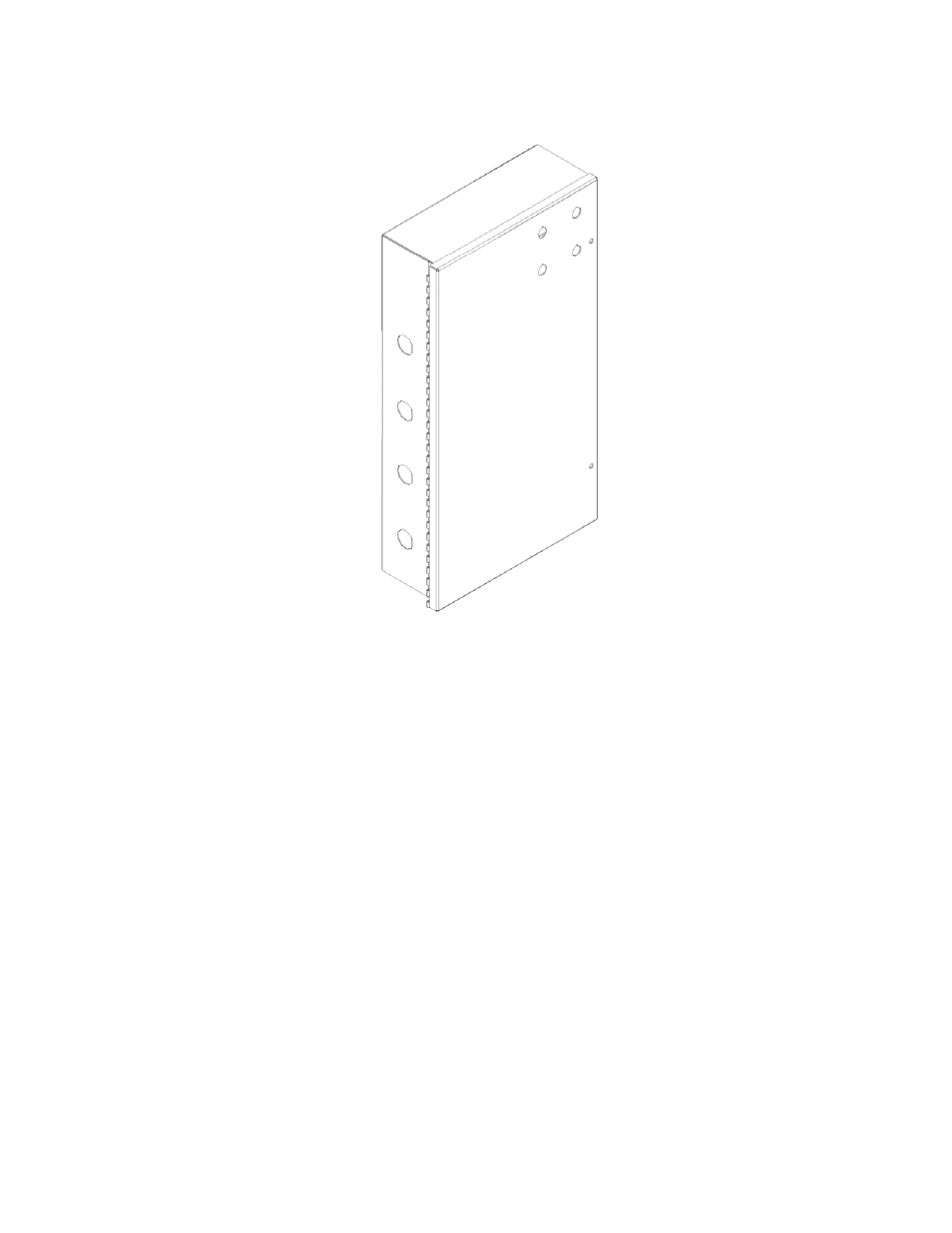

Figure 2: Front View Panel and Left Side Connection
The supply connections are labeled as follows (from top to bottom):
Chiller Water Return: Connection to chilled water return fitting on chiller.
Supply Water Outlet: This is to be plumbed to a drain.
Chilled Water Discharge: Connection to chilled water discharge fitting on chiller.
Supply Water Outlet: This is to be plumbed to a pressurized water line.
Chiller Return
Alternate Drain
Chiller Supply
Alternate Supply
