MoTeC
Appendices
59
PC Connection

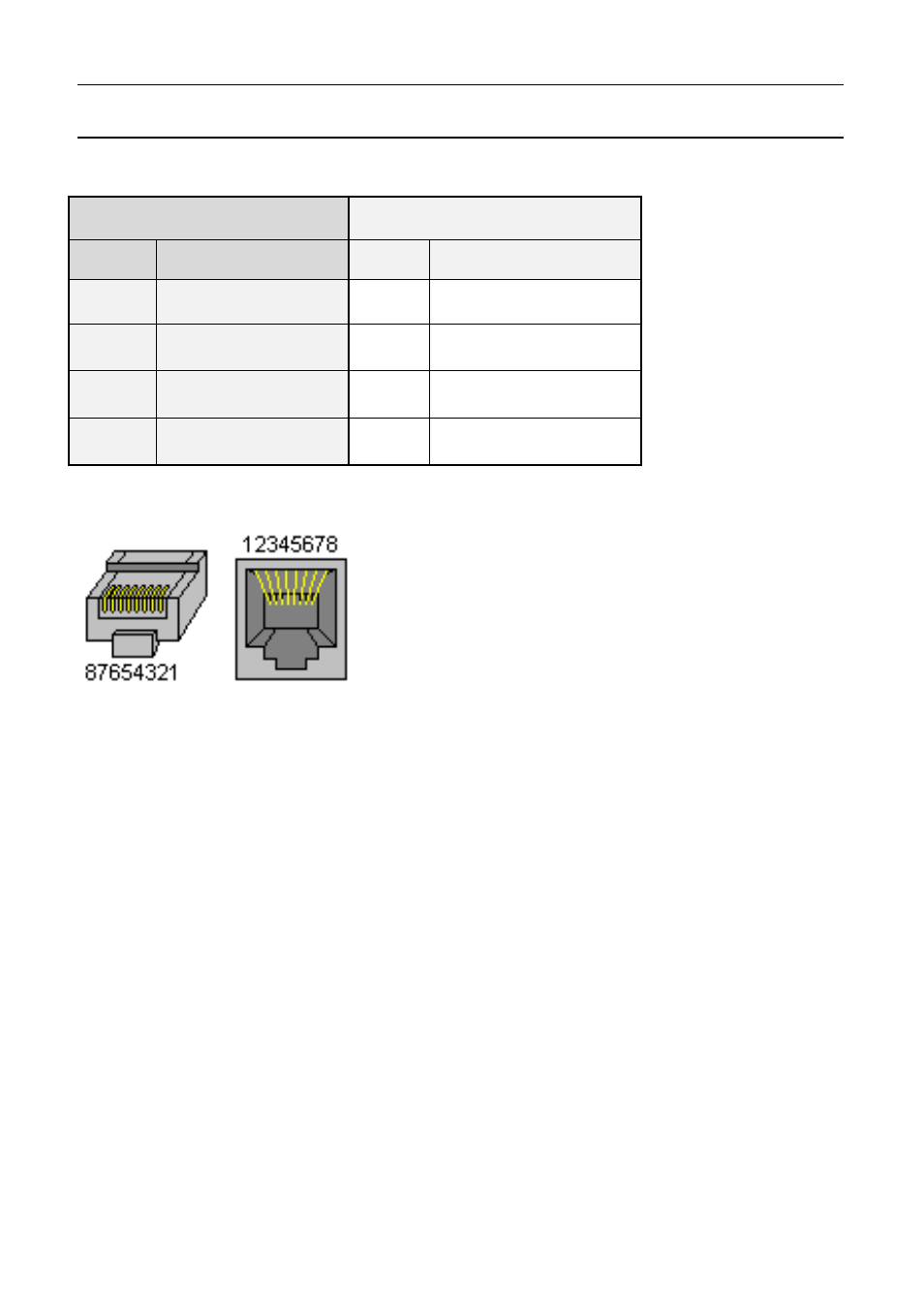

Ethernet Wiring Schematic:
ADL3 / C185
Ethernet Connector pin
Pin
Function
Pin
Function
77
Ethernet RX +
1
Ethernet TX +
78
Ethernet RX –
2
Ethernet TX –
67
Ethernet TX +
3
Ethernet RX +
68
Ethernet TX –
6
Ethernet RX –
Pin numbering
Plug
Socket
Wire
CAT5 UTP Ethernet cable
Cable
An Ethernet RJ45 socket, connecting to a standard Ethernet cable, is
provided on:
• #62207 C185 loom incorporating
• #61131 Ethernet cable, unterminated, 2 meter
• #61132 Ethernet to Autosport pins cable, 1.8 m
